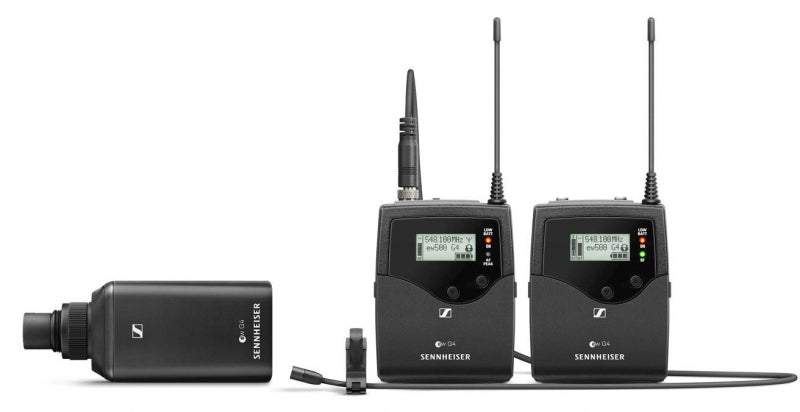

Sennheiser EW 500 FILM G4 (Aw+: 470-558 MHz)

The professional's choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.

Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

• Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

• Professional sound and excellent construction quality

• Easy to use and fast setup time

• Easy and flexible wireless synchronisation between transmitter and receiver via infrared

• Up to 88 MHz bandwidth, up to 32 channels

• Range: up to 100 meters / 330 feet

• Increased RF output power (10/30/50 mW)

• Up to 8 hours of operation time

• With 48 V phantom powering

EK 500 G4:

FREQUENCY RANGE:

Aw+: 470-558 MHz

DIMENSIONS:

Approx. 82 x 64 x 24 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

(incl. batteries) approx. 130 g

AUDIO OUTPUT:

3.5 mm jack socket: +17 dBu (mono, balanced)

SIGNAL-TO-NOISE RATIO:

Line: 110 dBAPhones: approx. 90 dBA

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION:

at nominal voltage: typ. 140 mA with receiver switched off: 25 µA

ADJACENT CHANNEL REJECTION:

Typically 65 dB

INTERMODULATION ATTENUATION:

Typically 65 dB

POWERING:

3 V battery / 2.4 V rechargeable battery

RECEIVING FREQUENCY:

• Max. 3520 receiving frequencies

• adjustable in 25 kHz steps 20 frequency banks

• each with up to 32 factory-preset channels

• no intermodulation 6 frequency banks with up to 32 programmable channels

RF SENSITIVITY:

< 1.6 V for 52 dBA eff S/N

SQUELCH:

low: 5 dBµV middle: 15 dBµV high: 25 dBV

TEMPERATURE RANGE:

-10 C to +55 C

RECEIVER PRINCIPLE:

Adaptive diversity

BLOCKING:

70 dB

SKP 500 G4:

FREQUENCY RANGE:

Aw+: 470-558 MHz

DIMENSIONS:

Approx. 105 x 43 x 43 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

(incl. batteries) approx. 195 g

SIGNAL-TO-NOISE RATIO:

120 dBA

RF OUTPUT POWER:

switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION:

• at nominal voltage: typ. 210 mA

• with transmitter switched off: 25 µA

INPUT IMPEDANCE:

68 k, unbalanced

MAX. INPUT VOLTAGE:

6 Veff

POWERING:

3 V battery / 2.4 V rechargeable battery

TRANSMISSION FREQUENCY:

• Max. 3520 frequencies

• adjustable in 25 kHz steps 20 frequency banks

• each with up to 32 factory-preset channels

• no intermodulation 6 frequency banks with up to 32 programmable channels

AF FREQUENCY RESPONSE:

80 - 18,000 Hz

TEMPERATURE RANGE:

-10 C to +55 C

FREQUENCY STABILITY:

±15 ppm

SK 500 G4:

DIMENSIONS:

Approx. 82 x 64 x 24 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

(incl. batteries) approx. 160 g

SIGNAL-TO-NOISE RATIO:

115 dBA

RF OUTPUT POWER (SWITCHABLE):

• Low: typ. 10 mW

• Standard: typ. 30 mW

• High: typ. 50 mW

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION:

• at nominal voltage: typ. 180 mA

• with transmitter switched off: 25 µA

INPUT IMPEDANCE:

40 k, unbalanced / 1 M

MAX. INPUT VOLTAGE:

3 Veff

POWERING:

3 V battery / 2.4 V rechargeable battery

TRANSMISSION FREQUENCY:

• Max. 3520 frequencies

• Adjustable in 25 kHz steps

• 20 frequency banks

• each with up to 32 factory-preset channels

• No intermodulation

• 6 frequency banks with up to 32 programmable channels

AF FREQUENCY RESPONSE:

Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz

TEMPERATURE RANGE:

-10 C to +55 C

FREQUENCY STABILITY:

±15 ppm

MKE 2:

CONNECTOR:

3.5 mm jack

FREQUENCY RESPONSE:

20 to 20.000 Hz ± 3 dB

MAX. SOUND PRESSURE LEVEL:

142 dB

CABLE LENGTH:

approx. 1.60 m

TRANSDUCER PRINCIPLE:

pre-polarized condensor microphone

PICK-UP PATTERN:

omni-directional

SENSITIVITY IN FREE FIELD, NO LOAD (1KHZ):

5 mV/Pa, ± 3 dB

EQUIVALENT NOISE LEVEL:

26 dB

EQUIVALENT NOISE LEVEL WEIGHTED AS PER CCIR 468-3:

39 dB
