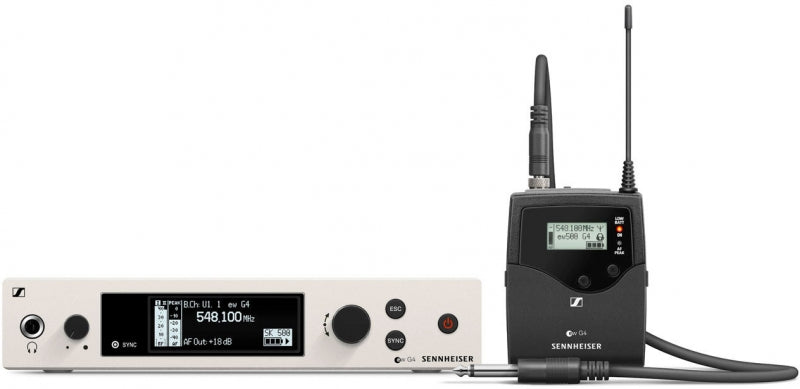

Sennheiser EW 500 G4-Ci1 (Aw+: 470-558 MHz)

Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups. The pro's choice for perfectly balanced but upfront guitar and bass. Powerful bodypack transmitter and Ci1 instrument cable for unforgettable performances.

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

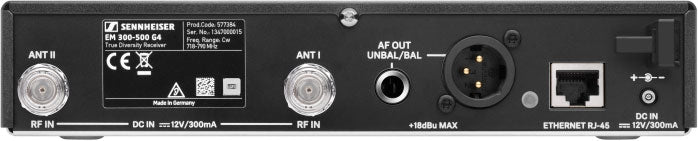

EM 300-500 G4:

FREQUENCY RANGE:

Aw+: 470-558 MHz

DIMENSIONS:

Approx. 202 x 212 x 43 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

Approx. 980 g

AUDIO OUTPUT:

6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu

SIGNAL-TO-NOISE RATIO:

115 dBA

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

MODULATION:

Wideband FM

POWER SUPPLY:

12 V DC

ANTENNA CONNECTOR:

2 BNC sockets

CURRENT CONSUMPTION:

350 mA

ADJACENT CHANNEL REJECTION:

Typically 75 dB

INTERMODULATION ATTENUATION:

Typically 70 dB

RECEIVING FREQUENCY:

• Max. 3520 receiving frequencies

• adjustable in 25 kHz steps

• 20 frequency banks

• each with up to 32 factory-preset channels

• no intermodulation

• 6 frequency banks with up to 32 programmable channels

RF SENSITIVITY:

< 2.5 V for 52 dBA eff S/N

SQUELCH:

5 to 25 dBV in steps of 2 dB

EQUALIZER:

• Preset 1: Flat

• Preset 2: Low Cut (-3 dB at 180 Hz)

• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

• Preset 4: High Boost (+6 dB at 10 kHz)

TEMPERATURE RANGE:

-10 C to +55 C

RECEIVER PRINCIPLE:

True diversity

BLOCKING:

75 dB

SK 500 G4:

FREQUENCY RANGE:

Aw+: 470-558 MHz

DIMENSIONS:

Approx. 82 x 64 x 24 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

(incl. batteries) approx. 160 g

SIGNAL-TO-NOISE RATIO:

115 dBA

RF OUTPUT POWER (SWITCHABLE):

• Low: typ. 10 mW

• Standard: typ. 30 mW

• High: typ. 50 mW

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION:

• at nominal voltage: typ. 180 mA

• with transmitter switched off: 25 µA

INPUT IMPEDANCE:

40 k, unbalanced / 1 M

MAX. INPUT VOLTAGE:

3 Veff

POWERING:

3 V battery / 2.4 V rechargeable battery

TRANSMISSION FREQUENCY:

• Max. 3520 frequencies

• Adjustable in 25 kHz steps

• 20 frequency banks

• each with up to 32 factory-preset channels

• No intermodulation

• 6 frequency banks with up to 32 programmable channels

AF FREQUENCY RESPONSE:

Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz

TEMPERATURE RANGE:

-10 C to +55 C

FREQUENCY STABILITY:

±15 ppm
