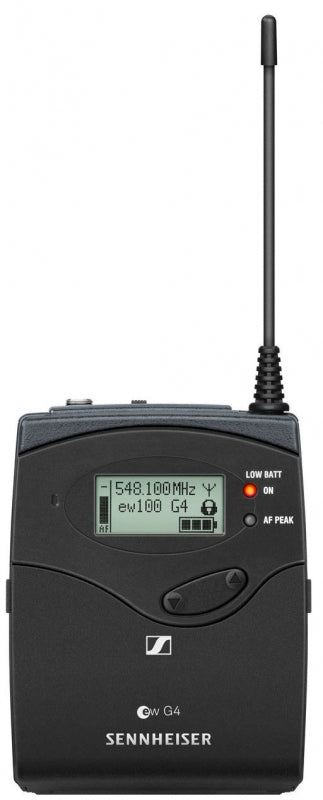

Sennheiser SK 100 G4 (A: 516-558 MHz)

FREQUENCY RANGE A 516-558 MHZ:

DIMENSIONS:

Approx. 82 x 64 x 24 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT (INCL. BATTERIES):

approx. 160 g

SIGNAL-TO-NOISE RATIO:

110 dBA

RF OUTPUT POWER:

Max. 30 mW

SWITCHING BANDWIDTH:

up to 42 MHz

PEAK DEVIATION :

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION AT NOMINAL VOLTAGE:

typ. 180 mA

WITH TRANSMITTER SWITCHED OFF:

25 µA

INPUT IMPEDANCE:

40 k, unbalanced / 1 M

MAX. INPUT VOLTAGE:

3 Veff

POWERING:

3 V battery / 2.4 V rechargeable battery

TRANSMISSION FREQUENCY:

• Max. 1680 transmitting frequencies

• Adjustable in 25 kHz steps 20 frequency banks

• Each with up to 12 factory-preset channels

• No intermodulation 1 frequency bank with up to 12 programmable channels

AF FREQUENCY RESPONSE:

• Mic: 80 - 18,000 Hz

• Line: 25 - 18,000 Hz

TEMPERATURE RANGE:

-10 C to +55 C

FREQUENCY STABILITY:

±15 ppm
