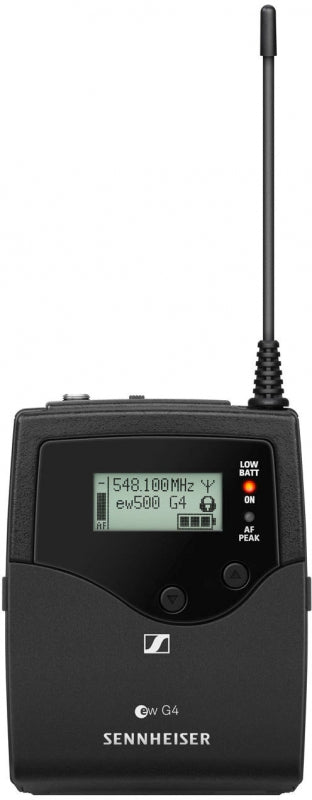

Sennheiser SK 500 G4 (Aw+: 470-558 MHz)

For evolution wireless G4 500 Series systems.

• Powerful bodypack transmitter with increased bandwidth and transmission power

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

FREQUENCY RANGE:

Aw+: 470 - 558 MHz

DIMENSIONS:

Approx. 82 x 64 x 24 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

0.9 %

WEIGHT:

(incl. batteries) approx. 160 g

SIGNAL-TO-NOISE RATIO:

115 dBA

RF OUTPUT POWER (SWITCHABLE):

• Low: typ. 10 mW

• Standard: typ. 30 mW

• High: typ. 50 mW

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION:

• at nominal voltage: typ. 180 mA

• with transmitter switched off: 25 A

INPUT IMPEDANCE:

40 k, unbalanced / 1 M

MAX. INPUT VOLTAGE:

3 Veff

POWERING:

3 V battery / 2.4 V rechargeable battery

TRANSMISSION FREQUENCY:

• Max. 3520 frequencies

• adjustable in 25 kHz steps

• 20 frequency banks

• each with up to 32 factory-preset channels

• no intermodulation

• 6 frequency banks with up to 32 programmable channels

AF FREQUENCY RESPONSE:

Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz

TEMPERATURE RANGE:

-10 C to +55 C

FREQUENCY STABILITY:

±15 ppm

WHAT'S IN THE BOX:

• SK 500 G4 bodypack transmitter

• 2 AA batteries

• pouch

• quick guide

• safety guide

• manufacturer declaration sheet
