Sennheiser SKM 500 G4 (GW1: 558-608 MHz)

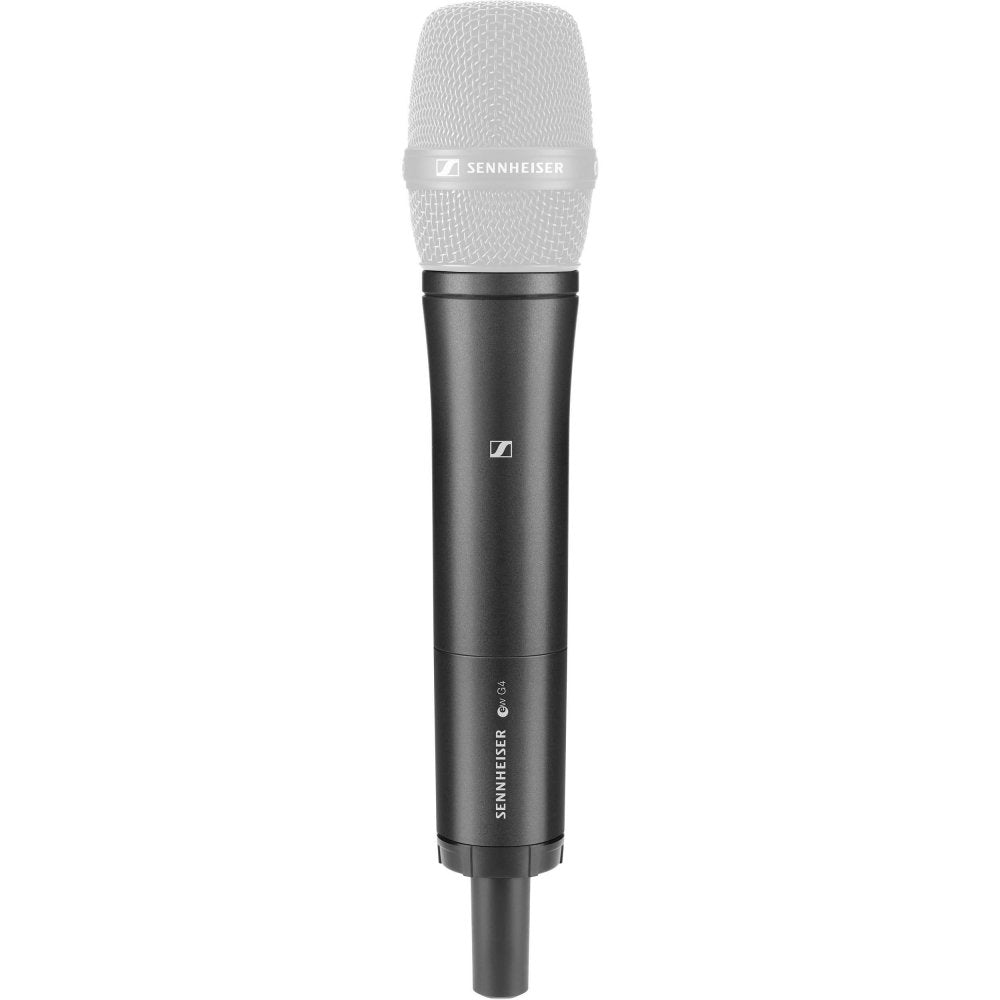

Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world's biggest live stages. For evolution wireless G4 500 Series systems.

• Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

FREQUENCY RANGE:

Gw1: 558 - 608 MHz

DIMENSIONS:

Approx. Ø 50 x 265 mm

COMPANDER:

Sennheiser HDX

THD, TOTAL HARMONIC DISTORTION:

≤ 0.9 %

WEIGHT:

(incl. batteries) approx. 450 g

SIGNAL-TO-NOISE RATIO:

≥ 115 dBA

RF OUTPUT POWER:

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

SWITCHING BANDWIDTH:

up to 88 MHz

PEAK DEVIATION:

±48 kHz

NOMINAL DEVIATION:

±24 kHz

OPERATING TIME:

Typically 8 h

MODULATION:

Wideband FM

POWER SUPPLY:

2 AA batteries, 1.5 V or BA 2015 accupack

CURRENT CONSUMPTION:

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 μA

POWERING:

3 V battery / 2.4 V rechargeable battery

TRANSMISSION FREQUENCY:

Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF FREQUENCY RESPONSE:

80 " 18,000 Hz

TEMPERATURE RANGE:

-10 C to +55 C

FREQUENCY STABILITY:

≤ ±15 ppm
