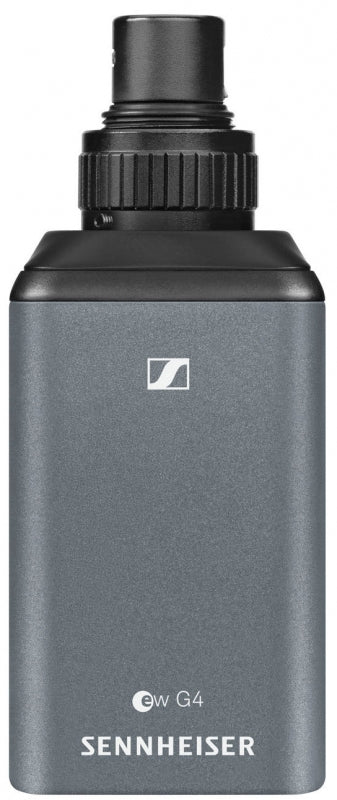

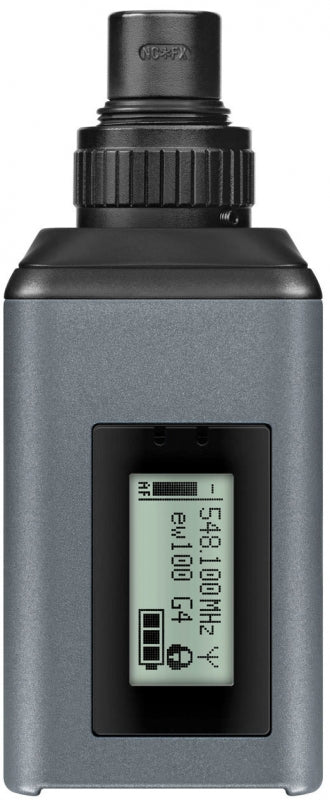

Sennheiser SKP 100 G4-G

• Powerful camera receiver, easily mounted on any kind of microphone

• Excellent sound and construction quality

• Easy to use and fast setup time

• Powerful and reliable wireless transmission

• Range: up to 100 meters / 330 feet

• Up to 8 hours of operation time

• Frequency range: G: 566 - 608 MHz

• Dimensions: Approx. 105 x 43 x 43 mm

• Compander: Sennheiser HDX

• THD, total harmonic distortion: 0.9 %

• Weight: (incl. batteries) approx. 195 g

• Signal-to-noise ratio: 110 dBA

• RF output power: Max. 30 mW

• Switching bandwidth: up to 42 MHz

• Peak deviation: ±48 kHz

• Nominal deviation: ±24 kHz

• Operating time: Typically 8 h

• Modulation: Wideband FM

• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

• Current consumption at nominal voltage: typ. 180 mA

• with transmitter switched off: 25 µA

• Input impedance: 68 k, unbalanced

• Max. Input voltage: 3.3 Veff

• Powering: 3 V battery / 2.4 V rechargeable battery

• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• AF frequency: response 80 - 18,000 Hz

• Temperature Range: -10 C to +55 C

• Frequency stability: ±15 ppm
