Sennheiser XSW 1-ME2-A

The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

• Compact bodypack transmitter, unobstrusive clip-on microphone

• Antenna-switching diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

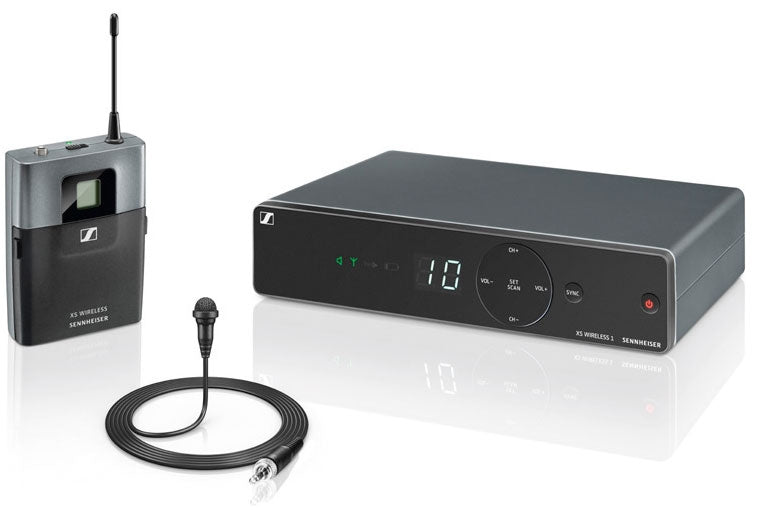

What's in the box

• 1 receiver EM-XSW 1

• 1 lavalier microphone ME 2-2

• 1 bodypack transmitter SK-XSW

• 1 power supply NT 12-5 CW

• 2 AA batteries

RECEIVERS:

• Dimensions: approx. 200 x 42 x 127 mm

• Weight: approx. 340g

• Power supply: 12 V DC nom. / 300 mA

• AF frequency response: 50 to 16,000 Hz (-3 dB)

TRANSMITTER:

• Dimensions: approx. 71 x 96 x 28 mm

• Weight: approx. 95g

• Power supply: 2 AA size batteries, 1.5 V

• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

MICROPHONE:

• Microphone: condenser

• THD, total harmonic distortion: 0.9%

• Pick-up pattern: omni-directional

• Signal-to-noise ratio: 103 dBA

• RF output power: 10 mW

• Switching bandwidth: up to 24 MHz

• Operating time: approx. 10 hrs

• Modulation: wideband FM

• Output voltage: '1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Housing: rugged ABS housing

• Diversity reception: antenna switching diversity via internal antennas

• Frequency: 8 frequency banks, each with up to 10 factory-preset channels

FREQUENCY RANGE:

• A: 548-572 MHz

• GB: 606-630 MHz

• B: 614-638 MHz

• C: 766-790 MHz

• D: 794-806 MHz

• E: 821-832 MHz, 863-865 MHz

• K: 925-937.5 MHz

WIRELESS:

• Sensitivity: < 3 V at 52 dB(A)rms S/N

• SPL for peak deviation: 130 dB

• Squelch: adjustable from 3 dBV to 28 dBV (combined with pilot tone)

• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Input sensitivity: 1.5 mV / Pa

• Audio adjustment range: 45 dB, adjustable in 5-dB steps

• Line / Mic level: 20 dB, switchable

• Temperature Range: operation 0C to +40C, storage: -20C to +70C

• Receiver Principle: double superheterodyne
