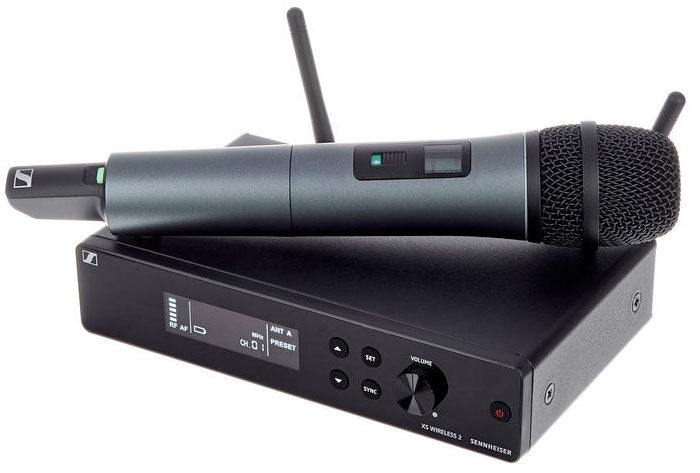

Sennheiser XSW 2-835

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser's renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via

• remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

WHAT'S IN THE BOX:

• 1 receiver EM-XSW 2

• 1 handheld transmitter SKM 835-XSW

• 1 microphone clamp MZQ 1

• 1 power supply NT 12-5 CW

• 2 AA batteries

• 1 rackmount kit

• 1 pouch

• user manual

RECEIVERS:

• Dimensions approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm

• Weight approx. 680g

• Power supply 12 V DC nom. / 300 mA

• Housing Metal, microphone: robust ABS

• AF frequency response: 50 to 16,000 Hz (-3 dB)

TRANSMITTER:

• Microphone: dynamic

• Frequency response: 50 to 16,000 Hz (-3 dB)

• THD, total harmonic distortion: 0.9%

• Pick-up: pattern cardioid

• Signal-to-noise ratio: 103 dBA

• RF output power: 10 mW

• Switching bandwidth: up to 24 MHz

• Operating time: approx. 10 hrs

• Modulation: wideband FM

• Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Frequency: 8 frequency banks, each with up to 12 factory-preset channels

FREQUENCY RANGE:

A: 548-572 MHz

GB: 606-630 MHz

B: 614-638 MHz

C: 766-790 MHz

D: 794-806 MHz

E: 821-832 MHz, 863-865 MHz

K: 925-937.5 MHz

• Sensitivity < 3 V at 52 dB(A)rms S/N

• Squelch switchable from 3 dBV to 28 dBV (via Pilot Tone)

• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Line: 20 dB, switchable

• Input sensitivity: 1.5 mV / Pa

• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

• Audio adjustment range: 40 dB, adjustable in 5-dB steps

• Temperature Range operation: 0C to +40C, storage: -20C to +70C

• Receiver Principle: double superheterodyne

• Diversity Principle: True Diversity

MICROPHONE:

• Weight: approx. 245g

• Power supply: 2 AA size batteries, 1.5 V

• AF frequency response: 80-14,000 Hz
