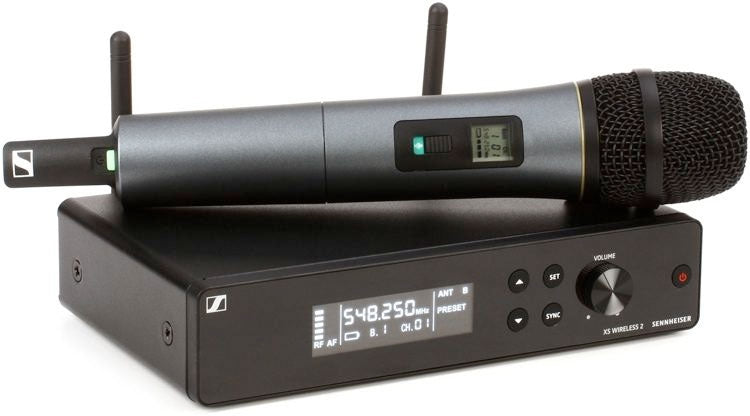

Sennheiser XSW 2-865

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser's renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via

• remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

WHAT'S IN THE BOX:

• 1 receiver EM-XSW 2

• 1 handheld transmitter SKM 865-XSW

• 1 microphone clamp MZQ 1

• 1 power supply NT 12-5 CW

• 2 AA batteries

• 1 rackmount kit

• 1 pouch

• User Manual

Dimensions: approx. 200 x 42 x 127 mm

Weight: approx. 680g

Power supply: 12 V DC nom. / 300 mA

Housing: metal, microphone: robust ABS

AF frequency response: 50 to 16,000 Hz (-3 dB)

MICROPHONE:

• Dimensions approx. 260 x 50 mm

• Weight approx. 245g

• Operating time approx. 10 hrs

• Power supply 2 AA size batteries, 1.5 V

• AF frequency response 80-16,000 Hz

Microphone: condenser

Frequency response: 50 to 16,000 Hz (-3 dB)

THD, total harmonic distortion: 0.9%

Pick-up pattern: super-cardioid

Signal-to-noise ratio : 103 dBA

RF output power: 10 mW

Switching bandwidth: up to 24 MHz

Modulation wideband: FM

Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Frequency 8 frequency banks, each with up to 12 factory-preset channels

Frequency range A: 548-572 MHz

GB: 606-630 MHz

B: 614-638 MHz

C: 766-790 MHz

D: 794-806 MHz

E: 821-832 MHz, 863-865 MHz

K: 925-937.5 MHz

Sensitivity: < 3 V at 52 dB(A)rms S/N

Squelch: switchable from 3 dBV to 28 dBV (via Pilot Tone)

Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity: 1.8 mV / Pa

Adjustment Range Transmitter: 0-3010

Audio adjustment range: 40 dB, adjustable in 5-dB steps

Line / Mic level: 20 dB, switchable

Temperature Range operation: 0C to +40C, storage: -20C to +70C

Receiver Principle: double superheterodyne

Diversity principle: True Diversity
