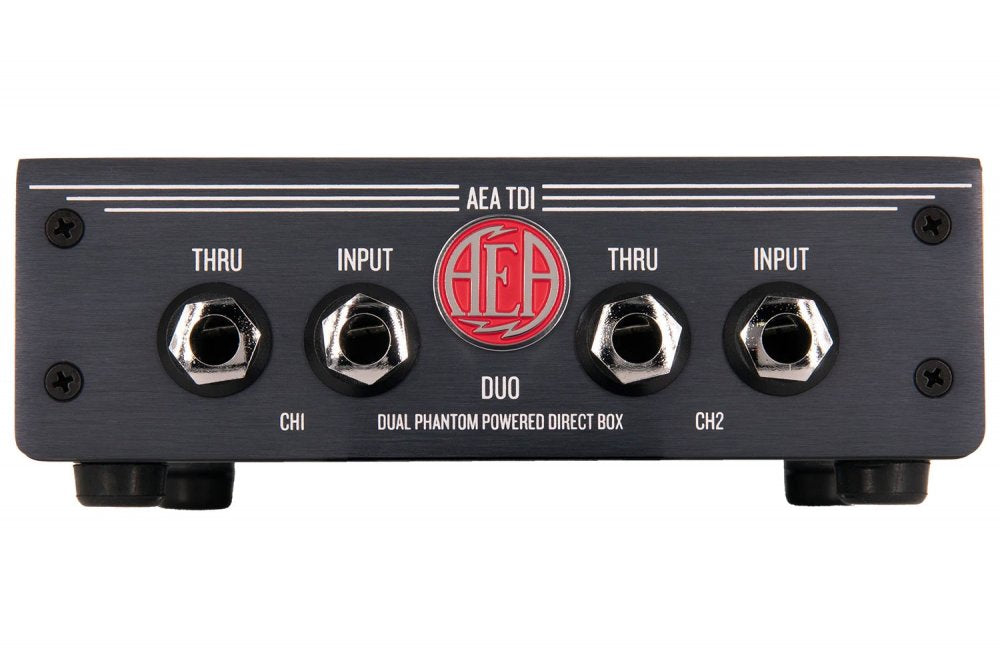

AEA TDI Duo

With a proprietary circuit design by Fred Forssell and a superclean Lehle step-down transformer, the ultra-transparent TDI and TDI Duo capture outstanding sonic performances with minimal distortion, noise interference or signal loss from long cable runs.

• Phantom-powered Stereo DI box with active circuitry

• Ultra-low-noise JFET buffer drives exceptionally clean Lehle step-down transformer

• High-fidelity sound quality with mitigation of distortion and noise interference

• Enhances signal for long cable runs protecting against degradation

• Compact, road-ready design with rugged durability

• -20 dB pad for speaker-level signals and active instruments

• Made in the U.S.A.

Noise Floor (22 Hz - 22 kHz, unweighted): Better than -114 dBu

Frequency Response: -0.5 dB: <10 Hz - 50 kHz, -3 dB: <10 Hz - 120 kHz

THD+N: (22 Hz - 22 kHz): 1 kHz, 0 dBu input: 0.0020%

Input Impedance: Instrument: 10 MΩ, With Pad: 55 kΩ

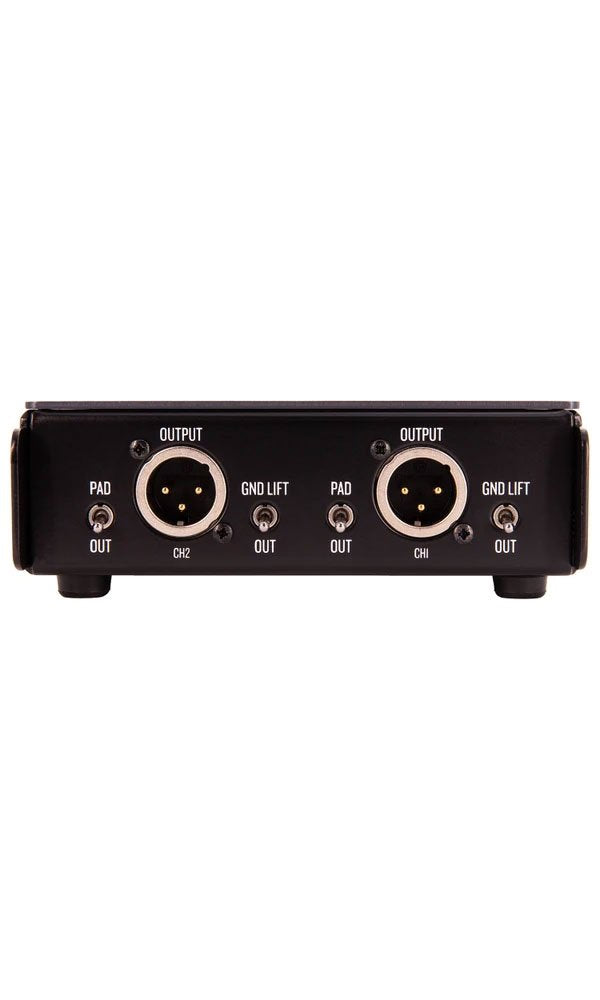

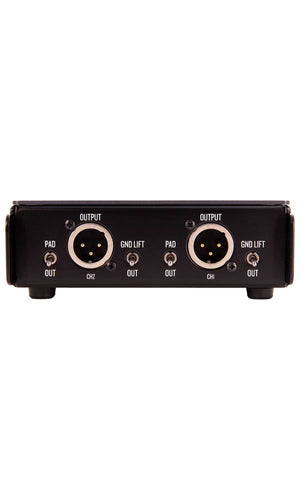

Balanced XLR Output

Output Impedance: <50 Ω balanced output

Output level (pad out): Input level minus 20 dB

Output level (pad in): Input level minus 40 dB

Pad: -20 dB

Power Consumption: Phantom Power, +48VDC, less than 8 mA

Output XLR Polarity:

Pin 2 high

Dimensions: 5.1" X 3.0" X 2.0"

Weight: 1lb 3oz (~539 g)
