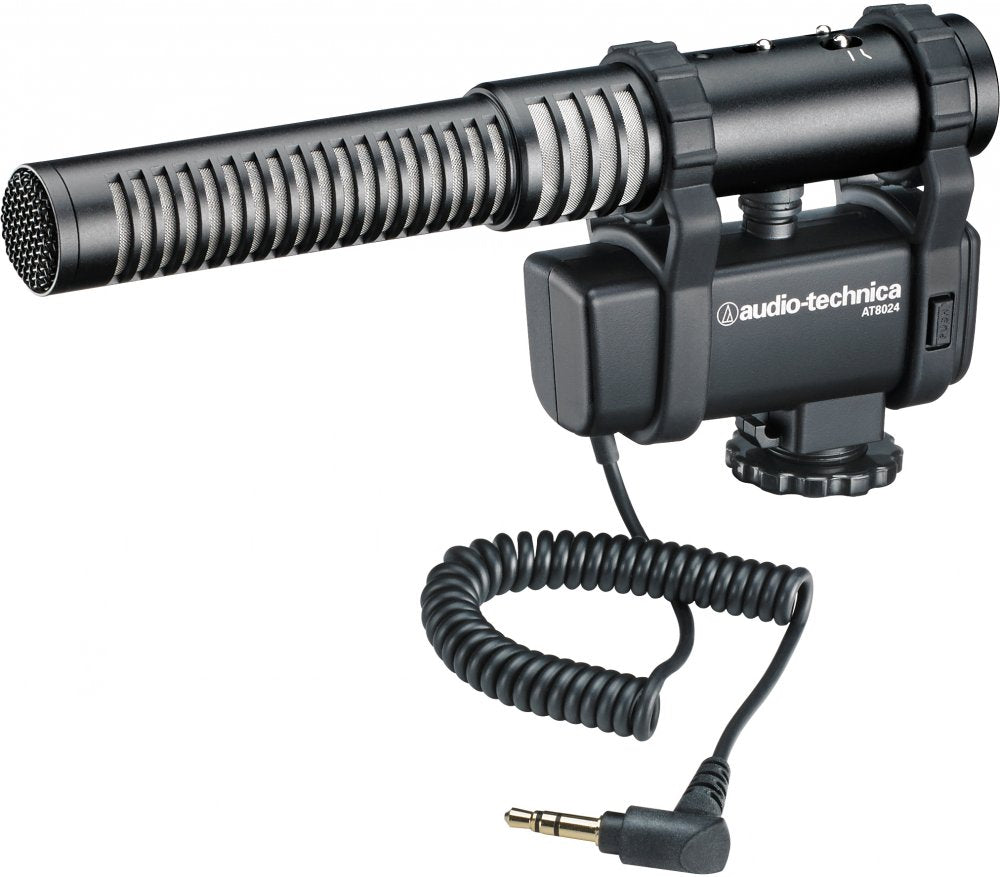

Audio Technica AT8024

Selectable line-cardioid mono and internally matrixed mid-side stereo modes provide the flexibility to focus the recording on a single sound source or to widen the field for outstanding sonic realism. In either mode, the AT8024 delivers audio that is dramatically better than that supplied by the camera's internal microphone.

The AT8024 camera-mount microphone also comes equipped with a three-position adjustable attenuator (-20 dB, -10 dB, 0 dB) to capture even soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches quickly to DSLRs and shoe-equipped camcorders.

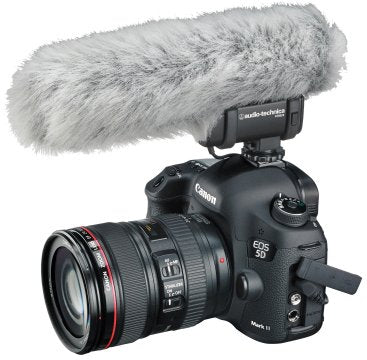

• Designed for use with DSLR and other video cameras, delivering dramatically better sound quality than the camera's internal microphone

• Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment

• Handles loud sound sources without distortion

• Three-position adjustable attenuator and switchable low-frequency roll-off

• Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise

• Compact, lightweight design with integral shoe mount

• Red/green LED power indicator

• Includes windscreen, fuzzy windscreen and AA battery

ELEMENTS: Fixed-charge back plate, permanently polarized condenser

POLAR PATTERNS: Line-cardioid, LR stereo

FREQUENCY RESPONSE: 40-15,000 Hz

LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY: -37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)

IMPEDANCE: 50 ohms

MAXIMUM INPUT SOUND LEVEL: 128 dB SPL, 1 kHz at 1% T.H.D.

DYNAMIC RANGE (typical):

Mono: 106 dB, 1 kHz at Max SPL;

Stereo: 104 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO:

Mono: 72 dB, 1 kHz at 1 Pa;

Stereo: 70 dB, 1 kHz at 1 Pa

BATTERY TYPE: Type: One 1.5V AA (included); Life: 80 hours, typical

SWITCHES: Mono, M-S Stereo; Three-position attenuator; Flat, roll-off

WEIGHT: 114 g (4.0 oz)

DIMENSIONS: 172.0 mm (6.77") long, 24.0 mm (0.94") maximum body diameter

OUTPUT CONNECTOR: 3.5 mm stereo mini-plug on cable

CABLE: Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end

ACCESSORIES FURNISHED: Windscreen; fuzzy windscreen; AA battery

AUDIO-TECHNICA CASE STYLE: CM1
