Clear-Com CC-70

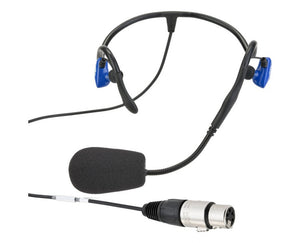

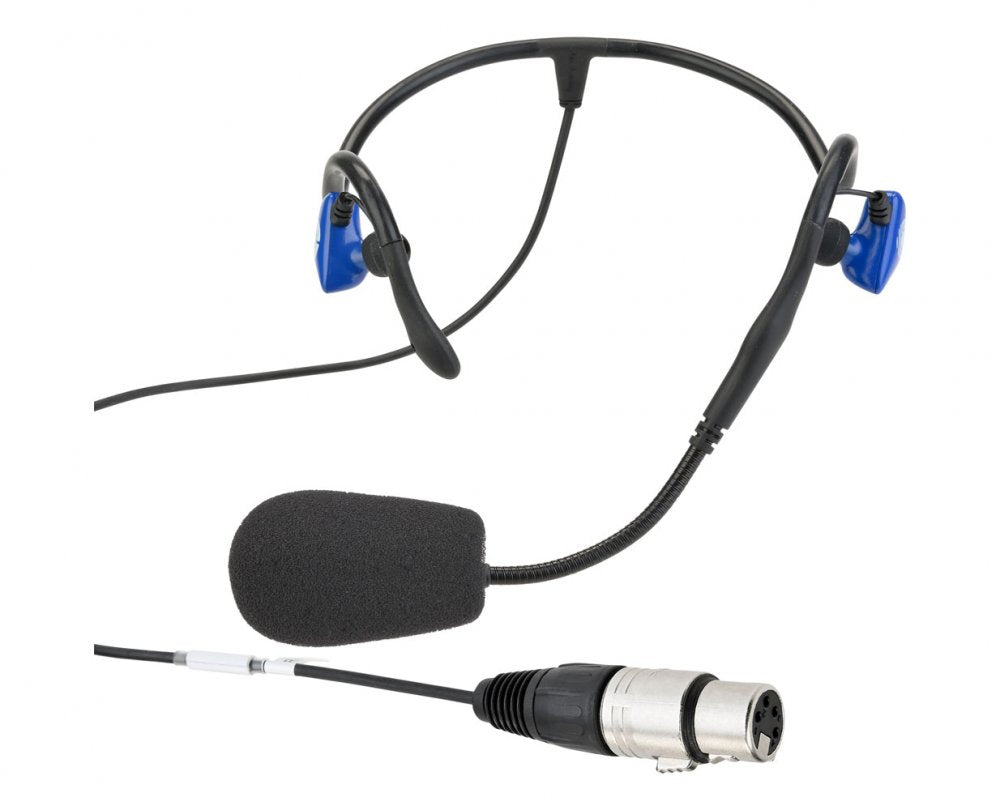

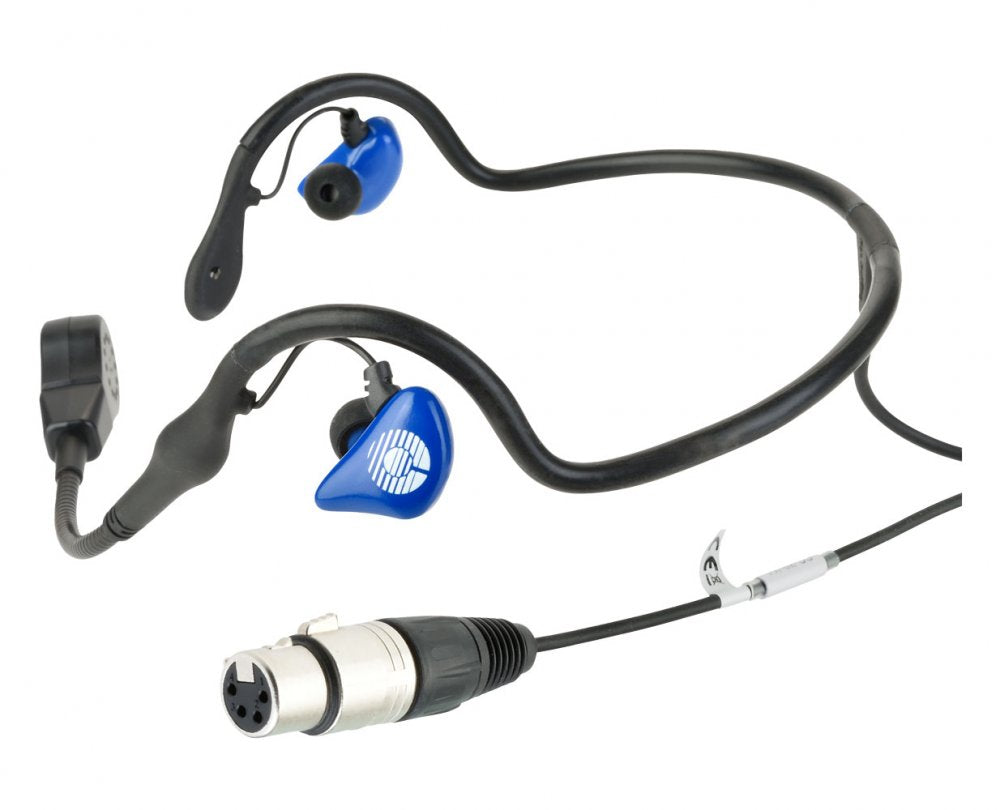

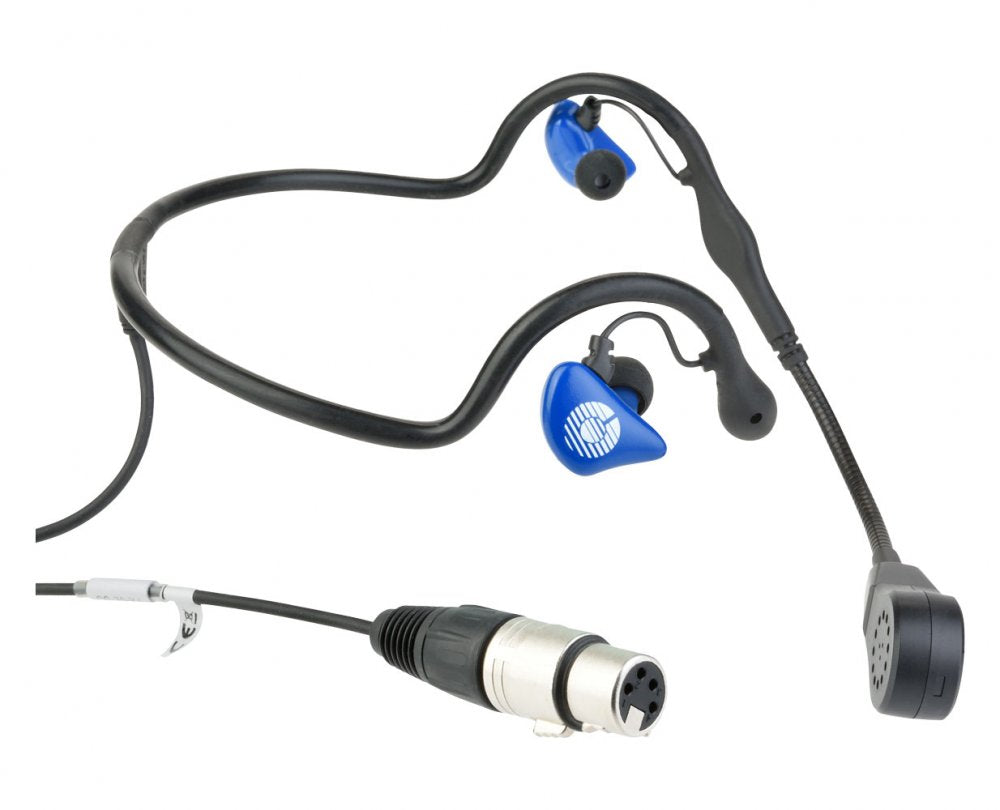

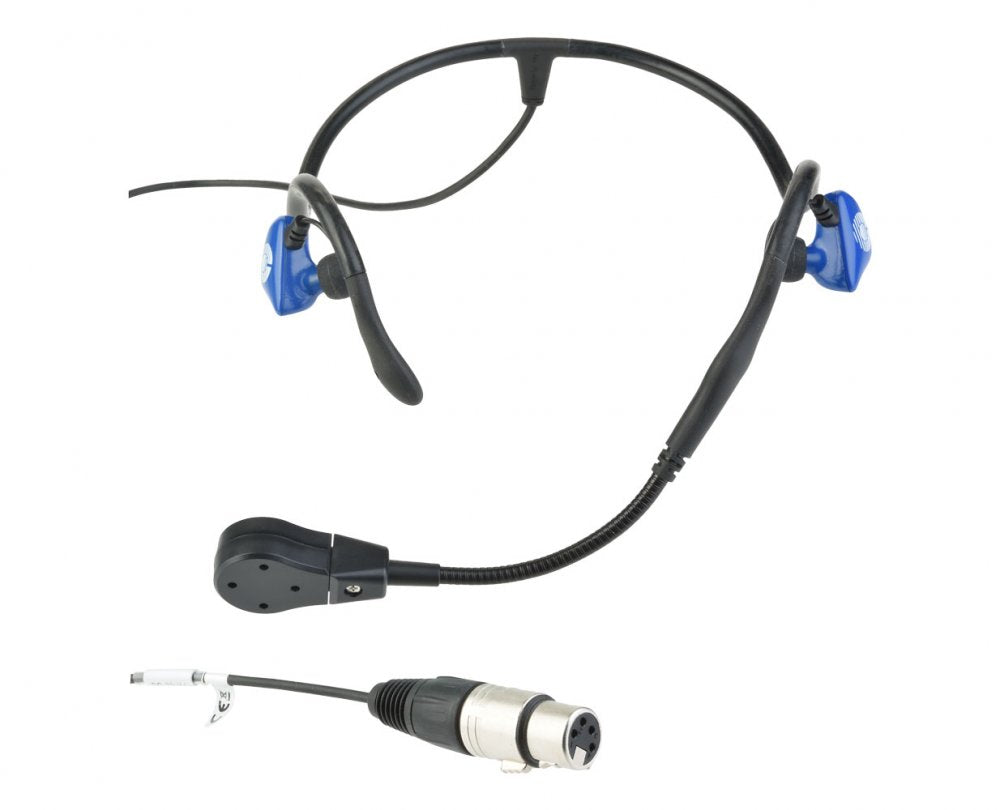

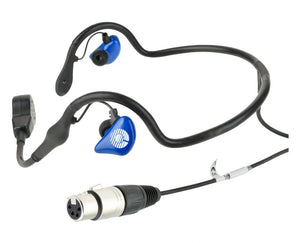

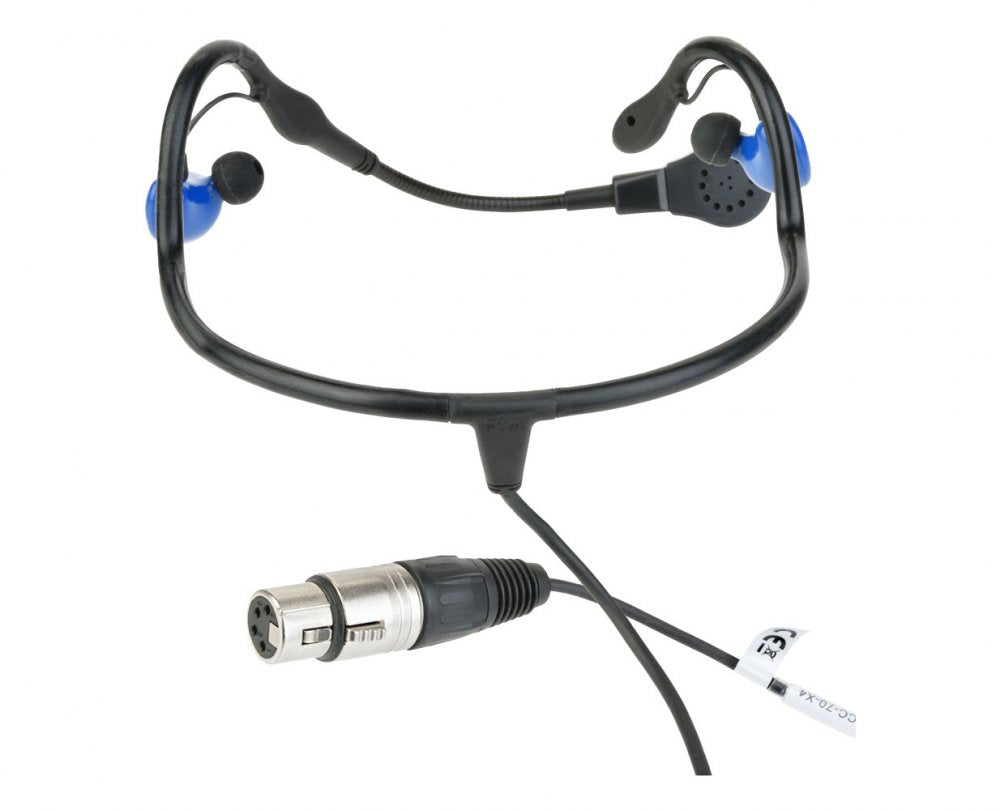

Engineered for comfort and clarity, the CC-70-X4 is a dual ear, wrap-around headset designed for communication in loud environments. Its slim profile allows it to be worn comfortably under helmets or hats, making it ideal for broadcast, live production, and industrial applications where both protection and precision are essential.

Weighing just 2.3 oz, the headset offers extended-wear comfort, while the flexible gooseneck mic ensures optimal positioning. The dynamic microphone features a unidirectional, noise-cancelling design, providing 12dB off-axis rejection to maintain clear voice transmission even in noisy conditions. It includes three sizes of interchangeable ear tips (S/M/L) for a customizable fit and comes equipped with a 4-pin female XLR connector compatible with Clear-Com systems.

• Slim, Dual-Ear Design: Wrap-around style fits comfortably under helmets or hats for unobtrusive use.

• Lightweight and Comfortable: Weighs just 2.3 oz, ideal for long periods of wear in active or mobile environments.

• Noise-Cancelling Microphone: Unidirectional mic with 12dB off-axis rejection for clear communication in loud settings.

• Flexible Mic Boom: Gooseneck allows precise microphone positioning for consistent voice capture.

• Clear Audio Performance: Single-driver earpieces deliver sound with a 30Hz"14kHz frequency range.

• Multiple Ear Tip Sizes Included: Comes with small, medium, and large ear tips for a secure and customized fit.

• Professional Connector: XLR 4-pin female Neutrik connector with Clear-Com wiring for standard intercom systems.

• Durable and Shielded Cable: 4-foot straight cable with shielded, separate mic wiring for reduced interference.

• Tested for Tough Conditions: Reliable operation in extreme temperature and humidity environments.

GENERAL SPECIFICATIONS:

• Model: CC 70 X4

• Design: Wrap around dual ear headset, wearable under helmet or hat

• Noise Cancellation: 12 dB off axis

• Comfort: Lightweight at 2.3 oz or 65 grams, designed for long duration use

• Microphone: Flexible gooseneck for adjustable positioning

• Ear Tips: Includes small, medium, and large sizes, one pair of each

HEADPHONE SPECIFICATIONS:

• Type: Single driver

• Frequency Response: 30 Hz to 14 kHz

• Sensitivity: 96 dB SPL at 1 VRMS at 1 kHz

• Impedance: 16 ohms plus 16 ohms

• Input Power: 3 mW

MICROPHONE SPECIFICATIONS:

• Element: Dynamic

• Polar Pattern: Unidirectional noise cancelling

• Frequency Response: 200 Hz to 10 kHz

• Sensitivity: minus 80 dB at 1V per Pa at 1 kHz typical

• Impedance: 200 ohms

CONNECTIVITY:

• Connector: XLR 4 pin female Neutrik, Clear Com wiring

• Cabling: Screened and separately shielded microphone wires, not coiled

• Cable Length: 4 feet or 1.2 meters

ENVIRONMENTAL SPECIFICATIONS:

• Operating Temperature: minus 10 to 55 degrees Celsius

• Humidity Tolerance: 40 degrees Celsius at 90 to 95 percent relative humidity for 48 hours
