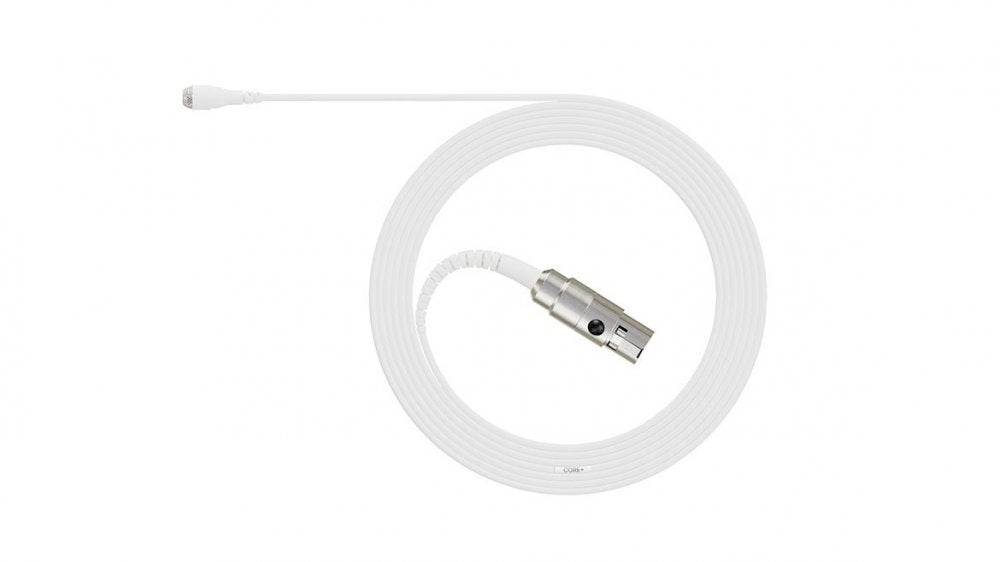

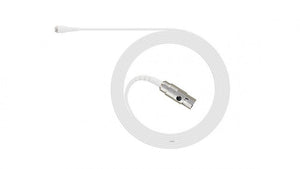

DPA 4060-OP-C-W10

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock: A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

4060 Miniature Omnidirectional Microphone, Normal SPL

This omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

We originally designed this microphone for use with wireless systems in theaters but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

The 4060 Miniature Omnidirectional Microphone, Normal SPL is available in four colors: black, brown, beige and white. An even more robust, heavy-duty version is also available.

• Exceptional audio quality

• Uniform, consistent sound between DPA mics

• Extremely rugged and reliable

• Diminutive size made for flexible and easy concealment

• Large selection of clips, windscreens, grids and other accessories

• Modular adapter system fits most professional wireless systems

DIRECTIONAL PATTERN:

Omnidirectional

PRINCIPLE OF OPERATION:

Pressure

CARTRIDGE TYPE:

Pre-polarized condenser

FREQUENCY RANGE:

20 Hz - 20 kHz, Frequency range, ±2 dB

SOFT BOOST GRID:

20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz

HIGH BOOST GRID:

20 Hz - 20 kHz, 10 dB boost at 12 kHz

SENSITIVITY, NOMINAL, ±3 DB AT 1 KHZ:

20 mV/Pa; -34 dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

EQUIVALENT NOISE LEVEL, ITU-R BS.468-4:

Typ. 35 dB (max. 38 dB)

S/N RATIO (A-WEIGHTED):

re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)

Total harmonic distortion (THD) - Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine

Total harmonic distortion (THD) - CORE < 1% THD up to 129 dB SPL peak

DYNAMIC RANGE - LEGACY:

Typ. 100 dB

DYNAMIC RANGE - CORE:

Typ. 106 dB

MAX. SPL, PEAK BEFORE CLIPPING:

134 dB

OUTPUT IMPEDANCE:

30 - 40

CABLE DRIVE CAPABILITY:

Up to 300 m (984 ft)

POWER SUPPLY (FOR FULL PERFORMANCE):

For wireless systems: Min. 5 V - max. 50 V through DPA adapter.

With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance

CONNECTOR:

TA4F Mini-XLR termination

COLOR:

White

WEIGHT:

7.5 g (0.26 oz) incl. Cable and MicroDot connector

MICROPHONE DIAMETER:

5.4 mm (0.21 in)

MICROPHONE LENGTH:

12.7 mm (0.5 in)

CABLE LENGTH:

1.8 m (5.9 ft)

POLARITY:

Positively increasing sound pressure produces positive going voltage on MicroDot pin

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%
