DPA 4099-DP-1-199-S

The DPA 4099-DP-1-199-S CORE+ microphone is a premium solution for close-miking saxophones in both live and studio environments. Designed to handle Loud SPLs up to 145 dB, it effortlessly captures the full tonal depth and expressive dynamics of the saxophone without distortion or coloration.

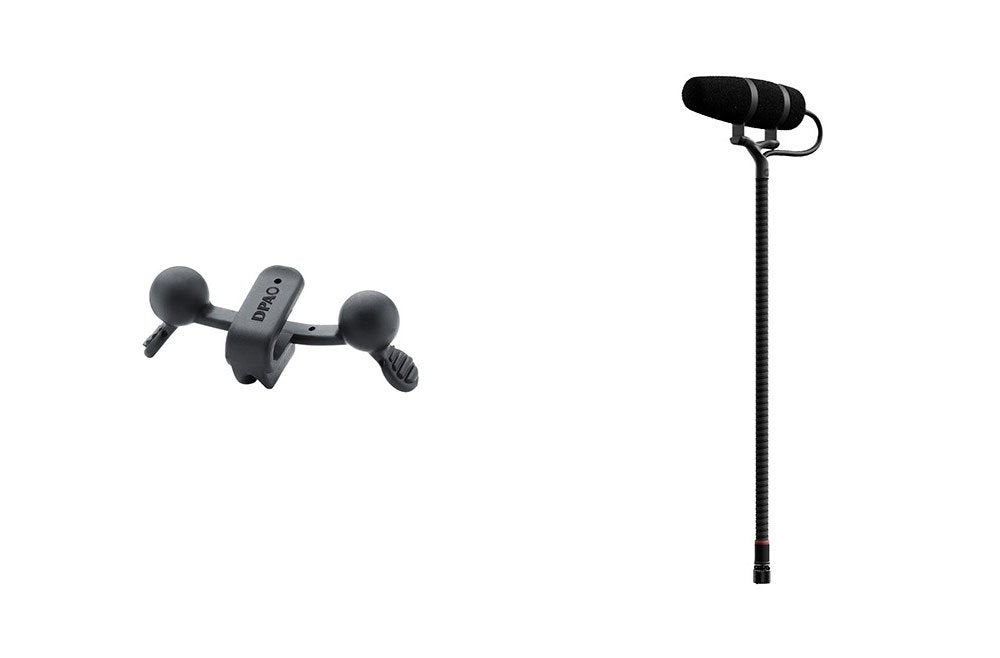

This model includes the STC4099 clip, purpose-built for saxophones and other wind instruments. It provides a secure yet instrument-friendly mounting, ensuring optimal mic placement and stability-even during energetic performances. The supercardioid pickup pattern offers focused sound capture with excellent rejection of off-axis noise, making it ideal for high-volume stages or tightly mic'd ensemble settings.

With CORE+ technology inside, this microphone delivers an expanded dynamic range and improved clarity, ensuring that every nuance of your performance is preserved. The 4099-DP-1-199-S is the ideal choice for saxophonists who demand pristine sound quality, reliable mounting, and minimal visual footprint.

• Precision microphone designed specifically for saxophone and similar wind instruments

• CORE+ technology ensures natural, detailed sound with enhanced clarity and dynamic range

• Loud SPL version captures strong sound levels without distortion or loss of nuance

• Supercardioid pattern offers excellent off-axis rejection for clear isolation in live settings

• Includes dedicated saxophone clip for secure, instrument-safe mounting and easy repositioning

• Flexible gooseneck allows optimal mic placement while staying out of the performer's way

• MicroLock connector provides stable connection and wireless system compatibility

• Perfect for stage, studio, and touring use with consistent, professional-grade results

MICROPHONE TYPE:

• Prepolarized condenser

• Pressure gradient operation

POLAR PATTERN:

• Supercardioid

FREQUENCY RESPONSE:

• 20 Hz to 20 kHz

• Effective range plusminus 2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB soft boost at 10 to 12 kHz

SENSITIVITY:

• 6 mV per Pa

• Minus 44 dB re 1 V per Pa

EQUIVALENT NOISE LEVEL:

• Typical 23 dBA

• Maximum 26 dBA

DISTORTION THD:

• Less than 0 point 5 percent: 135 dB SPL RMS, 138 dB SPL peak

• Less than 1 percent: 138 dB SPL RMS, 141 dB SPL peak

• Max SPL at 10 percent THD: 145 dB SPL peak

DYNAMIC RANGE:

• Typical 118 dB

OUTPUT IMPEDANCE:

• MicroLock: 30 to 40 ohm

• With DAD9099 or DAD9001 XLR Adapter: 100 ohm

CABLE DRIVE CAPABILITY:

• Up to 300 meters with XLR adapter

OUTPUT BALANCE:

• Balanced signal with XLR adapter

CMRR:

• Greater than 60 dB from 50 Hz to 15 kHz

POWER REQUIREMENTS:

• Wireless: 5 to 10 V via DPA adapter

• Wired: P48 phantom power, minimum 12 V

CURRENT CONSUMPTION:

• 1 point 5 mA for microphone

• 3 point 5 mA with XLR adapter

CONNECTOR:

• MicroLock

MOUNT TYPE:

• STC4099 Saxophone Clip

• Clip weight: 7 g

DIMENSIONS:

• Microphone diameter: 5 point 7 mm

• Microphone length: 50 mm

• Gooseneck length: 140 mm

• Cable length: 1 point 8 meters

• Cable diameter: 1 point 6 mm and 2 point 2 mm

WEIGHT:

• Microphone: 18 g

ENVIRONMENTAL:

• Operating temperature: minus 40 to 45 Celsius

• Relative humidity: up to 90 percent

POLARITY:

• Positive voltage at MicroLock pin for positive sound pressure

IDENTIFICATION:

• Red marking on gooseneck for Loud SPL

TECHNOLOGY:

• CORE Plus

• MicroLock connector

• IP58 certified

• Enhanced shock mount and gooseneck stability

• Designed for saxophone with optimized isolation and clarity
