DPA 6061-OC-U-C90

Our new Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter.

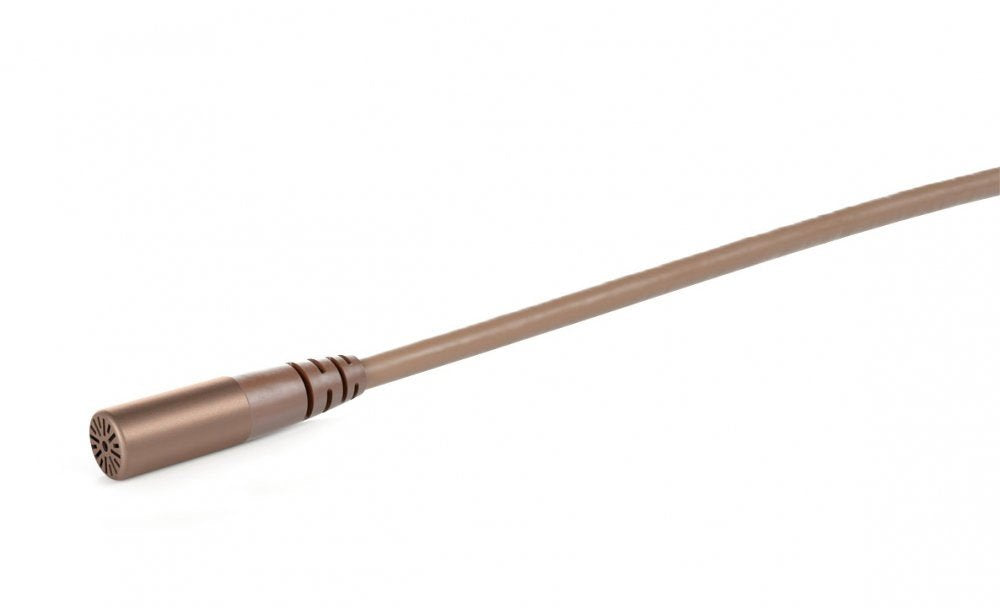

The 6061 gives the impression of just being a slight bulge at the end of the 1.6mm cable. Indeed, the diameter of the new product is just 3.4mm with its stainless steel cap fitted. Unlike the 4000 series, only one size of cap will be available, equivalent to the soft boost from that product range. DPA tell us that the new physical dimensions mean that it would take a very long cap to produce more HF boost. I say, with low self-noise like this you are unlikely to need a high boost, instead EQ on the desk should work fine. The cap is removable for cleaning after the talent has sweated on it, oh joy! DPA did not provide Resolution with mounting accessories with this (very early) example of the new personal but we are told a rotatable clip will be available when the range goes on sale. For my tests I used Rycote Advanced Stickies and Undercovers to body mount it, which worked perfectly.

• Amazing 3 mm CORE capsule technology

• Renowned DPA sound in a 60% smaller package

• Stainless steel, PVD-coated mic housing

• Modular adapter system fits most professional wireless systems

• Water and sweat resistant

• Made for theater, film, and television production

DIRECTIONAL PATTERN:

Omnidirectional

PRINCIPLE OF OPERATION:

Pressure

CARTRIDGE TYPE:

Pre-polarized condenser

FREQUENCY RANGE:

20 Hz - 20 kHz

FREQUENCY RANGE:

±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

yp. 24 dB(A) re. 20 Pa (max. 26 dB(A))

S/N RATIO (A-WEIGHTED), RE. 1 KHZ AT 1 PA (94 DB SPL):

Typ. 70 dB(A)

TOTAL HARMONIC DISTORTION (THD):

< 1% up to 128 dB SPL peak

DYNAMIC RANGE:

Typ. 102 dB

MAX. SPL, PEAK BEFORE CLIPPING:

144 dB

OUTPUT IMPEDANCE:

From MicroDot: 30 - 40 . From DAD6001-BC: 100

CABLE DRIVE CAPABILITY:

Up to 300 m (984 ft) with DAD6001-BC XLR adapter

POWER SUPPLY (FOR FULL PERFORMANCE):

Min. 5 V to max. 10 V through DPA adapter for wireless systems.

WITH DAD6001-BC:

48 V phantom power ±4 V for full performance. Works from 12V

CONNECTOR:

MicroLock

COLOR:

Brown

WEIGHT:

8 g (0.29 oz) incl. Cable and MicroDot connector

MICROPHONE HEAD SIZE (H X W X D):

3.4 / 14.4 mm (0.13 / 0.57 in)

CAPSULE DIAMETER:

3.4 / 14.4 mm (0.13 / 0.57 in)

CABLE LENGTH:

1.8 m (5.9 ft)

POLARITY:

Positively increasing sound pressure produces positive going voltage on MicroDot pin

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%
