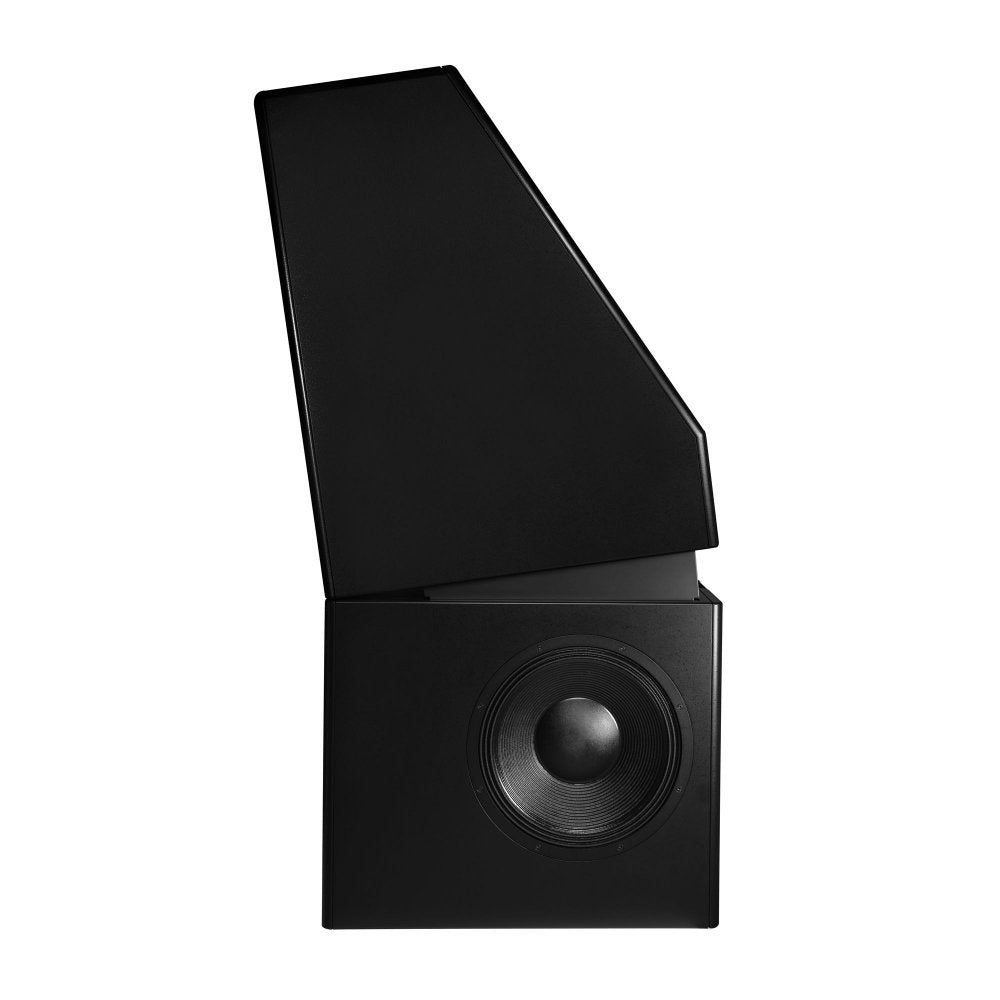

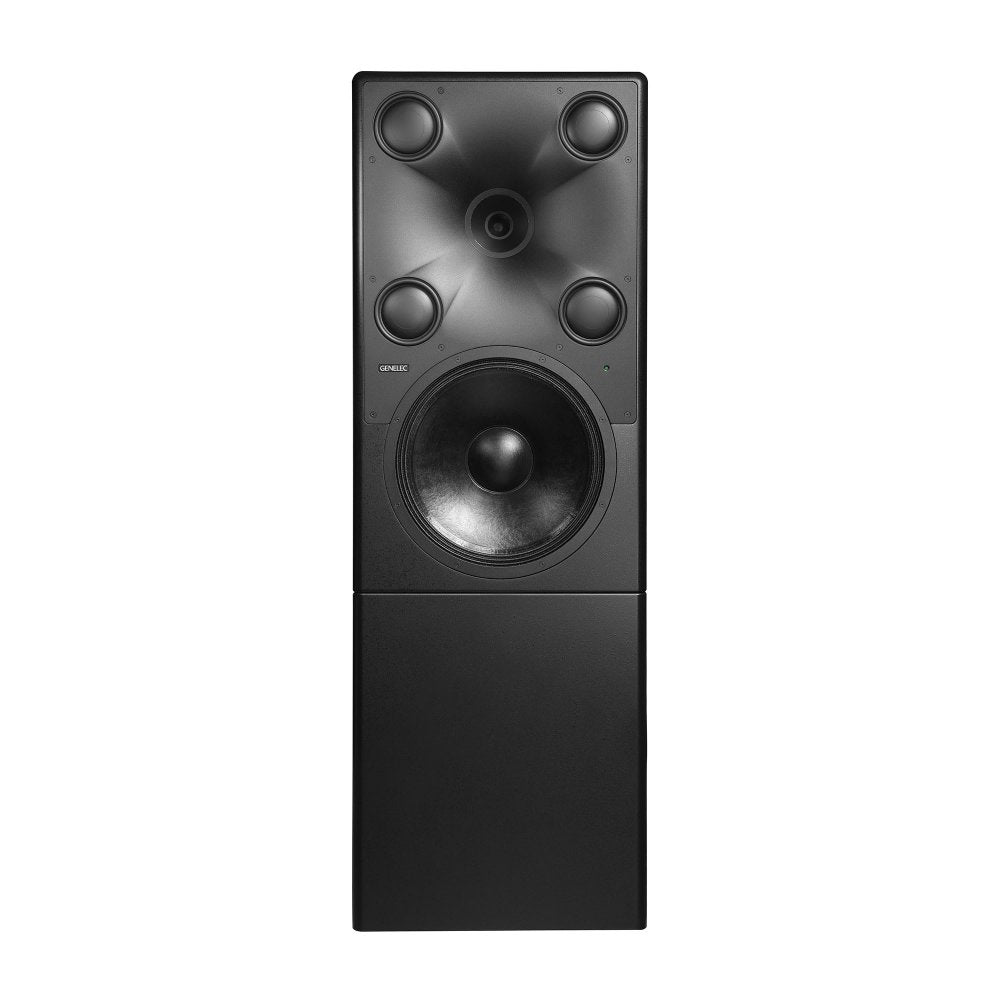

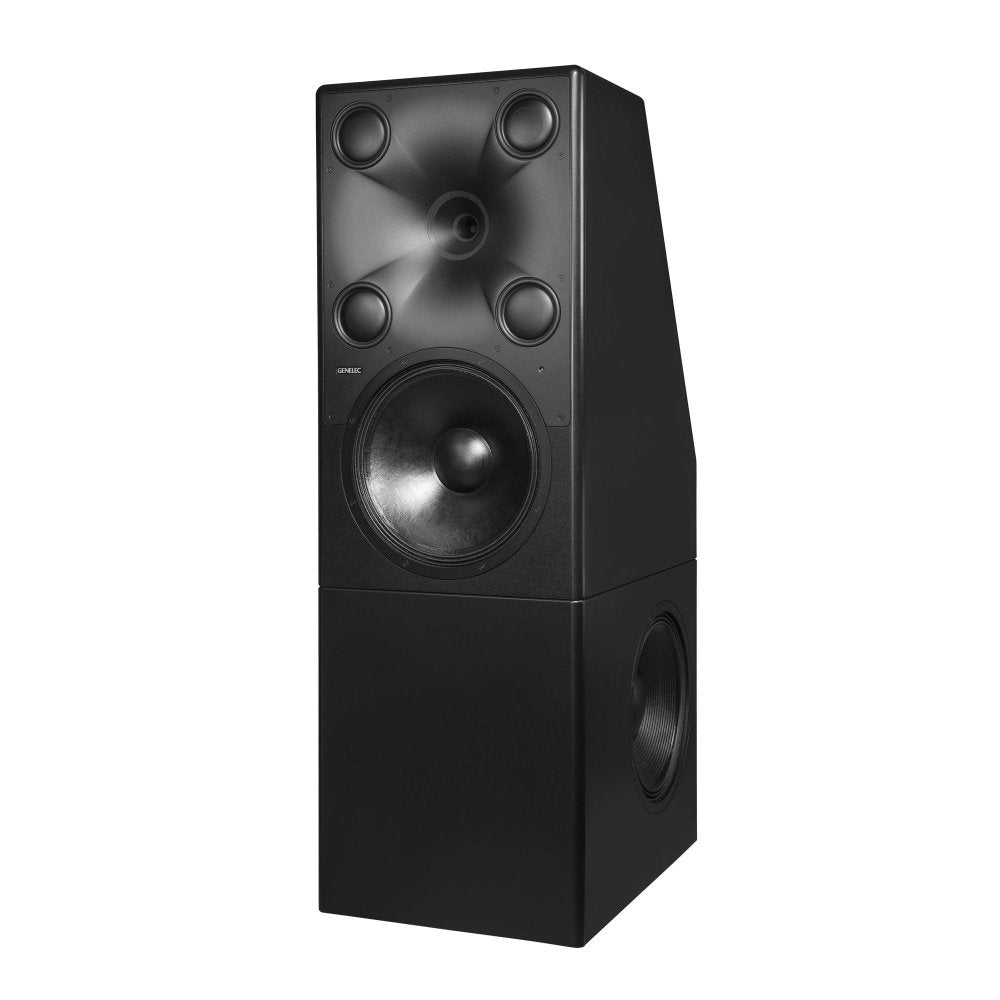

Genelec 8381ABM

Our 8381A empowers engineers and creators to perceive every sonic detail, offering true-to-life sound level and dynamics - with the full flexibility of free-standing monitor placement and advanced room adaption.

Point Source Continued Directivity (PCD) Premiered on the 8381A, important frequencies are experienced radiating from the same location and in perfect time alignment - creating precise sound imaging, natural soundstage presentation, and enabling the lowest frequencies to be reproduced at their intended source locations.

Minimum Diffraction Coaxial (MDC) Driver technology delivering mid and high frequencies from a single point source, for extremely accurate sound images.

Quad Midrange System (QMS) Acoustically coaxial woofer solution that supports the MDC driver output and maintains directivity in lower frequencies, enabling the point source to work down into the woofer range.

Double Low-Woofer (DLW) system Recoil-compensated adaptive low-woofer solution that combines with the PCD for the freedom to place the 8381A in the desired room location - with no compromise in performance or imaging detail.

Smart Active Monitoring (SAM) SAM Technology enables monitors and subwoofers to network for automated system calibration and roomadaption, utilising digital signal processing.

• Adaptive five-way with SAM Technology.

• 5926 W total amplifier power.

• 129 dB SPL per pair maximum output.

• Frequency range 20 Hz to 35 kHz.

• On-axis response accuracy better than ± 1.5 dB.

• Minimum listening distance < 1 metre.

• Point Source Continued Directivity operating principle for excellent in-room sound quality and precise imaging.

• Constant Delay and Phase.

• Each 8381A includes two RAM81 amplifiers - each uniquely calibrated at the Genelec factory in Iisalmi to match its assigned cabinet.

• Black and white enclosure colours.

SPL:

126 dB

AMPLIFIER POWER:

Total amplifier power 5926 W (Class D)

FREQUENCY RESPONSE:

20 Hz - 35 kHz ("-6 dB")

ACCURACY OF FREQUENCY RESPONSE:

± 1.5 dB

DRIVER DIMENSIONS:

2 x ⌀ 381 mm Bass + ⌀ 381 mm Bass + 4 x ⌀ 127 mm Midrange + ⌀ 127 mm Coaxial Midrange + ⌀ 25 mm Coaxial Tweeter (view in inches)

DIMENSIONS:

H 1458 x W 500 x D 694 mm, (view in inches)

WEIGHT:

200 kg / 440.9 lb

CONNECTIONS:

2 x XLR Analog Input

2 x XLR Analog Output

2 x XLR AES/EBU Input

2 x XLR AES/EBU Output

4 x RJ45 Control

PACKAGE CONTAINS:

• The 8381A is shipped in a plywood-covered pallet containing the top and bottom enclosures (both needed for one complete unit), two individually calibrated RAM-81 amplifier units and an accessory kit, including incliner wedges to optimise the vertical acoustic axis.

• Quick Setup Guide with link to product website and documents, including the Operating Manual.

• GLM Kit and GLM software access.

• 8381A specific SonicAdvisor services.
