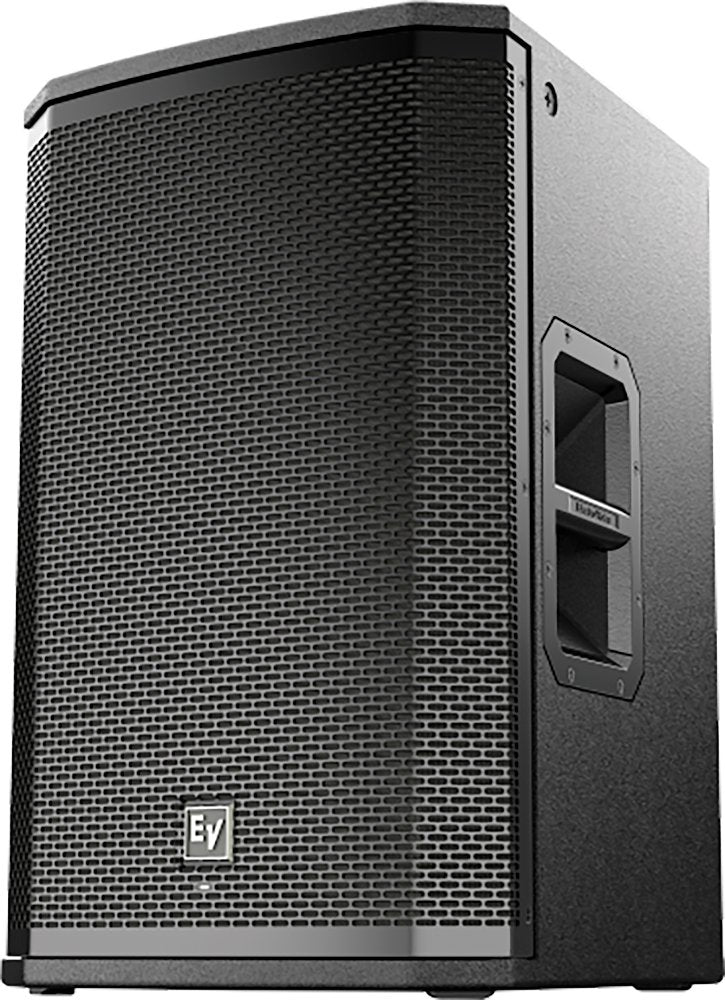

Electro Voice ETX12P

The ETX Powered Loudspeaker family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional-grade products for an array of applications.

A versatile high-end choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the family offers technologies from EV concert/touring systems. Three two-way models, a three-way model and two subs are available.

The ETX Powered Loudspeaker family extends the awardwinning industrial design introduced by Electro-Voice in 2013. Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set the family apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EVengineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

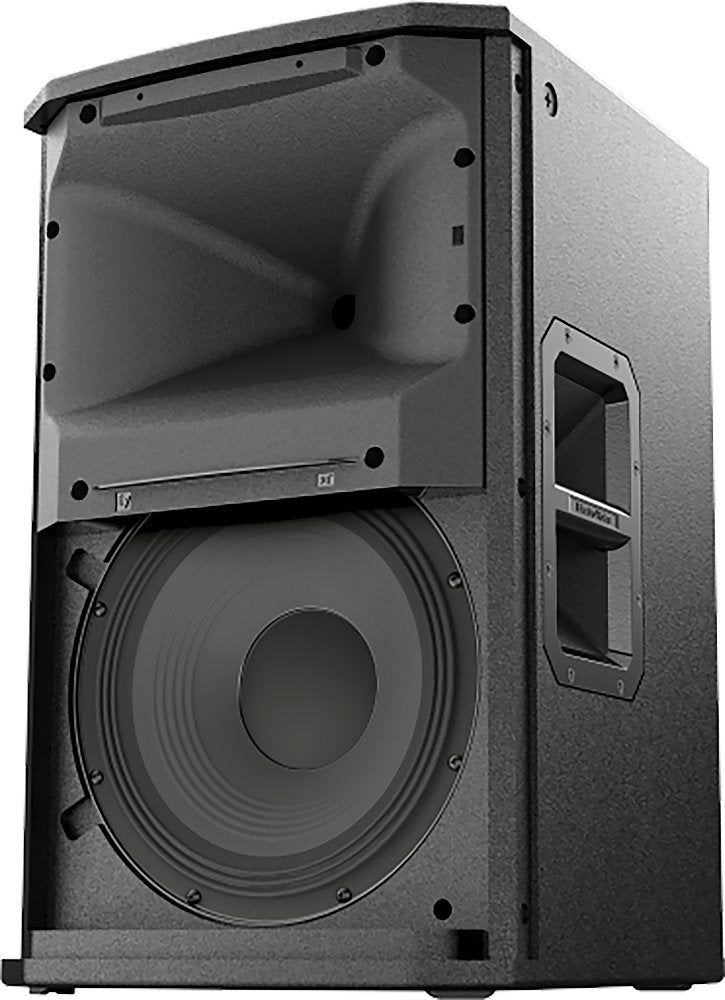

• 12-inch LF SMX woofer

• 1.25-inch HF titanium compression driver

• 2000 W Class-D power amplifier with integrated FIR-Drive DSP

• 135 dB peak SPL

FREQUENCY RESPONSE (-3 DB):

55 Hz - 20 kHz¹

FREQUENCY RANGE (-10 DB):

43 Hz - 20 kHz¹

MAXIMUM SPL:

135 dB peak²

COVERAGE (H X V):

90 x 60

POWER RATING:

2000 W

LF TRANSDUCER:

SMX2120 300 mm (12 in)

HF TRANSDUCER:

DH3-B 1.25-in titanium compression driver

CROSSOVER FREQUENCY:

1600 Hz

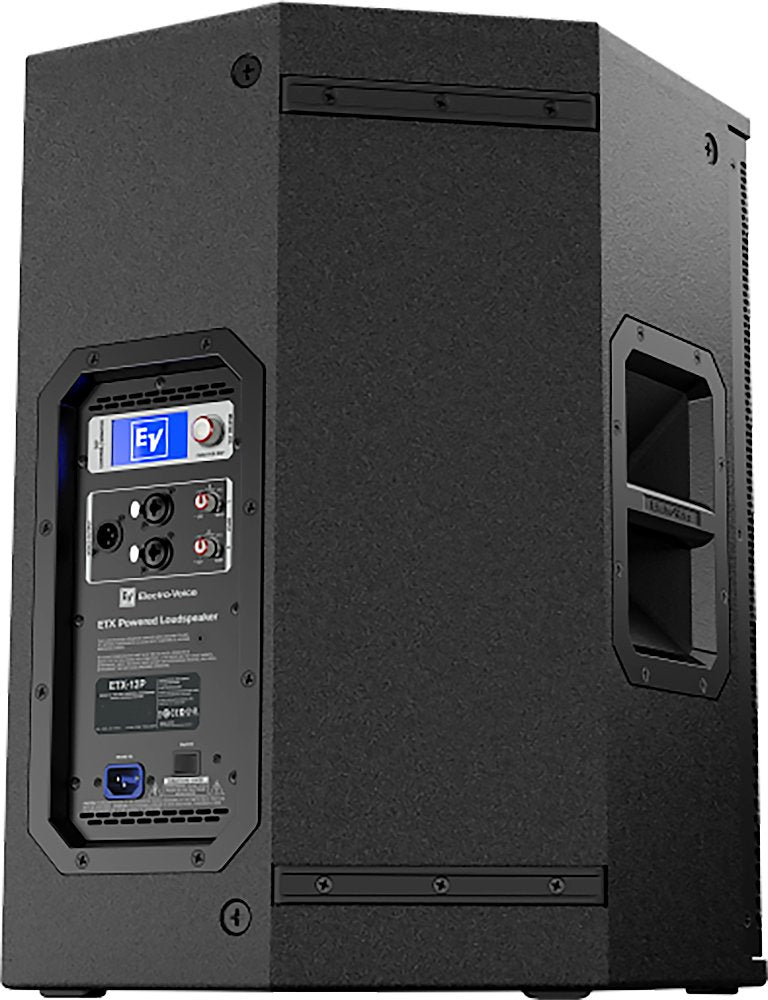

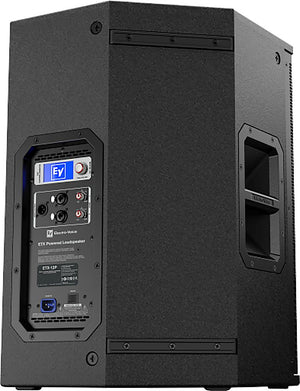

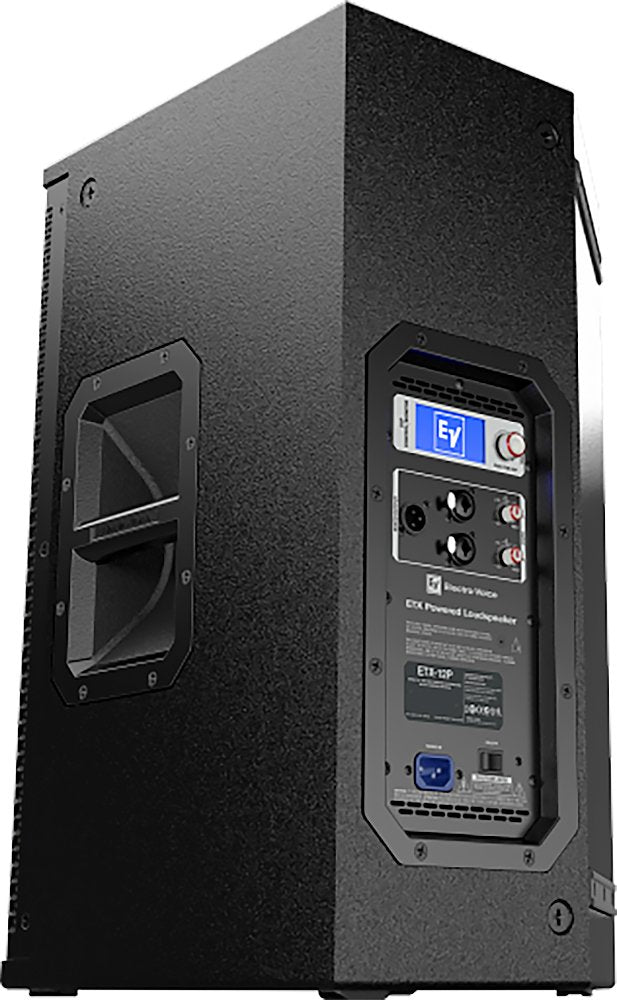

CONNECTORS:

(2) XLR/TRS combo jack and (1) XLR link output

ENCLOSURE:

18 mm, 13-ply birch plywood with EVCoat

GRILLE:

16AWG steel with powdercoat

SUSPENSION:

(8) M10 suspension points

DIMENSIONS (H X W X D):

613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)

NET WEIGHT:

23.6 kg (52.0 lb)

SHIPPING WEIGHT:

26.8 kg (59.1 lb)

POWER CONSUMPTION:

100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³

¹ Full space measurement using the music DSP preset.

² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

³ Current rating is 1/8 power.
