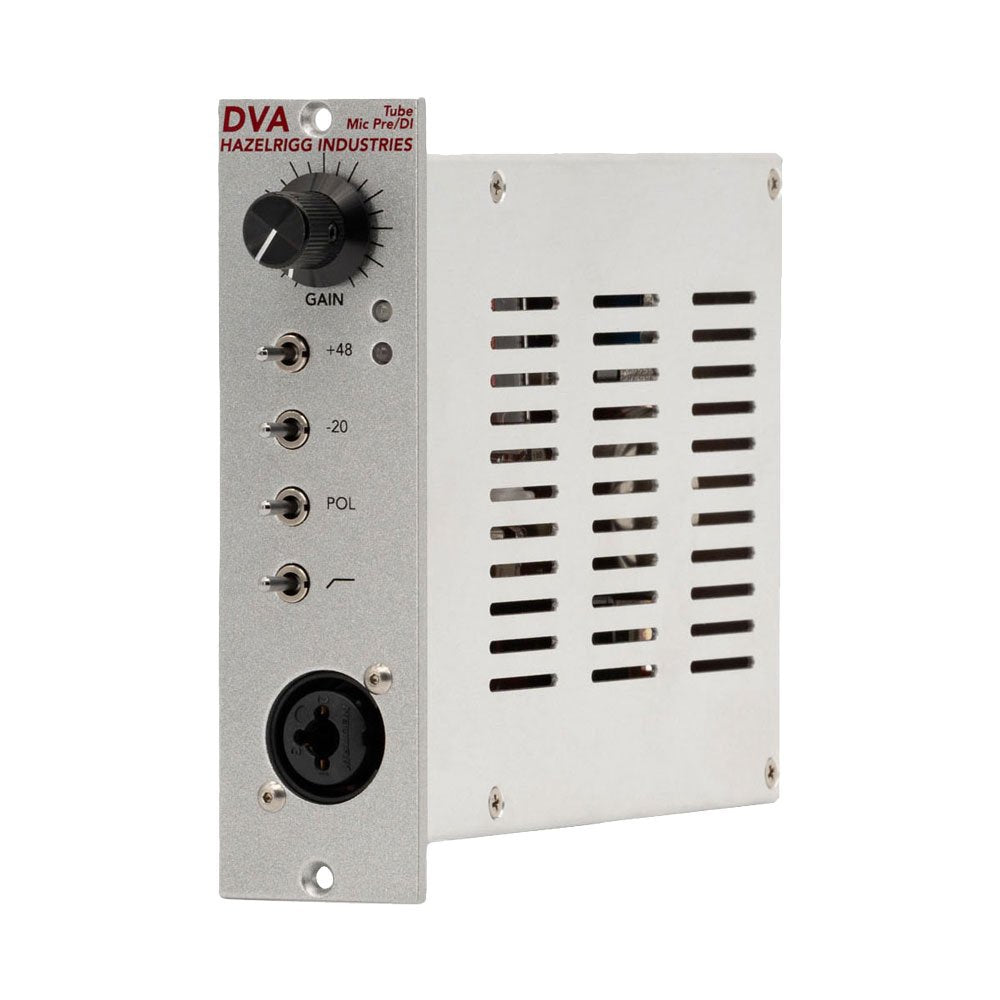

Hazelrigg Industries DVA 500 PRE

The DVA from Hazelrigg Industries delivers the unmistakable warmth and musicality of classic tube preamps in a compact 500 Series format. Drawing from the renowned D.W. Fearn VT-2 and Hazelrigg VLC designs, the DVA features a 6072a vacuum tube input stage with transformer-balanced input and output, capturing every nuance of your source with exceptional clarity and depth.

To suit the 500 Series' power limitations, makeup gain is handled by a low-THD solid-state amplifier, delivering up to 60 dB of gain with minimal coloration. Whether used with microphones or instruments, the DVA offers smooth, harmonically rich tone, enhanced by thoughtful features like phantom power, polarity reversal, -20 dB pad, high-pass filter, and an output level indicator. It's an ideal choice for engineers seeking the refined sonics of boutique tube gear in a portable and efficient format.

• Classic Tube Tone in a Compact Format: Based on the input stage of the D.W. Fearn VT-2 and Hazelrigg VLC preamps.

• Hybrid Design for Modern Efficiency: 6072a vacuum tube input stage paired with a solid-state, low-THD output for clean gain.

• Transformer-Balanced I/O: Input and output transformers deliver rich, analog character and smooth saturation.

• Up to 60dB of Gain: Powerful and clean amplification for a wide range of mics and instruments.

• Front Panel DI Input: Easily connect instruments directly into the preamp.

• Tone Shaping Options: Includes -20dB pad, polarity reversal, high-pass filter, and +48V phantom power switches.

• Output Indicator LED: Provides quick visual feedback for signal activity.

• Designed by D.W. Fearn: Meticulously crafted for musical response and tonal depth.

• 500 Series Convenience: Brings high-end tube preamp performance to portable modular setups.

GENERAL OVERVIEW:

• Series: Hazelrigg Industries D Series

• Format: 500 Series module

• Type: Vacuum tube microphone preamplifier and direct input

DESIGN AND CIRCUITRY:

• Hybrid architecture based on Hazelrigg VLC and D.W. Fearn VT-2

• Tube: 6072a vacuum tube in the input stage

• Output Stage: Solid-state, low-THD, high-output design

• Transformers: Installed on both input and output stages

PERFORMANCE:

• Total Gain: Approximately 60 dB

• Input Handling: Suitable for microphones and instruments

• Recommended Use: Ideal for critical recording, DI tracking, and tonal shaping

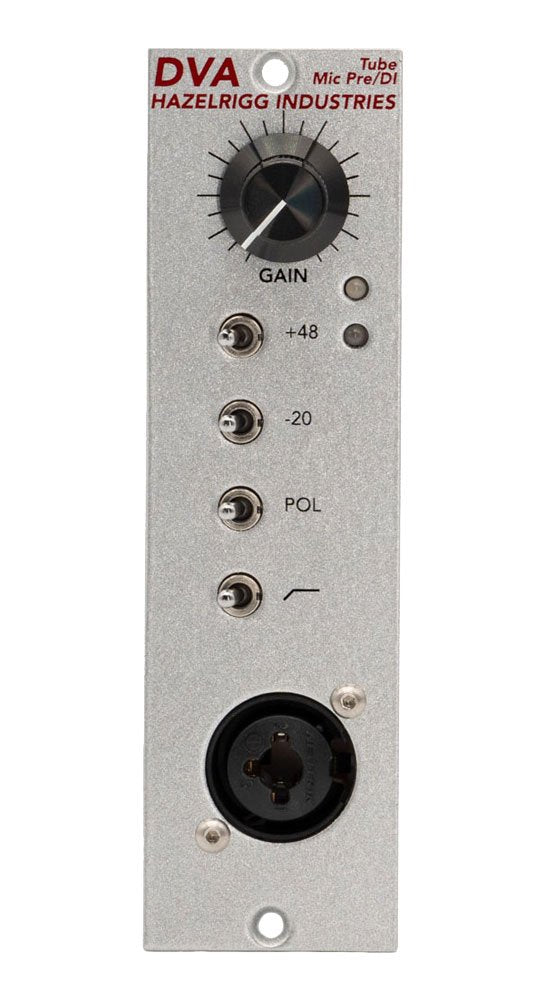

FRONT PANEL CONTROLS AND FEATURES:

• Input: Microphone/instrument jack

• Output Level: LED indicator

• Polarity: Reversal switch

• Pad: -20 dB pad switch

• Phantom Power: +48V switch with LED indicator

• High Pass Filter: Engaged via front panel switch

USER NOTES:

• Input pad may be necessary for high-output condenser microphones

• For saturation effects, engage pad and adjust gain/output accordingly

BUILD AND CONSTRUCTION:

• Handcrafted with premium components

• Designed by D.W. Fearn
