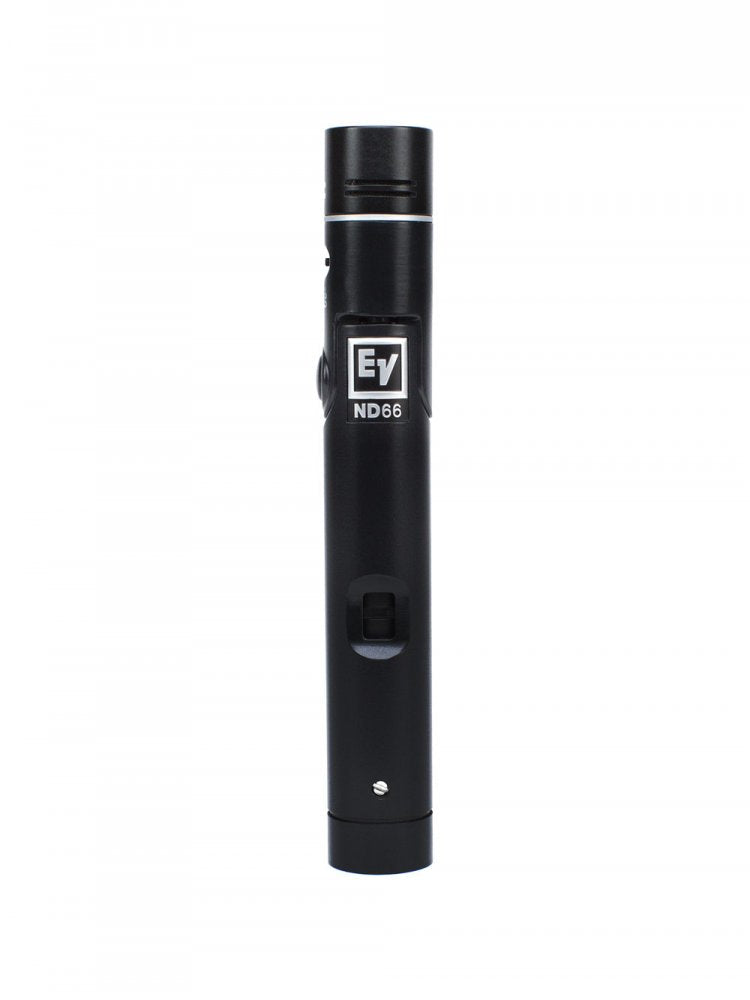

Electro Voice ND66

The ND66 is a premium small-diaphragm condenser microphone designed for capturing the intricate details of percussive and stringed instruments. Its self-biased condenser element delivers a clean, crisp, and highly responsive sound, ideal for instruments requiring fast transient capture and fine articulation.

Built for precise mic placement, the ND66 features a locking pivoting head-just push, rotate, and release to lock it in position. It also includes -10 dB and -20 dB pads to prevent overload on high-volume sources, and selectable high-pass filters at 75 Hz and 150 Hz to eliminate unwanted low-frequency rumble. Housed in a durable die-cast zinc body, this microphone balances studio-level performance with rugged field reliability.

• Crisp, Detailed Condenser Sound: Ideal for percussive and stringed instruments, delivering clean, accurate audio with high transient detail.

• Premium Small-Diaphragm Condenser Element: Vividly responsive to subtle and dynamic nuances in complex sound sources.

• Locking Pivoting Head: Push-button design allows for fast and secure mic placement in any orientation.

• Selectable Pad Settings: Switchable -10 dB and -20 dB pads prevent overload from high-volume sources.

• Dual High-Pass Filters: Selectable 75 Hz and 150 Hz filters remove unwanted low-frequency noise and rumble.

• Cardioid Polar Pattern: Focuses on the sound source while reducing off-axis background noise.

• Handles High SPL (146 dB): Perfect for drums and loud instruments without distortion.

• Compact and Lightweight: Slim profile and light weight for easy mounting and positioning.

• Rugged Build Quality: Die-cast zinc construction with a durable black polyurethane finish.

GENERAL SPECIFICATIONS:

• Microphone Type: Condenser

• Application: Instrument (percussive and stringed instruments)

• Polar Pattern: Cardioid

• Wired/Wireless: Wired

• Series: ND Series

• Connector Type: 3-pin XLR

• Power Requirement: 48 VDC phantom power

ACOUSTIC & ELECTRICAL PERFORMANCE:

• Frequency Response: 50 Hz - 20,000 Hz

• Maximum SPL: 146 dB

• Open Circuit Voltage: 10 mV/Pa

• Impedance: 200 ohms (Low-Z balanced)

• Element Type: Self-biased small-diaphragm condenser

FEATURES:

• Pads: Selectable -10 dB and -20 dB attenuation pads

• High-Pass Filters: Selectable 75 Hz and 150 Hz HPF

• Pivoting Head: Locking rotating head for precise mic positioning

DESIGN & CONSTRUCTION:

• Housing Material: Die-cast zinc

• Finish: Black polyurethane paint

PHYSICAL DIMENSIONS:

• Height: 5.63 in (143 mm)

• Diameter: 0.83 in (21 mm)

• Net Weight: 6.31 oz (179 g)

• Shipping Weight: 16.4 oz (465 g)
