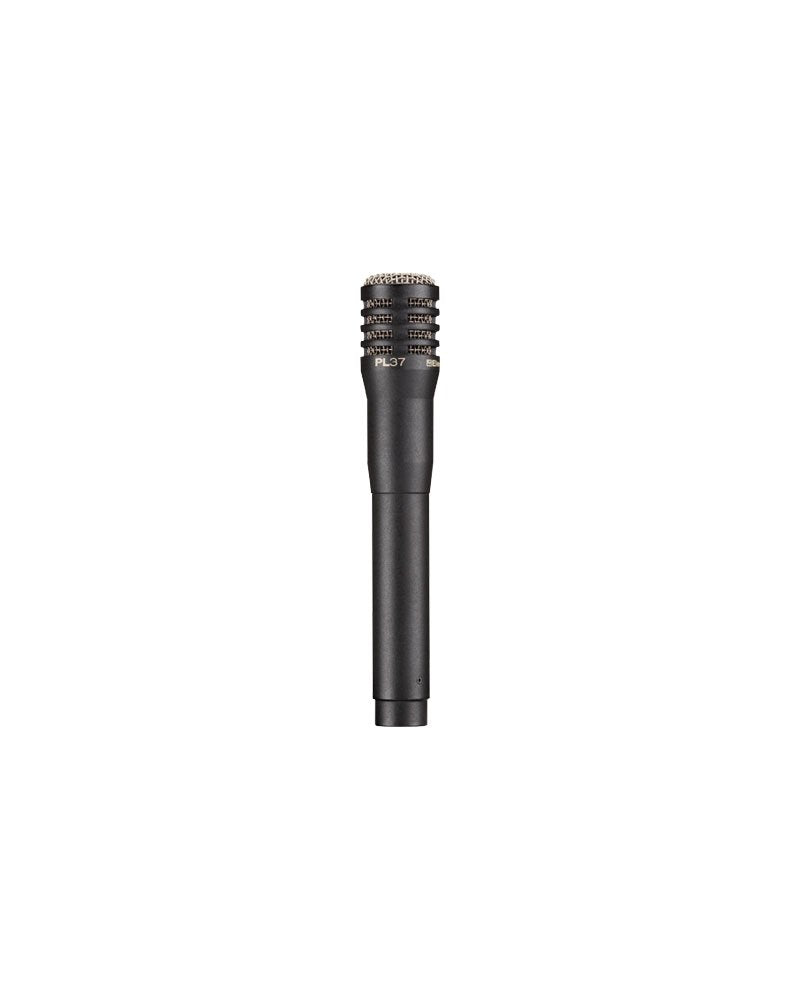

Electro Voice PL37

The PL37 is a small-diaphragm condenser microphone designed to deliver crisp, detailed capture of drum overheads, hi-hats, and acoustic stringed instruments. With a tight cardioid polar pattern, it provides focused pickup and excellent isolation, making it ideal for both stage and studio environments.

Voiced to highlight percussive transients and high-frequency detail, the PL37 offers the precision needed for cymbal work and nuanced instrument tones. Its Memraflex grille ensures durability, and the die-cast zinc construction provides lasting reliability.

• Crisp Detail for Cymbals and Strings: Voiced for drum overheads, hi-hats, and acoustic instruments with precise, high-frequency capture.

• Small-Diaphragm Condenser Element: Delivers accurate transients and natural tone ideal for percussive sources.

• Tight Cardioid Pattern: Focuses on the intended source while minimizing ambient stage or room noise.

• Handles Loud Sources Cleanly: Maximum SPL of 132 dB ensures distortion-free performance with energetic playing.

• Wide Frequency Response: Covers 50 Hz to 16,000 Hz for a full-range sound with plenty of brightness and body.

• Rugged and Reliable Build: Die-cast zinc body and tight-mesh Memraflex grille offer durability in studio and live use.

• Phantom Powered: Operates on 11 to 52 VDC - compatible with most standard mixer and interface setups.

GENERAL SPECIFICATIONS:

• Microphone Type: Condenser (self-biased)

• Application: Overheads, hi-hat, acoustic stringed instruments

• Polar Pattern: Cardioid

• Wired/Wireless: Wired

• Series: PL Series

• Connector Type: 3-pin XLR

• Power Requirement: 11 to 52 VDC phantom power

ACOUSTIC & ELECTRICAL PERFORMANCE:

• Frequency Response: 50 Hz - 16,000 Hz

• Maximum SPL (1% THD): 132 dB

• Dynamic Range: 107 dB

• Open Circuit Voltage: 6 mV/Pa

• Impedance: 200 ohms (Low-Z balanced)

DESIGN & CONSTRUCTION:

• Capsule: Small-diaphragm condenser

• Housing Material: Die-cast zinc

• Finish: Textured satin black

• Grille: Tight-mesh Memraflex grille

PHYSICAL DIMENSIONS:

• Net Weight: 6.21 oz (176 g)
