myMix IEX-16L

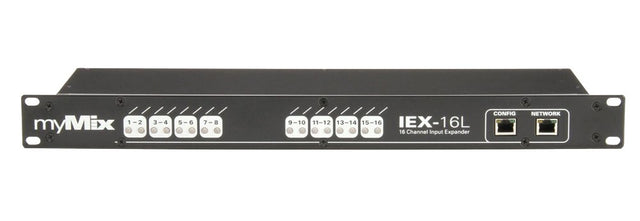

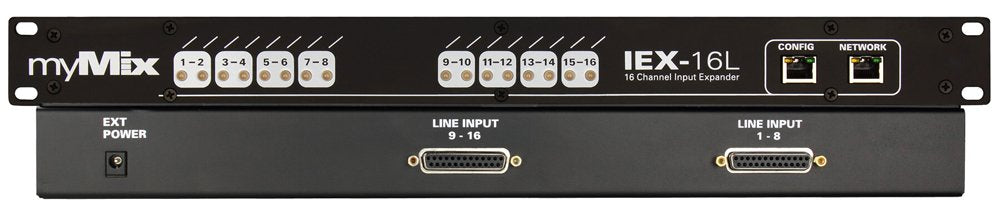

The myMix IEX-16L is a 16-channel input expander designed to enhance the capabilities of the myMix personal monitoring system by providing additional analog audio inputs. Housed in a 1U rack-mountable unit, it offers 16 balanced line-level inputs via two rear-panel DB25 connectors, facilitating seamless integration with mixing consoles, microphone preamps, or other audio sources.

Each input channel features digital gain control with three selectable levels: 0 dB, +6 dB, and +12 dB, allowing precise adjustment to accommodate various signal strengths. Configuration of channel settings, including naming and stereo linking, can be managed from any myMix device on the network or through the optional myMix CONTROL software, with all settings stored internally within the IEX-16L.

• Expand Your myMix System: Adds 16 additional analog audio channels to your myMix network, increasing input capacity for larger setups.

• Analog Inputs: Features two DB25 connectors to provide 16 balanced line-level inputs for seamless integration with external audio sources.

• Flexible Channel Pairing: Allows configuration of inputs in dual mono or stereo modes to suit various mixing requirements.

• Integrated Gain Control: Includes input gain adjustment for precise audio level matching and optimization.

• Simple Network Integration: Connects via standard Ethernet to any myMix device, with settings easily configured through the network.

• Scalable System Design: Supports multiple IEX-16L units for setups requiring extensive audio input capabilities.

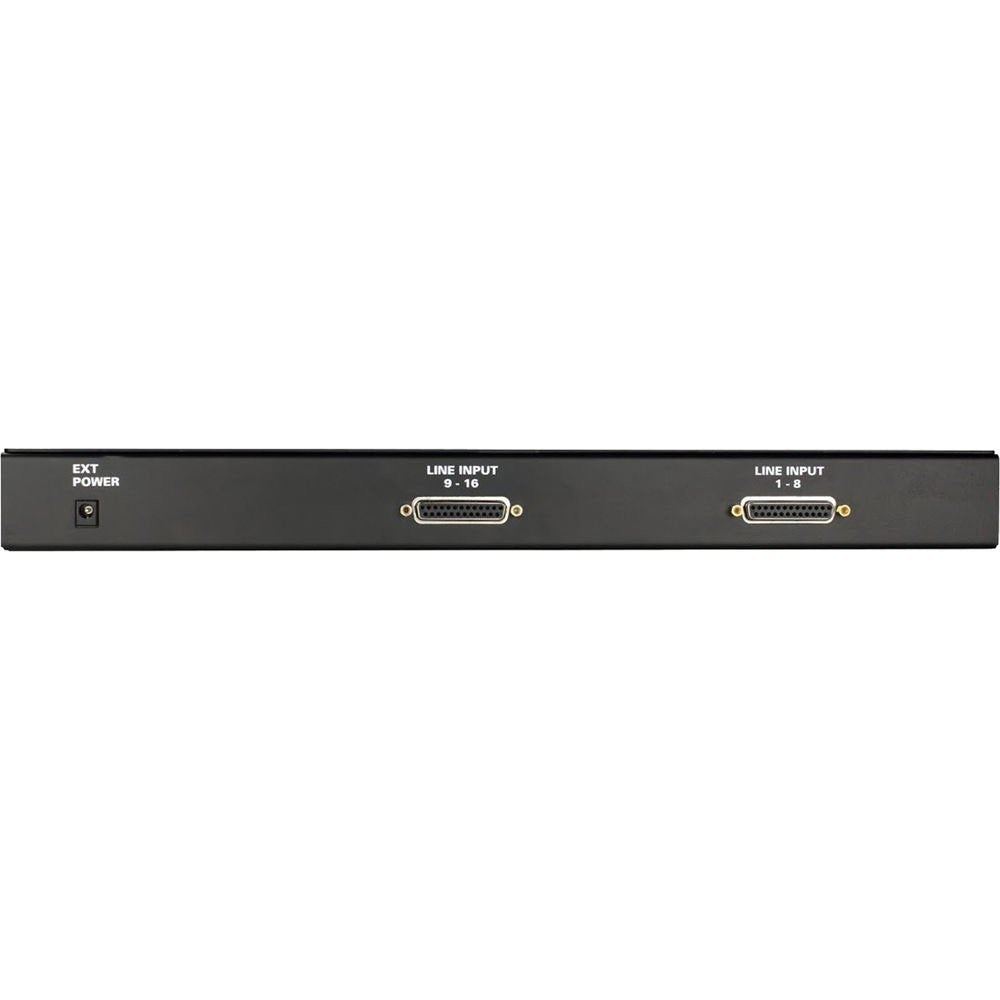

• Audio inputs: 16 balanced line-level inputs via two rear-panel DB25 connectors (8 channels per connector), compatible with mixing consoles, microphone preamps, or active splitter/preamps

• Configuration: Input channels configurable as mono or stereo pairs, channel naming and configuration stored within the IEX-16L unit, accessible from any myMix device or myMix CONTROL software

• Gain control: Three levels of digital gain adjustment per channel (0 dB, +6 dB, +12 dB)

• Networking: Connects to myMix network via Fast Ethernet (100 Mbps) using Cat 5 cabling, supports integration with multiple IEX-16L units, requires managed switch for networks with more than 16 audio channels

• Physical specifications: 1U rack-mountable chassis, dimensions 1.75" (H) x 19" (W) x 5.71" (D), weight approximately 5 lbs (2.27 kg)
