IGS Audio Springtime

The IGS Springtime is a 4-channel analog studio reverb built using pairs of springs. One short and one long pair. Every channel has separate wet and dry volume knobs. Also, each channel has a 3 band EQ for the wet signal.

What it does The Springtime fills your room with sound. It glues your mix and enriches the individual tracks. It adds lovely warm color to the midrange. Without EQ, it sounds perfect. With EQ, you can add more definition if you need it.

Everyday use Try stereo buss send for music tracks to channel 3 and 4 (long springs), mono vocal to channel 1 (short) plus any solo, mono instrument to channel 2 (short). Sometimes even individual instruments can be sent to both kinds of springs in parallel. If you plug it into the insert use 100% Dry and 10% Wet. On sends use 100% Wet, 0% Dry.

BASIC FEATURES:

WET/DRY Mixer: 24-pole Elma Switches

Boost/Cut Range: +/- 15dB

Hard wire bypass: Yes

INPUT & OUTPUT:

Input Impedance (balanced): 10k Ohm

Output Impedance (balanced): 50 Ohm

LEVELS:

Operating Level: +22dBU

Dynamic Range: 120dB

Headroom (@ +4dBu): 18dB

BANDWIDTH:

Frequency response: 20Hz-20kHz, +/-0.1dB

DISTORTION (@ 20 HZ - 20 KHZ):

THD+N: 0.001 @ 1kHz, +4dBU

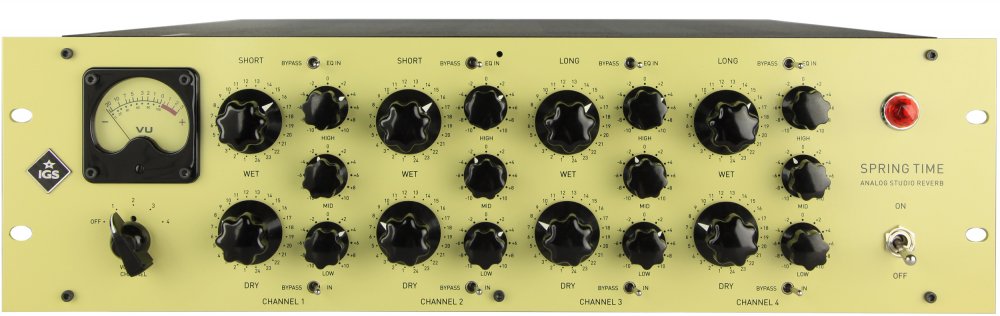

FRONT PANEL:

VU Meters: Output Reverb Level

POWER:

Voltage: 90-240V AC, 10W

PACKING BOX:

Dimensions: 480x480x133mm

Shipping weight: 10kg / 20lb
