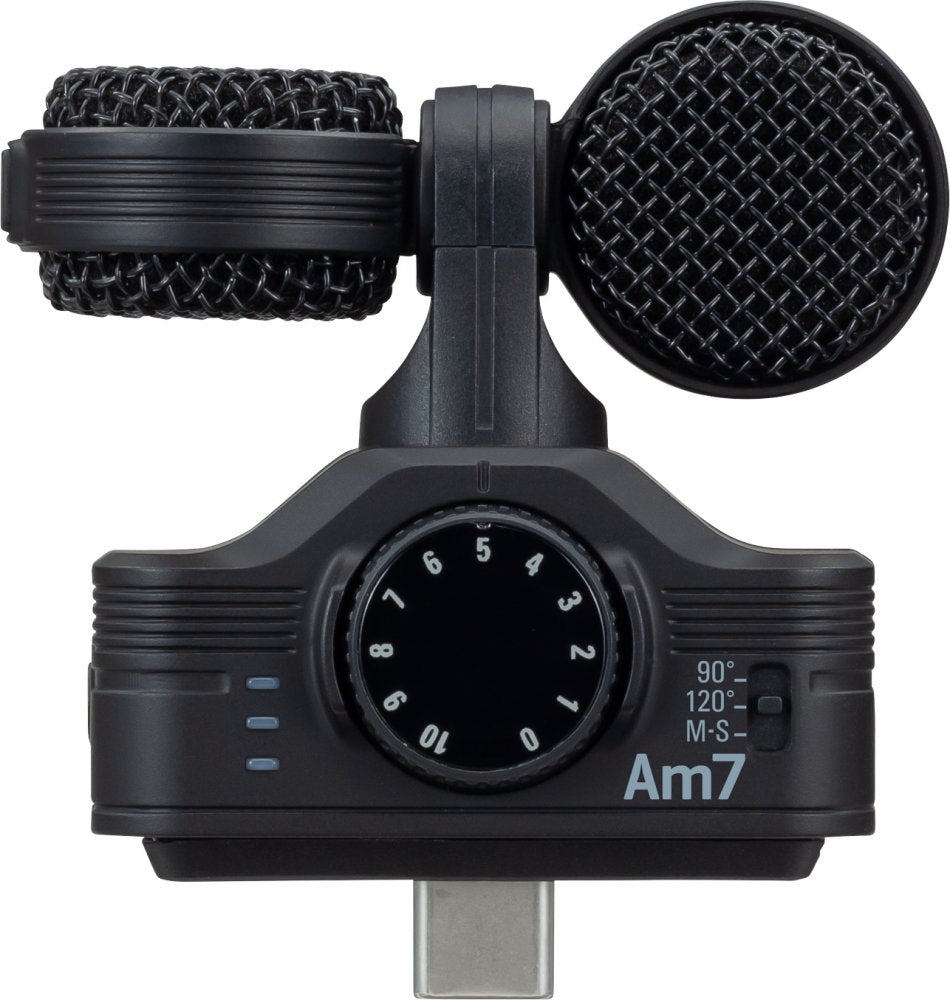

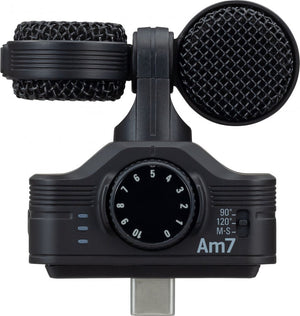

Zoom AM7

The Am7 is the perfect audio companion for your Android device. Ideal for music videos, video podcasts, vlogging and more, the Am7 makes your videos sound as good as they look.

PERFECT STEREO. EVERYTIME. Choose either a 90 standard stereo, 120 for a wider sonic image, or Mid-Side for a custom stereo image.

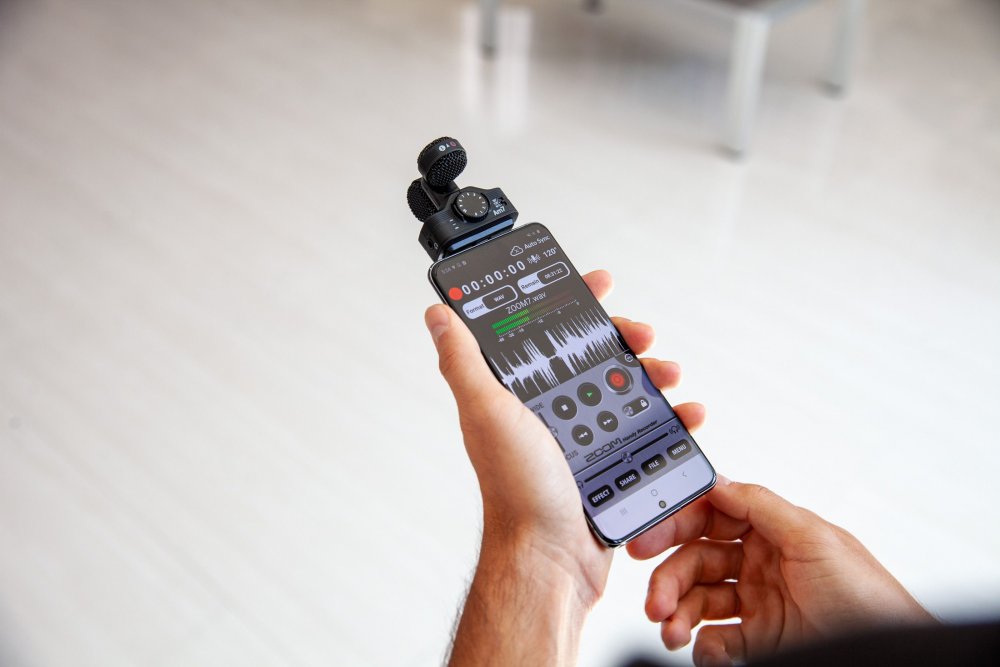

ROTATE & RECORD The Am7 mic position can be rotated to align with your camera to capture audio while recording video. When recording only audio, rotate the mic to the audio position, and point your phone like a mic to the sound you want to record.

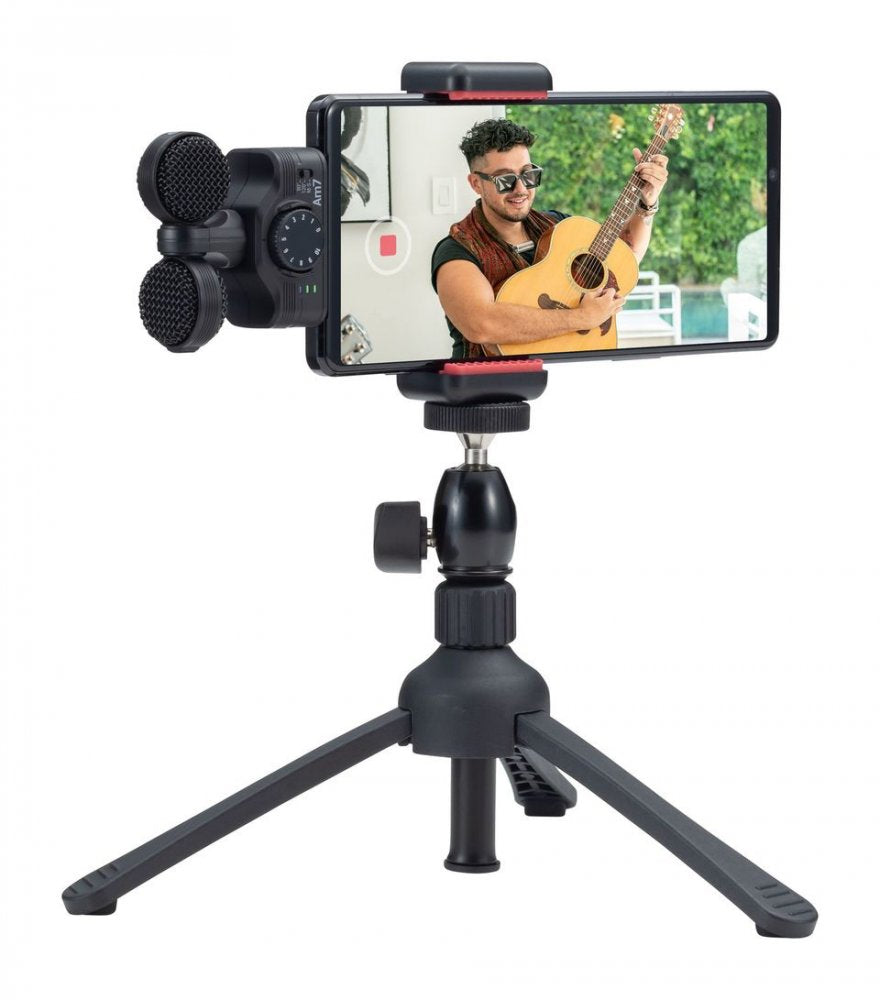

SELFIE MODE The Am7 can also shoot in selfie mode*, allowing you to be in the center of the action.

THE ZOOM HANDY RECORDER APP Available on Google Play, the Zoom Handy Recorder App allows you to record, edit, and share audio from your Android. Upload your creations directly to Soundcloud* or Google Drive.

• High-quality mid-side microphone that connects to Android devices

• Stereo width control

• Two modes: Audio and Video

• Flip to record with the selfie camera

• Works with the ZOOM Handy Recorder App and other audio and video capture apps

• Audio monitoring without latency when using the ZOOM Handy Recorder App

GENERAL SPECIFICATIONS:

• Mid-Side (M-S) stereo condenser microphone

• Designed for Android devices with USB-C connectors

MICROPHONE CONFIGURATION:

• Mid mic: directional, captures front audio

• Side mic: bidirectional, captures ambient sounds

• Adjustable stereo width: 90, 120, or M-S mode

AUDIO QUALITY:

• Sampling rates: 44.1 kHz or 48 kHz

• Bit depth: 16-bit

• Maximum input sound pressure level: 120 dB SPL

CONTROLS:

• Mic gain knob: +3 dB to +43 dB adjustment

• Stereo width switch: 90, 120, M-S

• LED level indicators: display input signal levels

CONNECTIVITY:

• USB Type-C connector: direct connection to Android devices

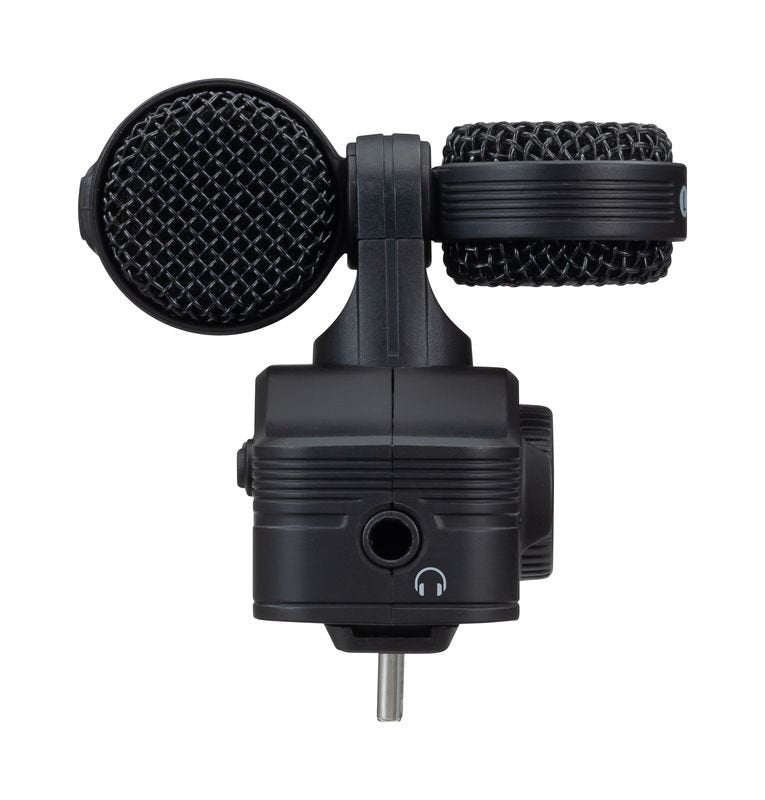

• 3.5mm stereo mini-jack: for headphone monitoring or line output

COMPATIBILITY:

• Compatible with Android devices running Android 10 or later

• Optimized for use with Zoom Handy Recorder and Mobile HandyShare apps

PHYSICAL SPECIFICATIONS:

• Dimensions: 54.5 mm (W) x 57.5 mm (D) x 28.1 mm (H)

• Weight: 31.8 grams
