A Multitude of Devices compressed in one Housing The ADI-2/4 Pro SE is a 2-channel analog input to digital and 4-channel digital to analog output converter in a half-rack (9.5") enclosure of 1 U height. Latest 32 bit / 768 kHz converters offer up to 123 dBA signal to noise ratio. Reference class tech specs throughout are combined with an unprecedented feature set. A powerful DSP adds all kinds of useful audio processing, including 5-band parametric EQ, fast Bass/Treble adjustment, Crossfeed, and a new concept in Loudness sound control.

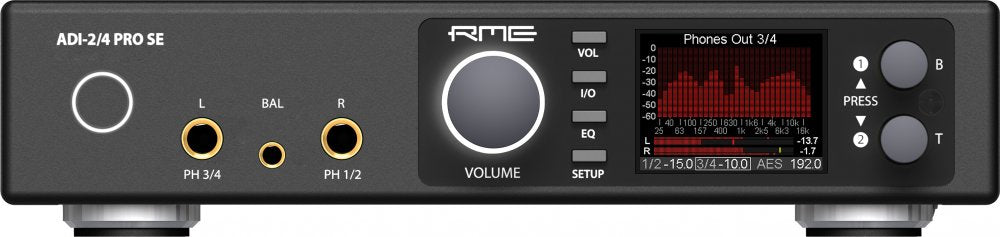

The ADI-2/4 Pro includes two servo-balanced analog inputs on combo XLR / TRS jacks, two separate balanced and unbalanced outputs on XLR and TRS, two stereo Extreme Power headphone outputs on the front for easy balanced operation of all headphones, including IEMs via Pentaconn connector.

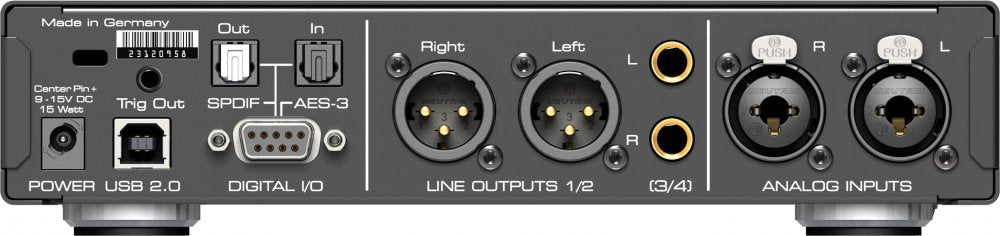

Also available are optical SPDIF I/O, which also understands ADAT, as well as coaxial SPDIF (RCA) and AES I/O (XLR) via an included breakout cable. This universal set of I/O options offers superior quality and flexible connectivity to those who take a no-compromise approach to audio.

With independent balanced outputs for Line and Phones, balanced phones no longer mutes the rear outputs. Balanced Line and Balanced Phones outputs can be used simultaneously, even with different sources/signals. The balanced TRS in the back can be fed from Line 1/2 or Phones 3/4 signal path, perfect for handling insert effects during the mastering process.

A high resolution IPS panel for the graphical operation surface eases operation even more, and displays further functions provided by the DSP, namely Peak level meters, a 30-band analyzer in DIGICheck biquad filter technology, and a State Overview screen listing the current states of SPDIF, AES, USB and clock.

The USB 2.0 port is fully Class Compliant (UAC 2.0) a standard that is natively supported by operating systems like iOS, macOS, Linux and Windows 10 (since 1709), and is also used for firmware updates. Including an external switched power supply with lockable connector, the ADI-2/4 Pro can be easily powered from battery, opening up mobile applications as well as galvanically isolated use cases.

As a computer interface the ADI-2/4 Pro offers a stereo (2 in / 2 out) and a multichannel mode (6 in / 8 out). Compatibility with macOS comes right out of the box. Under Windows the ADI-2/4 Pro uses RME's MADIface series driver, for full WDM and ASIO compatibility and highest performance.

Extreme Power Headphones - The new Reference in Accuracy and Dynamic Range RME's developed Extreme Power headphone stage is now further improved and delivers incredible more powerful headphone outputs (2.1 Watts unbalanced, 3.4 Watts balanced at 32 Ohms, per channel). With a Special IEM mode, the Lower noise Extreme Power design adds additional IEM power states (High power, Low power, IEM) for full IEM compatibility.

All three phones outputs feature mute relay, over-current detection, DC protection, plug detection and DSP control, like auto assigning volume, volume ramp up, auto balanced mode, dual phones mode, user interaction at overload detection, and low impedance level meter auto scaling.

RME's latest True Balanced mode realizes balanced phones operation independent from the XLR outputs. The device now features 2 balanced input channels and 4 balanced output channels. Balanced headphones only use DAC channels 3/4 and the rear outputs can still output an independent signal via DAC 1/2. In True Balanced mode the ADI-2/4 Pro SE's maximum output level rises to +7 dBu for IEM, +13 dBu for Low Power, +25 dBu for High Power. The signal to noise ratio stays unchanged.

Even more Flexible and Powerful The new Trigger Out socket provides a 12 V switching signal via 3.5 mm mono jack plug, which can be used e.g. to switch power amps with Trigger In on and off together with the ADI-2/4 Pro.

In order to make operating the ADI-2/4 Pro SE as flexible as possible, the unit has a universal DC input socket, accepting voltages from 9.5 Volts up to 15 Volts. An internal switching regulator of the latest technology with high efficiency (> 90%) prevents internal hum noise by operating above audible frequencies. Internally the switching regulator is followed by standard linear regulators, followed by super low-noise linear regulators. Therefore the ADI-2/4 Pro SE achieves its technical specs even with less optimal power supplies. Or in other words: the choice of power supply is not critical.

Shortly after the release of the original ADI-2 Pro we received many requests for digitizing vinyl records. Thanks to MM (Moving Magnet) compatibility, the ADI-2/4 Pro SE does not require an external preamplifier anymore and can directly conntected to turntables. It has suitable input impedance, RIAA equalization, and the necessary preamplification.

Extended Multi-Remote Support (MRC) The ADI-2/4 Pro remote control provides buttons for standby on/off, volume, balance, bass and treble, input selection (optical, coaxial, USB), mute, on/off loudness, bass/treble and EQ. In addition, there are four programmable buttons that provide access to 52 different functions and commands for maximum flexibility. There is no other converter or comparable device with such a sophisticated, easy to use and at the same time versatile remote control . To control the ADI-2/4 Pro SE code table 3 needs to be activated so that the SEL LED lights up in red color.

• A high-end AD/DA converter in professional studio quality

• A double headphone amplifier in true high-end quality

• A USB DAC like no other - the most versatile and capable one around

• A high-end AD/DA frontend and headphone amp for iPad and iPhone

• An AD/DA frontend for measurement systems at up to 768 kHz sample rate

• A multi-format converter (AES, SPDIF, ADAT) with monitoring

• An SPDIF/ADAT playback system

• A DSD record and playback solution

• A vinyl player digitizing solution on highest level

ANALOG INPUTS:

XLR/TRS:

Input: XLR and 6.3 mm TRS jack, servo-balanced

Input impedance @ 1 kHz, balanced: 90 kOhm, unbalanced: 45 kOhm

Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +7 dBu, +1 dBu @ 0 dBFS

Digital Trim Gain range: 0 dB up to +6 dB, in steps of 0.5 dB

Signal to Noise ratio (SNR) @ +13/19/24 dBu: >120 dB (AES17), >123 dBA

Signal to Noise ratio (SNR) @ +7/+1 dBu: >120 dB (AES17), 123 dBA

Frequency response* @ 44.1 kHz, -0.1 dB: 0.4 Hz " 20.4 kHz

Frequency response* @ 96 kHz, -0.5 dB: 0.2 Hz " 45.5 kHz

Frequency response* @ 192 kHz, -1 dB: 0.15 Hz " 90.9 kHz

Frequency response* @ 384 kHz, -1 dB: 0.15 Hz " 182 kHz

Frequency response* @ 768 kHz, -1 dB: 0.15 Hz " 348 kHz

THD @ -0.5 dBFS: > -130 dB, 0.0000316 %

THD+N @ -0.5 dBFS: -119 dB, 0.000112 %

Channel separation: > 130 dB @ 1 kHz

* DC Filter None. With Filter RME @ -1 dB: < 0,5 Hz

RIAA MODE VIA TS:

RIAA deviation 20 Hz " 20 kHz: < ±0.05 dB

Input impedance: 45 kOhm @ 1 kHz, input capacitance 150 pF

Sensitivity: +14 dB: 20 mV, +20 dB: 10 mV, +26 dB: 5 mV

Sensitivity: +32 dB 2.5 mV, +38 dB: 1.25 mV

Additional 0 to +6 dB Gain in steps of 0.5 dB via Trim Gain

Maximum input level @ +14 dB: 11.1 mV, -13 dBu

Maximum input level @ +20 dB: 22.3 mV, -19 dBu

Maximum input level @ +26 dB: 44.5 mV, -25 dBu

Maximum input level @ +32 dB: 89.0 mV, -31 dBu

Maximum input level @ +38 dB: 178 mV, -37 dBu

Digital headroom in all Gains, related to sensitivity: 15 dB

Signal to Noise Ratio (SNR), 20 Hz-20 kHz, +14/20 dB Gain: 88 dB, 92 dBA

Signal to Noise Ratio (SNR), 20 Hz-20 kHz, +26 dB Gain: 80.5 dB, 85 dBA

Signal to Noise Ratio (SNR), 20 Hz-20 kHz, +32 dB Gain: 74 dB, 78.5 dBA

Signal to Noise Ratio (SNR), 20 Hz-20 kHz, +38 dB Gain: 68 dB, 73 dBA

THD+N, 20 Hz-20 kHz, +14/+20 dB: -88 dB, 0.004 %

THD+N, 20 Hz-20 kHz, +26 dB: -81.5 dB, 0.0084 %

THD+N, 20 Hz-20 kHz, +32 dB: -74 dB, 0.019 %

THD+N, 20 Hz-20 kHz, +38 dB: -69 dB, 0.035 %

ANALOG OUTPUTS:

1/2 XLR:

Maximum Output Level: +26.5 dBu @ 0 dBFS

Output level switchable +24 dBu, +19 dBu, +13 dBu, +7 dBu, +1 dBu @ 0 dBFS

Signal to Noise ratio (SNR) @ +7/+13/19/24 dBu: 120 dB (AES17), 123 dBA

Signal to Noise ratio (SNR) @ +1 dBu: 119 dB (AES17), 120 dBA

Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz " 21 kHz

Frequency response @ 96 kHz, -0.5 dB: 0 Hz " 44.9 kHz

Frequency response @ 192 kHz, -1 dB: 0 Hz " 90 kHz

Frequency response @ 384 kHz, -1 dB: 0 Hz " 181 kHz

Frequency response @ 768 kHz, -3 dB: 0 Hz " 285 kHz

THD @ 0 dBFS: < -120 dB, 0.0001 %

THD+N @ 0 dBFS: -116 dB, 0.00016 %

Channel separation: > 130 dB

Output impedance @ 1 kHz @ +24/+19/+13 dBu: 213 Ohm

Output impedance @ 1 kHz @ +7/+1 dBu: 113 Ohm

1/2 TS (REAR):

AS OUTPUT XLR, BUT:

Output: 6.3 mm TRS jack, impedance-balanced

Maximum output level: +21.5 dBu @ 0 dBFS

Signal to Noise ratio (SNR) @ +19/13 dBu: 120 dB (AES17), 123 dBA

Signal to Noise ratio (SNR) @ +7 dBu: 119 dB (AES17), 121 dBA

Signal to Noise ratio (SNR) @ +1 dBu: 118 dB (AES17), 118 dBA

Output impedance @ 1 kHz: balanced 213 Ohm, unbalanced 106 Ohm

PHONES 1/2, PHONES 3/4:

AS OUTPUT 1/2 TRS, BUT:

Output: 6.3 mm TRS stereo jack, unbalanced

Maximum output level: +21.5 dBu @ 0 dBFS

Output impedance: 0.1 Ohm

Signal to Noise ratio (SNR) @ +19 dBu (Hi-Power): 120 dB (AES17), 122 dBA

Signal to Noise ratio (SNR) @ +7 dBu (Lo-Power): 119 dB (AES17), 121 dBA

Signal to Noise ratio (SNR) @ +1 dBu (IEM): 118 dB (AES17), 120 dBA

Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +21.5 dBu (9.2 V)

Minimum load impedance IEM @ +1 dBu: 4 Ohm

Minimum load impedance Lo-Power @ +7 dBu: 8 Ohm

Minimum load impedance Hi-Power @ +19 dBu: 24 Ohm

THD @ +20 dBu, 32 Ohm load (1.9 Watts): -124 dB, 0.000057 %

THD+N @ + 20 dBu, 32 Ohm load (1.9 Watts): -118 dB, 0.00011 %

Max power @ 0.001% THD: 2.1 W per channel

Channel separation 20 Hz " 20 kHz: 80 dB @ 32 Ohm

BALANCED PHONES MODE:

AS BEFORE, BUT:

Maximum output level: +27.5 dBu (18.4 V) @ 0 dBFS

Output levels switchable: IEM +7 dBu, Lo-Power +13 dBu, Hi-Power +25 dBu

Output levels switchable: IEM 1.73 V, Lo-Power 3.46 V, Hi-Power 13.8 V

Output impedance: 0.2 Ohm  Signal to Noise ratio (SNR) @ +25 dBu: 120 dB (AES17), 122 dBA

Signal to Noise ratio (SNR) @ +13 / +7 dBu: 119 dB (AES17), 121 dBA

Minimum load impedance IEM @ +7 dBu: 8 Ohm

Minimum load impedance Lo-Power @ +13 dBu: 12 Ohm

Minimum load impedance i Hi-Power @ +25 dBu: 40 Ohm

Max power @ 0.001% THD: 4 W per channel  Channel separation: > 130 dB @ 1 kHz

DIGITAL INPUTS:

GENERAL:

Lock Range: 28 kHz " 200 kHz

Jitter suppression: > 50 dB (> 1 Hz)

Accepts Consumer and Professional format

AES/EBU:

1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992

Input sensitivity 1.0 Vpp

SPDIF coaxial

1 x RCA, transformer-balanced, according to IEC 60958

High-sensitivity input stage (< 0.3 Vpp)

AES/EBU compatible (AES3-1992)

SPDIF OPTICAL:

1 x optical, according to IEC 60958

ADAT compatible

DIGITAL OUTPUTS:

AES/EBU:

1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992

Output level 2.7 Vpp

Format Professional according to AES3-1992 Amendment 4

Single Wire mode, sample rate 28 kHz up to 200 kHz

SPDIF COAXIAL:

1 x RCA, according to IEC 60958

Output level 0.75 Vpp

Format Consumer SPDIF according to IEC 60958

Single Wire mode, sample rate 28 kHz up to 200 kHz

SPDIF optical

1 x optical, according to IEC 60958

Format Consumer (SPDIF) according to IEC 60958

Sample rate 28 kHz up to 200 kHz

DIGITAL:

Clocks: Internal, AES In, SPDIF In, ADAT In

Jitter suppression of external clocks: > 50 dB (> 1 Hz)

Effective clock jitter influence on AD and DA conversion: near zero

PLL ensures zero dropout, even at more than 100 ns jitter

Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation

Supported sample rates for external clocks: 32 kHz up to 200

Internally supported sample rates: 44.1 kHz up to 768 kHz

GENERAL:

Included power supply: external switching PSU, 100 - 240 V AC, 3.3 A, 40 Watts

Standby power consumption DC 12 V: 170 mW

Standby power consumption AC 230 V: 280 mW

Idle power consumption: 14 Watts, Max. power consumption: 30 Watts

Idle current at 12 V: 1.16 A

Dimensions (WxHxD): 215 x 44 x 160 mm (8.5" x 1.73" x 6.3")

Weight: 1.2 kg ( 2.2 lbs)

Temperature range: +5 up to +40 Celsius (41 F up to 112F)

Relative humidity: < 75%, non condensing
