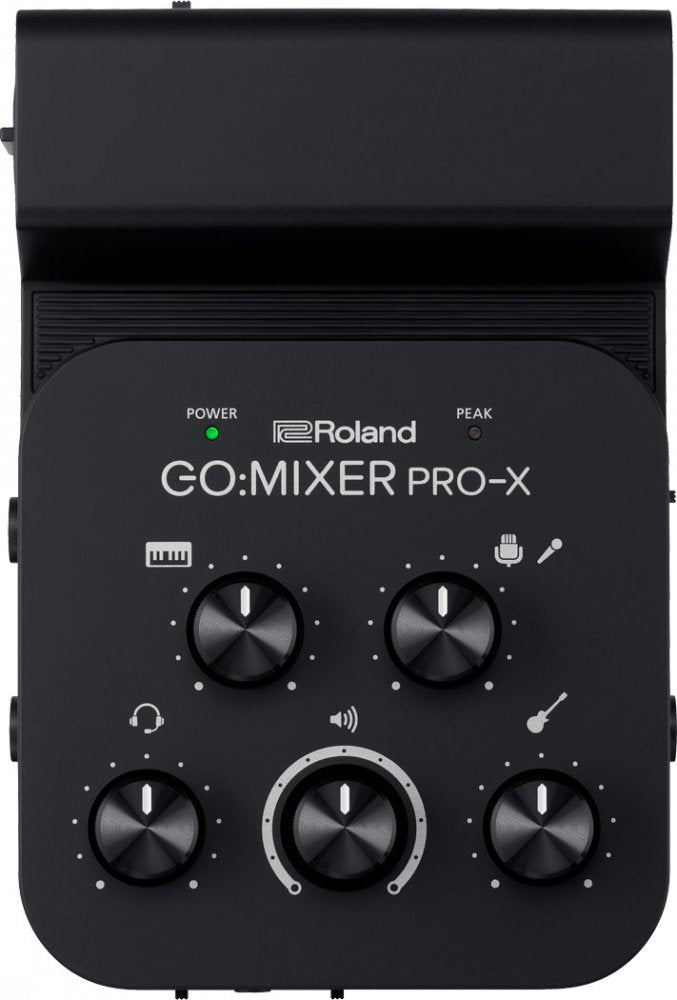

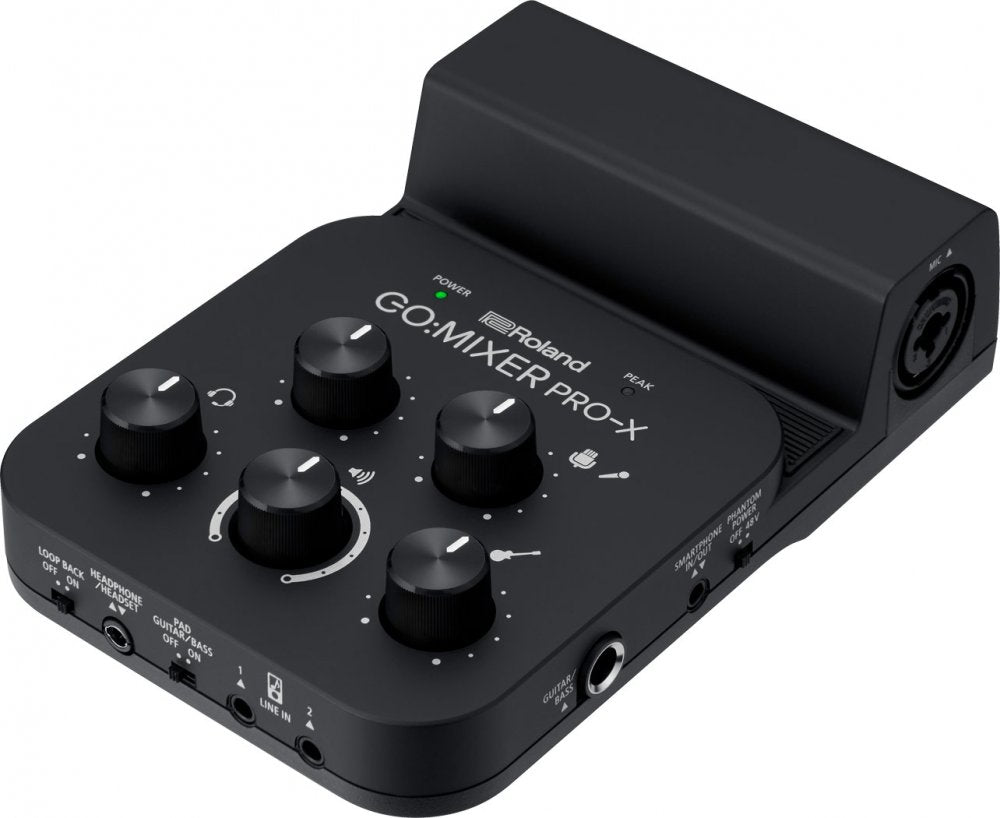

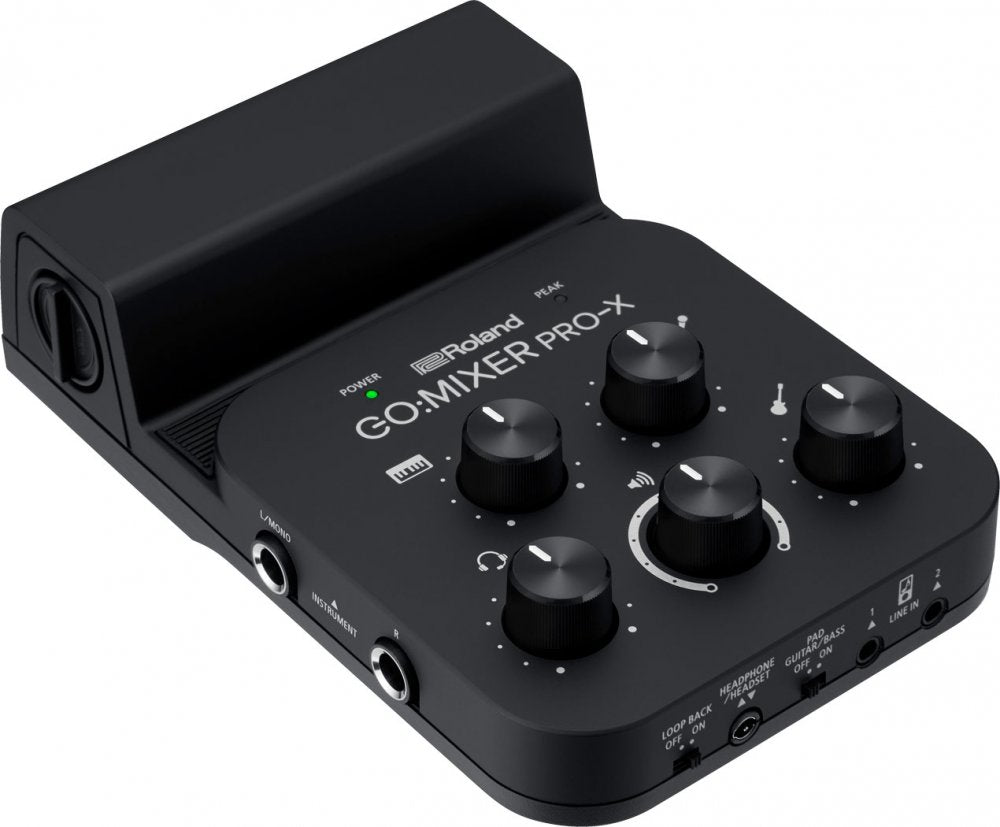

Roland GO:MIXER PRO-X

If you create music videos, web shows, podcasts, or livestreams with a phone or tablet, you need GO:MIXER PRO-X. Audio quality can make or break your presentation, and your device's built-in mic won't cut it if you really want to impress your listeners and keep them engaged. With GO:MIXER PRO-X, you can connect and mix up to seven audio input sources with studio quality-so you'll always sound your best no matter where you are.

• Palm-sized audio mixer for mobile devices

• Multiple inputs-connect microphones, musical instruments, and more

• Combo jack supports standard mics with XLR or ¼-inch plugs; 48 V phantom power available via XLR

• Dedicated guitar/bass input with selectable input pad for active pickups

• Mono/stereo instrument input

• Two stereo line-level inputs with TRS mini jacks

• Mini headphones jack with headset mic support

• Loop Back function for playing along with backing tracks from your mobile device

• USB Micro-B and four-pole TRRS jack for device connection

• Comes with three connection cables: USB Micro-B to USB-C, USB Micro-B to Lightning, and TRRS to TRRS

• Powered by your smartphone or four AAA alkaline batteries

• Easy integration with camera and livestreaming apps

• Also works with Roland Zenbeats and other mobile music production apps

NUMBER OF AUDIO CHANNELS:

Input: 11 channels, Output: 3 channels

CONNECTORS:

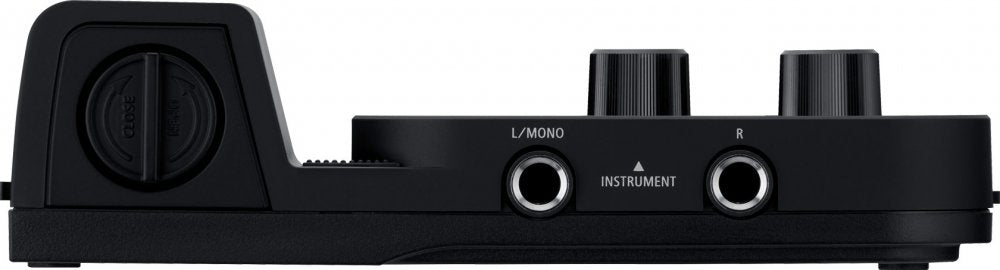

INSTRUMENT (L/MONO, R) jacks: 1/4-inch phone type

LINE IN 1 jack: Stereo miniature phone type

LINE IN 2 jack: Stereo miniature phone type

GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)

SMARTPHONE IN/OUT jack: Stereo Miniature phone type (Stereo, CTIA)

MIC jack: Combo type (XLR, 1/4-inch TRS phone, phantom power DC 48 V, 6 mA max.)

HEADPHONE/HEADSET jack: Stereo Miniature phone type (Stereo, CTIA)

USB port: USB Micro-B type

CONTROLLER:

INSTRUMENT knob

GUITAR/BASS knob

MIC knob

HEADSET MIC knob

HEADPHONE/SMARTPHONE OUT knob

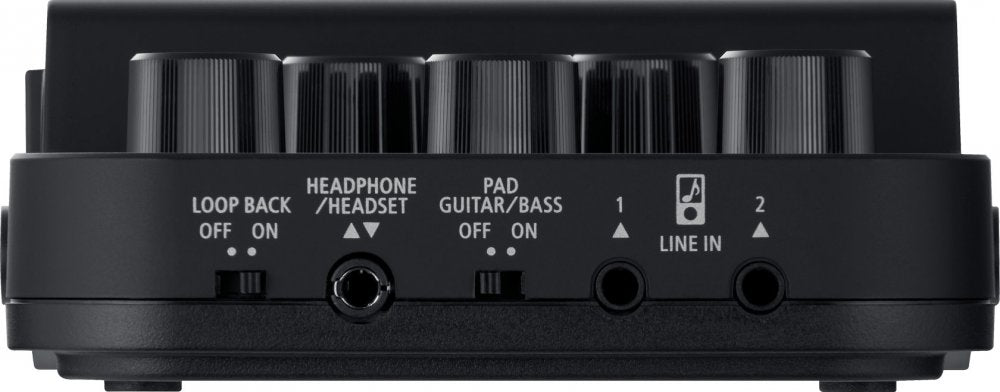

LOOP BACK switch

PAD GUITAR/BASS switch

PHANTOM POWER switch

BATTERY switch

INDICATOR:

POWER indicator, PEAK indicator

POWER SUPPLY:

USB Bus Power

Alkaline battery (AAA, LR03) x 4

Rechargeable Ni-MH battery (AAA, HR03) x 4

CURRENT DRAW:

170 mA

BATTERY LIFE FOR CONTINUOUS USE:

Alkaline battery: Approximately 4 hours

* When setting the [BATTERY] switch to the "ON" position.

* Differs depending on the conditions of use.

ACCESSORIES:

Leaflet "Downloading the Owner's Manual"

Leaflet "USING THE UNIT SAFELY"

Lightning to USB Micro-B type cable

USB Type-C(TM) to USB Micro-B type cable

3.5mm TRRS Audio cable

SIZE & WEIGHT:

Dimensions: 104 (W) x 155 (D) x 41 (H) mm

4-1/8 (W) x 6-1/8 (D) x 1-5/8 (H) inches

Weight (excluding batteries and cables): 215 g, 8 oz

IN THE BOX:

USB Micro-B to USB-C Cable

USB Micro-B to Lightning Cable

TRRS to TRRS Cable

User Manual
