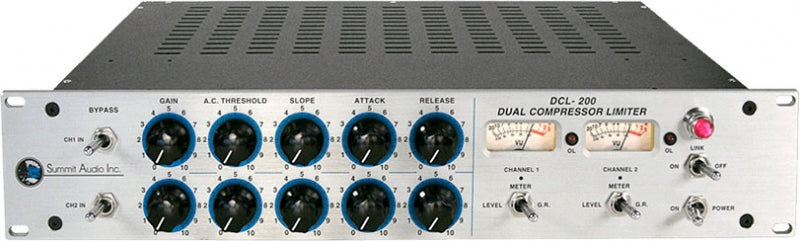

Summit DCL-200

Based on a hybrid design, the DCL-200 combines the most desirable sonic characteristics of vacuum tubes with the increased reliability of solid state devices. DCL-200 circuitry incorporates selected 12AX7A vacuum tubes with high reliability 990 op-amps in a transformerless signal path, giving you an incredibly clean, precise sound, with the overtones and warmth of tube technology.

A mainstay of both the live sound and studio environments, the DCL-200 has helped shape the sound of countless concerts and albums with its crisp yet smooth high frequency response and the sweet low-mid and low tones you get from vacuum tubes. The DCL-200 is an extremely versatile and musical sounding compressor, a go-to piece for tracking, mixing, even mastering. The compression curve and soft knee makes the DCL-200 enhance your audio in a way that is far from sterile without being muddy or pinched.

• Continuously variable attack and release times

• Adjustable threshold

• Variable slope (ratio)

• Output gain control

• Soft-knee transition characteristic

• Stereo link switch

• Dual true VU meters

• Side chain insert

• Bypass switch

SIZE AND WEIGHT:

• Height: 3.5 inches (8.89 cm)

• Width: 19 inches (48.26 cm)

• Depth: 10 inches (25.40 cm)

• Weight: 17 pounds (7.71 kg)

POWER CONFIGURATION:

• Internal AC Supply

• 40watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)

• Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC

COMPRESSOR DATA:

• Release Time: 45 mS to 10 S

• Slope: Adjustable from 1.1:1 to 7:1

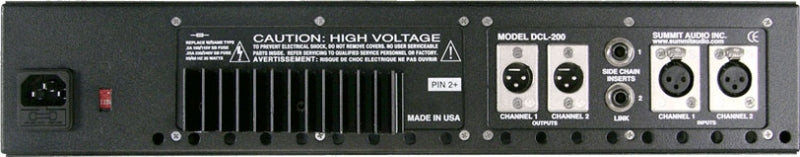

CONNECTIONS:

• Inputs: +4 dB female XLR, Channel 1 & 2

• Outputs: +4 dB male XLR, Channel 1 & 2

• Side Chain: 1/4" jacks

OPERATING MEASUREMENTS:

• Frequency Response: 5 Hz to 70 kHz

• Noise: Less than -80 dBu at unity, 10 Hz to 80 kHz

• Distortion: Less than 0.05% at +4 dBu

• Output impedance is 75 W. The recommended output load is

• 600 W or more. Maximum output approaches +30 dBu.
