Swit M-1093F

Input/Output Interfaces - SDI / HDMI / CVBS / Analog Audio

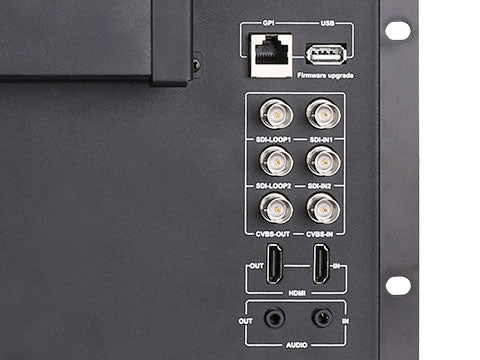

Each LCD of M-1093F supports: 2K/3G/HD/SD-SDI input x 2 2K/3G/HD/SD-SDI loop output x 2 HDMI 1.3 input x 1 HDMI 1.3 loop output x 1 CVBS input x 1 CVBS loop output x 1 3.5mm analog audio input x 1 3.5mm analog audio output x 1

Video Analysis Assistant Pattern - Waveform / Vector scope / Histogram M-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded Audio Monitoring - Up to 16-ch meters with alert and select output M-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display - TSL 3.1 / 4.0 Protocol M-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

3-color TALLY Light - RJ45(RS485) input signal There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can define the pins of RJ45 port to control the TALLY lights.

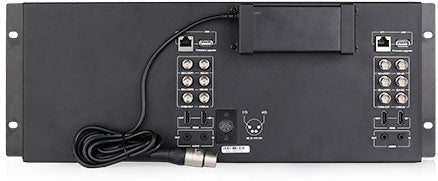

Power Supply M-1093F provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation M-1093F is standard 19" rack mount fixing, occupies 4U height. The monitor is ±30 up and down rotatable when installed on racks.

M-1093F offers the following accessories as standard package: 1x 4-pin XLR power adaptor 2x LCD protective film

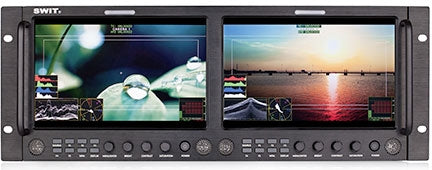

• 9-inch IPS LCD Panel x2

• 1920x1200 resolution, 800:1 contrast

• 19-inch 4U rack mounting, ±30 rotatable

• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

• 16-ch Embedded audio meters with alert

• Select any 2 audio channels to output

• Waveform Y/Cb/Cr/R/G/B and single line

• Vector scope, histogram R/G/B/Y

• AFD, H/V delay, R/G/B/Mono, False color

• TSL UMD and text TALLY display

• Zebra stripes, Peaking focus assist

• SDI timecode display

• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

• TALLY light and GPI control

• USB firmware upgrade M-1093F PDF

WAVEFORM - Y/PB/PR/R/G/B AND SINGLE LINE:

The waveform is a pattern to measure and display the brightness and its distribution of every column of the input video, separates the Y, Cb, Cr, R, G, B channels, and support single line waveform. You can select 0-1079 lines of the image, to display waveform of this single line.

The color of waveform pattern can be selected from white, green and false color, and display position can be selected from 4 corners and center in larger size, also the translucence of the pattern can be adjusted.

VECTOR SCOPE:

The vector scope pattern is to visualize the chrominance of input video signal by the distribution of color in the image on a circular scale. It represents saturation as distance from the center of the circle, and hue as the angle, in standard position around it. So you can see how saturated the image is and where the pixels in the image land on the color spectrum.

The vector scope pattern is divided into 6 districts, and stands for Red, Magenta, Blue, Cyan, Green and Yellow in different directions. The larger box stands for the color in 100% colorbar, and the smaller box stands for 75% colorbar. The color of vector pattern can be selected from white, green and false color, and display position can be selected from 4 corners and center in larger size, also the translucence of the pattern can be adjusted.

HISTOGRAM - R/G/B/Y PARALLEL DISPLAY:

The histogram is a bar graph that shows the distribution of R/G/B/Y(Luma) values in the image. The histogram is takes broadcast standard safety highest value as 100%, and 107% as the real highest value. The R/G/B/Y distributions between 100% and 107% are considered as ineffective values in broadcast standard, and marked in yellow to warn.

The histogram pattern display position can be selected from 4 corners, and the translucence of the pattern can be adjusted.

AUDIO METER LEVEL - WITH ALERT INFO AND SELECT ANY 2 CHANNELS TO OUTPUT:

Support SDI & HDMI embedded audio meters display, and 3G/HD-SDI displays 16-ch, SD-SDI and HDMI displays 8-ch. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB. You can also select any 2 channels audio to output via 3.5mm socket or speakers.

The audio meters support audio abnormal alert info display, for example if the channel has no audio signal, the audio meter position will display "UNLOCKED", and if the channel has audio signal but no volume, it will display "MUTE".

The audio meters can be selected to display only 2 channels or only 8 channels, and support alert info on/off switch, markers on/off switch, and display position can be selected from 4 corners, also the translucence of the pattern can be adjusted.

LCD PERFORMANCE:

Size: 9 inches x2

Display area: 191.52x119.70mm

Resolution: 1920x1200

Aspect ratio: 16:9 (4:3 adjustable)

Brightness: 450cd/m2

Contrast: 800:1

Color: 16.77 million colors

Viewing angle: Horizontal: 170; Vertical: 170

INPUT (EACH LCD):

BNC x2: 2K/3G/HD/SD-SDI input x2

BNC x1: Composite input

HDMI x1: HDMI input

3.5mm x1: Analog audio input

OUTPUT (EACH LCD):

BNC x2: 2K/3G/HD/SD-SDI loop output

BNC x1: Composite loop output

HDMI x1: HDMI loop output

3.5mm x1: SDI, HDMI, Analog audio output

VIDEO FORMAT:

CVBS: NTSCPAL

SDI:

SMPTE 2048-2 2048x1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60), 2048x1080i (50 / 59.94 / 60)

SMPTE-425M: 1080p (60 / 59.94 / 50)

SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M: 720p (60 / 59.94 / 50)

SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)

HDMI:

480i/ 576i / 480p / 576p

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

1080psf (30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

GENERAL:

Working voltage DC / battery: 6.5V-24V

Power consumption: 36W

Working temperature: 0C+40C

Working humidity: 10%90%

Storage temperature: -15C+60C

Storage humidity: 10%90%

Dimensions: 484x177x112.8mm

Net weight (main body): 2.8kg
