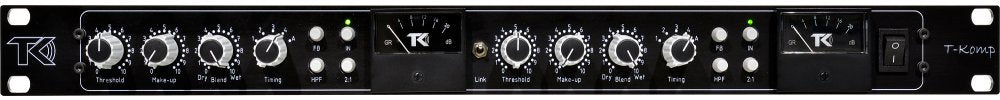

TK Audio T-KOMP

The ratio is level dependent and increases with the signal level, a feature that will give you numerous possibilities.

To make the T-Komp more useful it has two ratio ranges. The first one goes up to 20:1, perfect for instrument tracking and smashing drums etc., the second, 2:1, is a more narrow range which makes it more suitable for bus compression.

The T-Komp can be selected between feed-forward mode for a punchy, modern response or feed-back mode with a smoother, more musical response.

The RMS detector has five settings, four from fast to slow where number four, the slowest, is similar to the old 160VU. The fifth position is a program dependent adaptive mode.

• Ratio which increases with the signal level

• Two ratio ranges, 1:1 to 20:1 or 1:1 to 2:1

• Feed-forward or feed-back mode

• Five RMS settings, fast to slow and an adaptive mode

• Blend control for parallel compression

• Input impedance: 24kohm

• Output impedance: 50ohm

• Max in/output level: +26dBu

• Frequency response: 20Hz to 20kHz +/- 0,1dB

• Signal to noise ratio @ 0dBu: better than 94dB

• THD: level and compression dependent, mostly even harmonics

FEATURES:

Threshold

Make-up gain: 0 to +20dB

Blend control: from dry to wet

Timing

fast

medium fast

medium slow

slow (160VU)

program dependent adaptive mode

FB: selects feed-back mode

HP filter: 150Hz, -6dB octave

In: compression in/out

2:1: selects a more narrow ratio range

Gain reduction meter

Link switch

115v or 230v, selectable
