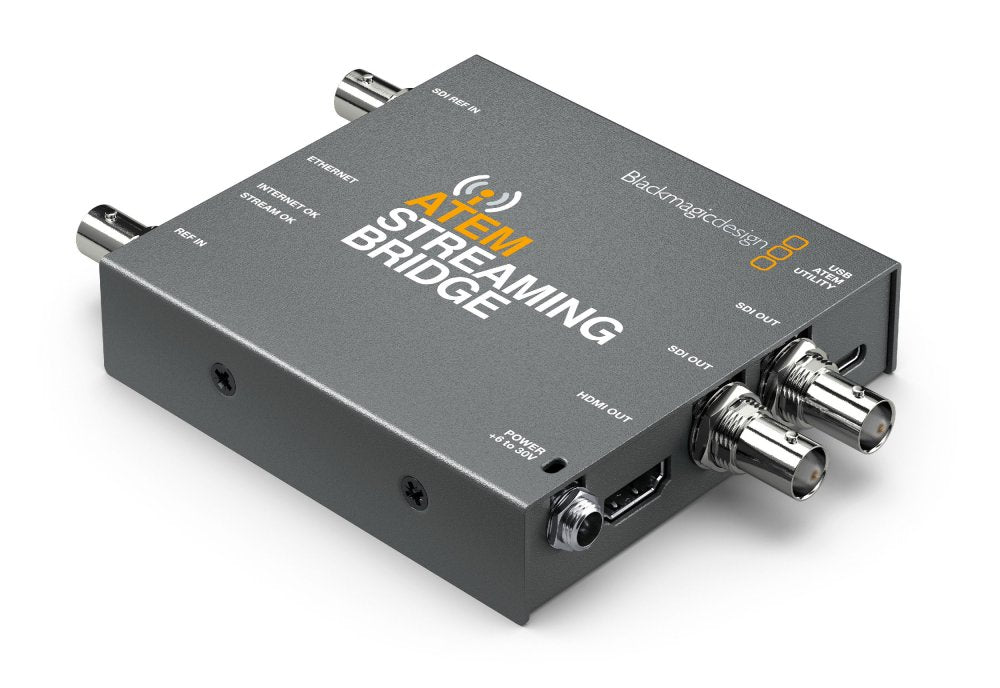

Blackmagic Design ATEM Streaming Bridge

Stream to Yourself with ATEM Streaming Bridge!

You can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini as a remote broadcast studio!

• Up to 1080p60 Resolution Output

• Direct, Network, and Internet Connection

• HDMI and SDI Outputs

• IP Addressable, Software Controllable

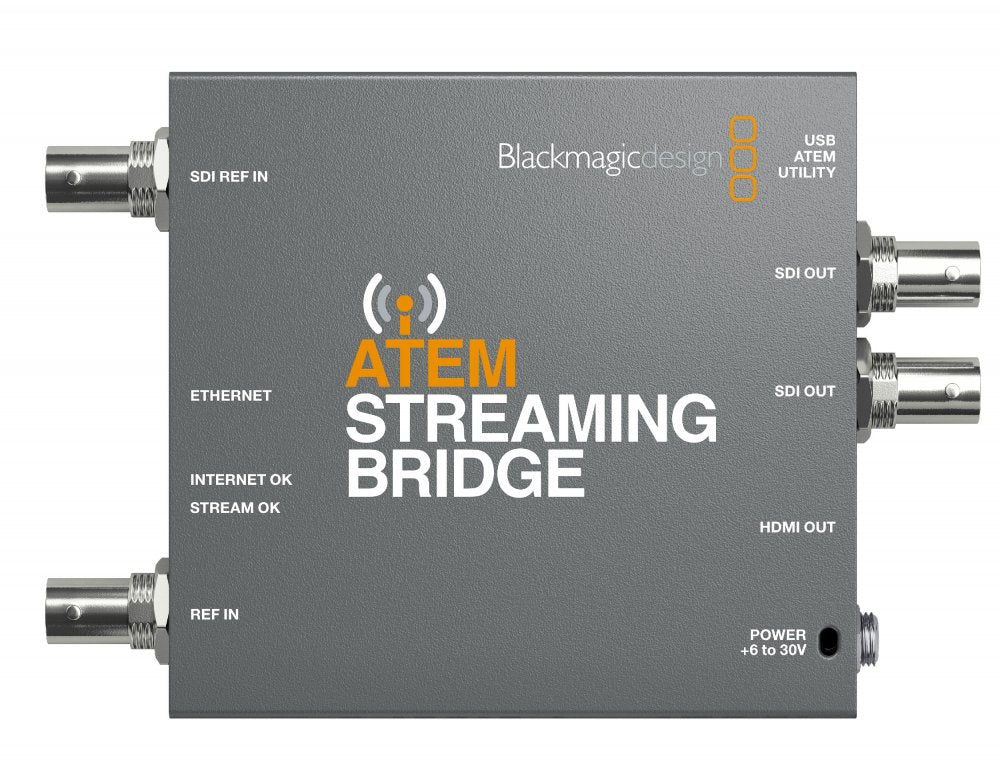

CONNECTION:

• SDI Reference Inputs: 1 x 3G-SDI

• SDI Video Outputs: 2 x 3G-SDI

• SDI Audio Outputs: 2 Channels embedded in HD-SDI

• HDMI Video Output: HDMI type A out

• HDMI Audio Outputs: 2 Channels embedded in HDMI

• SDI Rates: 1.5G, 3G

• Reference Input: Black burst and Tri'Sync

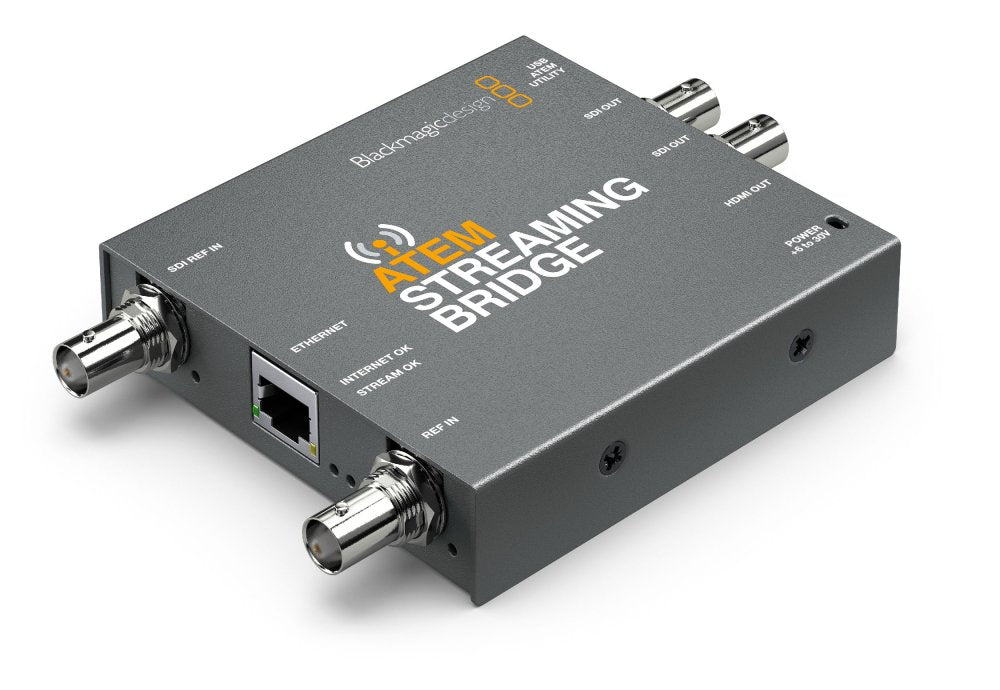

• Ethernet: Ethernet supports 10/100/1000 BaseT

• Updates and Configuration: 1 x USB Type-C for software configuration and software updates

STANDARDS:

• SDI Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

• HDMI Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M'B, SMPTE 425 Level A and Level B

• SDI Video Sampling: 4:2:2

• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit

• SDI Color Precision: 10-bit

• SDI Color Space: YUV

STREAMING:

• Streaming Input: ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini Pro and ATEM Mini Pro ISO

POWER REQUIREMENTS:

• Power Supply: +12V universal power supply included with international socket adapters for all countries.

• Power Consumption: 6W max

• Operational Voltage Range: 6 - 30V DC

ENVIRONMENTAL SPECIFICATIONS:

• Operating Temperature: 0 to 40 C (32 to 104 F)

• Storage Temperature: -20 to 60 C (-4 to 140 F)

• Relative Humidity: 0% to 90% non'condensing

WHAT'S INCLUDED:

• ATEM Streaming Bridge

• 12V universal power supply with international socket adapters
