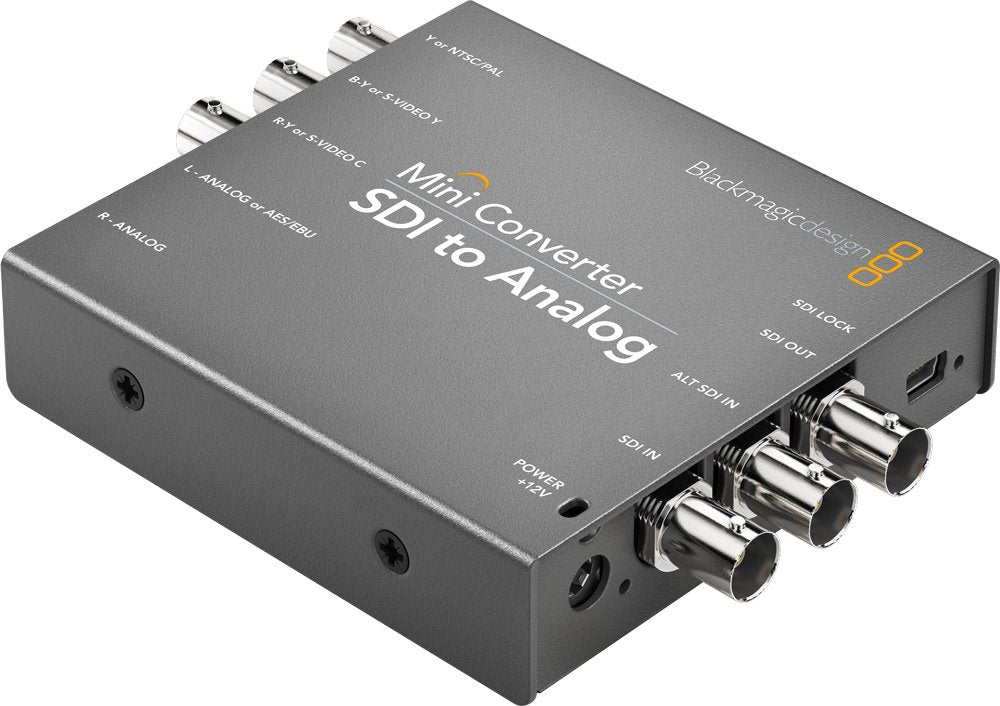

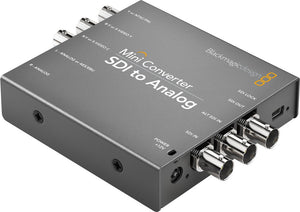

Blackmagic Design Mini Converter - SDI to Analog

The world's smallest USB powered broadcast converters! The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.

Pocket sized broadcast quality converters! Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them to turn any computer display, television or video projector into a high quality color calibrated broadcast monitor. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending HDMI long distances using SDI.

Precision engineered broadcast grade converters! Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

The perfect way to convert from SD and HD-SDI to analog component, s-video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s-video and composite. Audio can be de'embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don't need the extra cost of the 6G-SDI 4K model.

• Support for SD and HD input formats up to 1080p30

• Includes a down converter to convert from HD to standard definition analog formats such as s'video and composite

• Audio can be de'embedded to balanced analog or AES/EBU

• Auto detection of SD, HD or 1.5G-SDI

• Automatically switches over if main SDI input is lost

CONNECTIONS:

SDI VIDEO INPUTS:

1 x SD, HD or 1.5G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails.

SDI VIDEO OUTPUTS:

1 x SDI Loop Output.

SDI RATES:

270Mb, 1.5G

ANALOG VIDEO OUTPUTS:

NTSC, PAL, S-Video and component SD/HD from 1.5G-SDI input.

ANALOG AUDIO OUTPUTS:

2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

DIGITAL AUDIO OUTPUTS:

2 channels of balanced AES/EBU audio.

SDI REDUNDANT INPUT:

Automatically switches over if main SDI input is lost.

MULTI RATE SUPPORT:

Auto detection of SD, HD or 1.5G-SDI.

UPDATES AND CONFIGURATION:

USB

RECLOCKING:

Yes
