Weiss INT204

Your favorite D/A converter may not be the latest but you like its sound, appearance and features. So you don't want to buy another expensive DAC just to connect a computer. This is where our interfaces come in. The INT204 allows any DAC to be connected to a USB ported computer. This is done, optimally, by slaving to the computer's internally generated clock with absolute bit transparency. The INT204 is a USB to AES/EBU (unidirectional) interface which also handles DSD to PCM conversion. DSD files played to the INT204 result in conversion to PCM at a, selectable, sampling frequency and word-length. So your trusted D/A Converter becomes a DSD capable DAC.

MECHANICS:

The INT204 is housed in a silver anodized aluminum frame.

POWER SUPPLY:

Two power sources are required for the INT204. One is the bus power fed via the USB connector, the other is an external power supply which is supplied with the INT204 unit. This scheme allows to have the input and output sections of the INT204 galvanically isolated.

SYNCHRONIZATION:

The sampling frequency is generated with an internal generator in the INT204. This makes sure the transfer between computer and D/A Converter is low jitter.

DIGITAL INPUT:

A USB type B connector is used a connection to the computer.

DIGITAL OUTPUTS:

There are one XLR socket, one BNC socket and one RCA socket. BNC and RCA sockets are driven by the same driver chip.

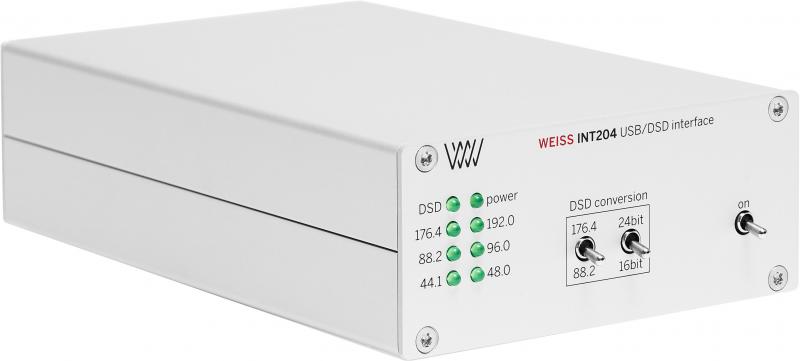

FRONT PANEL CONTROLS:

There are eight LEDs for sampling frequency display and power status. A switch allows to select the sampling frequency when doing DSD to PCM conversion (176.4 or 88.2 kHz). Another switch selects the word-length when doing DSD to PCM conversion (24 or 16 Bit). A power switch handles the power on/off for the external power supply input.

BACK PANEL ELEMENTS FROM LEFT TO RIGHT:

There is a power inlet for the external power supply, the USB connector, the three output connectors (BNC, RCA, XLR).

SOFTWARE FEATURES:

The INT204 can do DSD to PCM conversion at selectable sampling frequencies and word-length (88.2 or 176.4 kHz and 16 or 24 Bit). The DSD input is in the DoP format with a sampling frequency of DSD64 (2.8224 MHz).

POWER:

External power supply, requirement is 6...9V at 0.15 A

SIZE:

Depth: 16,5 cm

Width: 10,5 cm

Height: 4,4 cm

Height with feet: 4,7 cm

:

AVAILABLE COLOR:

Silver

Digital Input

(1) USB type B connector

:

DIGITAL OUTPUTS:

(1) BNC connector

(1) RCA connector

(1) XLR connector

Word-length up to 24 Bits

Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

SYNCHRONIZATION:

Sampling frequency is generated internally

Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, DSD64

DSP ALGORITHMS:

Conversion from DS64 to PCM at 88.2 kHz or 176.4 kHz and 16 Bits or 24 Bits
