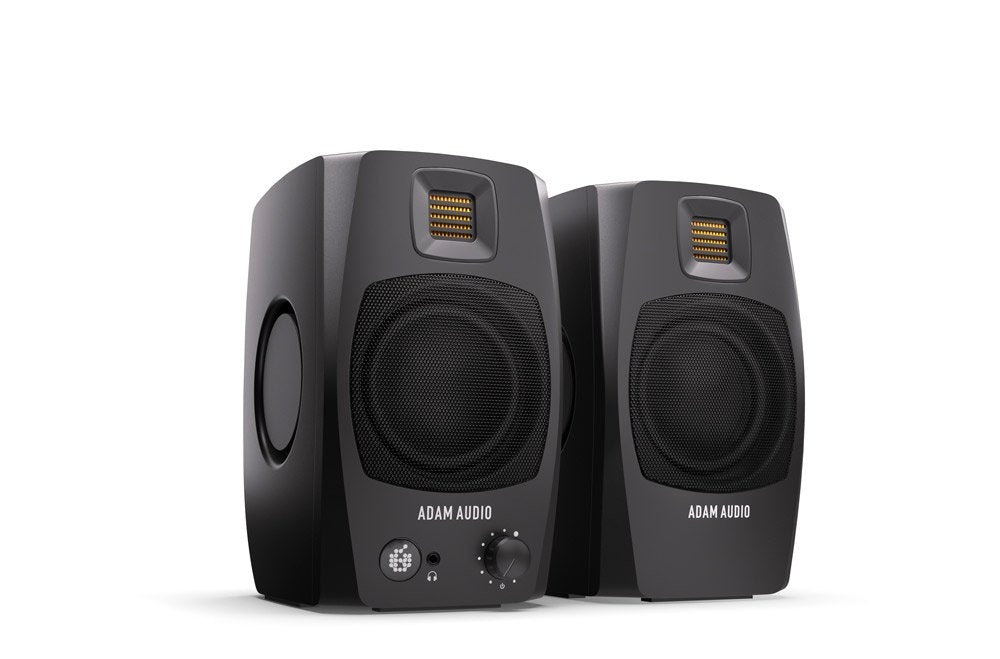

ADAM D3V Monitors Black

The D3V is an active desktop monitoring system designed for songwriters, producers, office workers, and music lovers who want to enjoy ADAM Audio sound quality as conveniently as possible. Available in white or black editions, the active monitors feature the iconic golden ribbon tweeter and stay true to ADAM Audio's German industrial design heritage.

A distinct advantage of the D3V is the USB-C port. This allows for the transmission of uncompressed audio without the need for an additional audio interface. This digital signal is reproduced to impeccable detail through the woofers and ribbon tweeters " technology that ADAM Audio has been refining for 25 years " and is of far superior quality to audio transmitted wirelessly.

• High-Quality Sound: Delivers precise audio with a 3.5" aluminum woofer and advanced ribbon tweeter for clear, balanced sound across all frequencies

• Plug-and-Play Connectivity: USB-C input allows direct connection to computers and mobile devices without an audio interface

• Versatile Inputs: Offers both digital USB-C and balanced analogue inputs for flexible audio connections

• Room Acoustic Adjustments: Features backplate switches to adjust for speaker placement and room acoustics

• Compact Design: Comes with detachable angled stands and microphone stand mounting options

• Convenient Front Controls: Includes a headphone jack and volume control for easy access

• Durable Construction: Built with high-grade injection-molded polycarbonate to reduce vibrations

ACOUSTICS:

• Frequency Response @ -3 dB: 48 - 22.6 kHz

• Frequency Response @ -6 dB: 45 - 23.2 kHz

• Maximum SPL at 1 m: 92 dB (RMS), 96 dB (Peak)

• Crossover Frequency: 4.0 kHz

DRIVERS:

• Woofer: 3.5" single-piece aluminum cone

• Passive Radiators: Dual-sided 3.5" (2 per speaker)

• Tweeter: 1.5" D-ART (Desktop Accelerated Ribbon Tweeter)

• Woofer Voice Coil Diameter: 25 mm (1")

• Tweeter Velocity Transform Ratio: 4:1

AMPLIFICATION:

• Woofer Amplifier Type: PWM

• Woofer Amplifier Output (Peak): 2 x 80 W

• Woofer Amplifier Output (RMS): 2 x 70 W

• Tweeter Amplifier Type: PWM

• Tweeter Amplifier Output (Peak): 2 x 40 W

• Tweeter Amplifier Output (RMS): 2 x 30 W

SIGNAL PROCESSING:

• A/D Converter: 24-bit

• Internal Sample Rate: 48 kHz

• Processing Bit Depth: 28-bit

• Latency: 4.0 ms

• Protection: Independent peak and thermal limiters

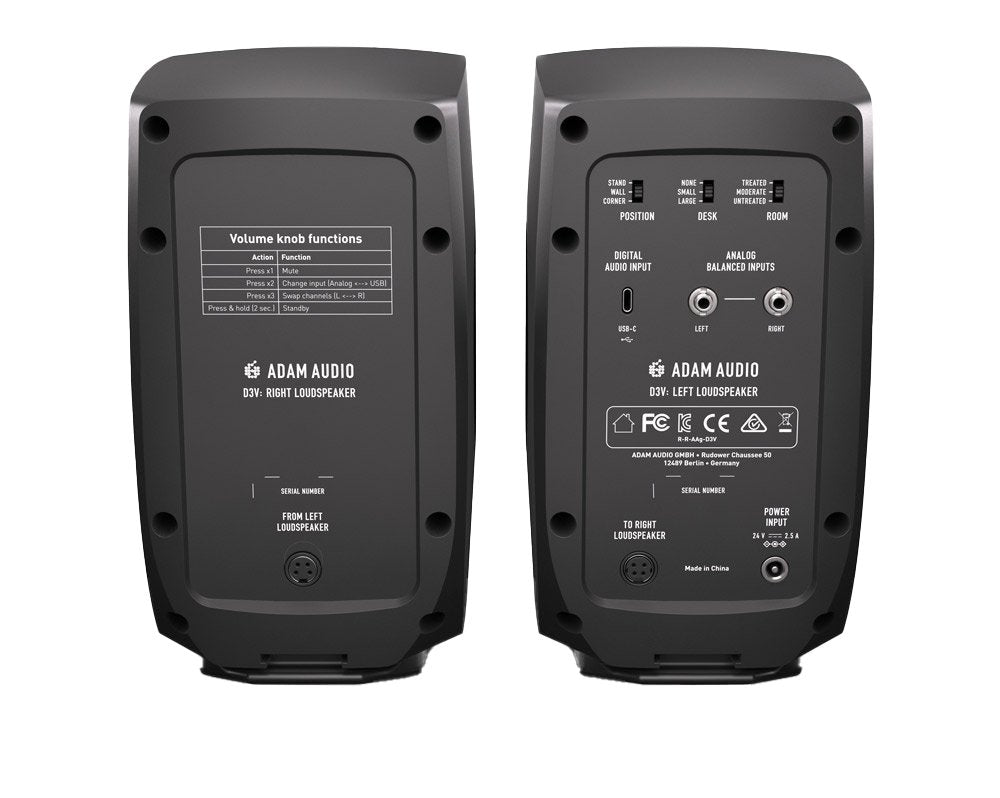

INPUTS/OUTPUTS:

• Digital Input: USB-C

• Digital Signal: Class-compliant USB 1.1

• Sample Rates Supported: 32, 44.1, 48 kHz

• Bit Depth: 24-bit

• Analog Input: 2 x balanced 6.3 mm jack

• Headphone Output: 3.5 mm TRS mini-jack

CONTROL OPTIONS:

• Input Sensitivity: 0 dBu = 88 dB SPL at 1 m

• Volume Control Range: -∞ dB to +6 dB

• Volume Knob Functions: Mute, Standby, Input Select, Channel Swap

• Input Selection: USB-C, Analog

• Channel Order: Normal, L/R Swapped

• Room Adaptation Controls: Position (0, -3, -6 dB), Desk (0, -3, -6 dB and 0, -2, -4 dB), Room Acoustics (0, -1.5, -3 dB)

CABINET DESIGN:

• Material: Injection-molded ABS Polycarbonate

• Shape: Dual passive radiator design

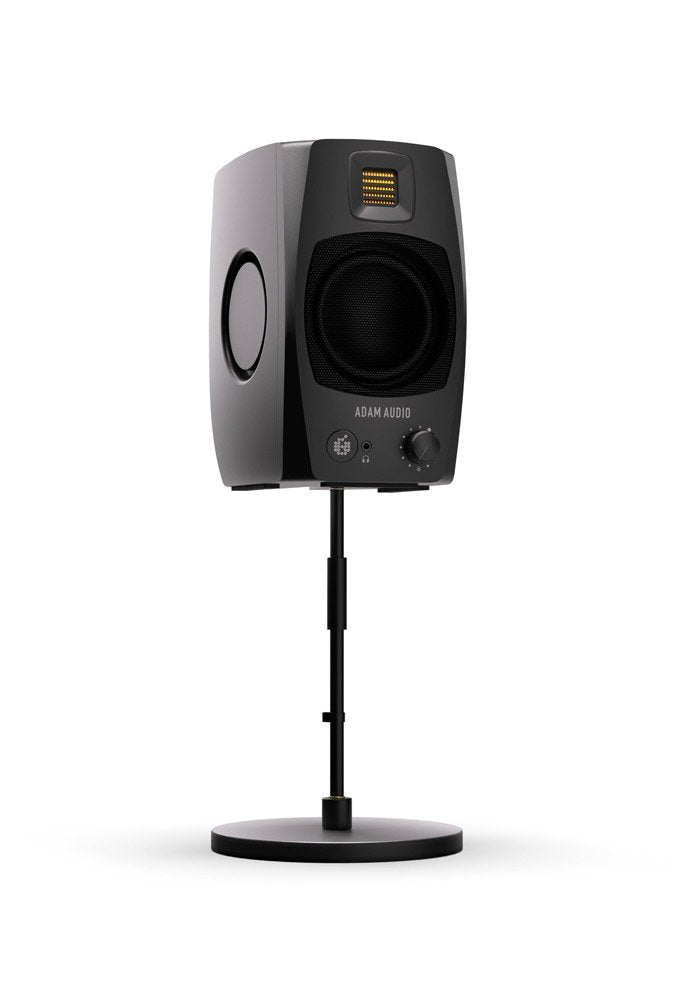

• Mounting: Flat, angled (15 with included stands), 3/8" threaded insert for microphone stand

• Dimensions (W x H x D): 115 x 200 x 150 mm (without stand)

• Dimensions with Stand (H): 240 mm

POWER:

• Voltage: 100-240 V, 50/60 Hz

• Power Rating: 60 W max

WEIGHT:

• Left Speaker: 1.85 kg (4 lbs 1 oz)

• Right Speaker: 1.73 kg (3 lbs 13 oz)

• Shipping Weight: 5.64 kg (12 lbs 7 oz)

INCLUDED ACCESSORIES:

• 2x D3V angled stands

• 6x D3V desktop pads

• 1x 2m speaker link cable

• 1x PSU and mains power cable

• 1x 1m USB-C to USB-C cable

• 1x USB-C to USB-A adapter
