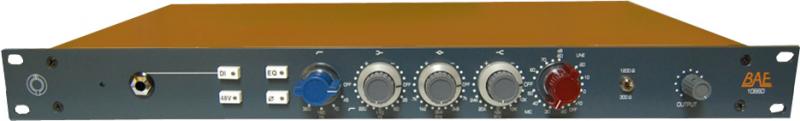

BAE 1066D - Mic Pre/EQ 19'' Rackmount without PSU

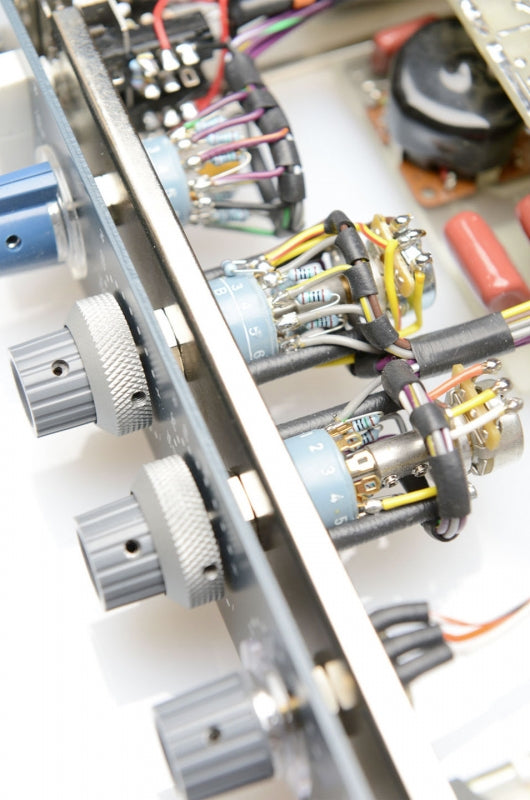

The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066D adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.

• High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.

• Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.

• Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz

• High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.

• EQ Button: Switches the equaliser on or off

• Phase Button: 180

FREQUENCY RESPONSE:

10Hz to -3dB at 55kHz

3 BAND EQUALISER:

HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz

HIGH PASS FILTER:

45Hz, 70Hz, 160Hz & 360Hz

MIC INPUT IMPEDANCE:

1200/300 ohms

LINE INPUT IMPEDANCE:

10k ohms

DI INPUT IMPEDANCE:

150k ohms

OUTPUT IMPEDANCE:

65 ohms

COMMON MODE REJECTION RATIO:

100dB min @ 60Hz

MAXIMUM OUTPUT LEVEL:

+27.4 dBu @ 600

POWER REQUIREMENTS:

115/230 VAC, 28W

GAIN DB:

0 to 80 dB

EQUIVALENT INPUT NOISE:

-110 dBu; Unweighted 300kHz Bandwidth

WEIGHT (MODULE/RACKMOUNT):

6 LBS / 2.72 KG

10 LBS / 4.54 KG

DIMENSIONS IN INCHES (MODULE/RACKMOUNT):

45 mm W x 8.75 inches H x 10.5 inches D

19W x 1.75L x 9D
