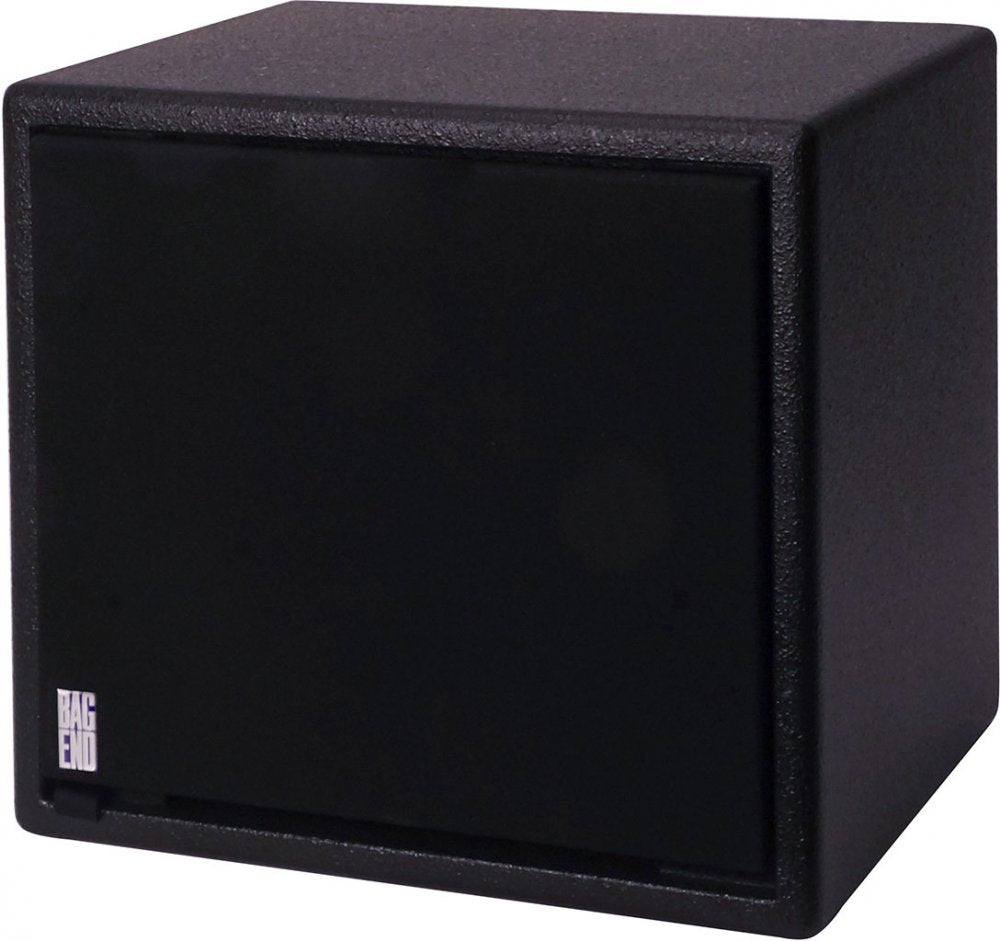

Bag End ISUB2-10

The ISUB2-10 is a self powered professional subwoofer system. It employs stereo summing management combining two inputs for a mono summed bass system.

The signal is processed by the INFRA dual integrator driving a 700 watt power amplifier into a front firing 10" cone loudspeaker in a sealed box. This provides a flat acoustical response down as low as 8 Hertz. Two iso- lated inputs allow the combining of a stereo signal for mono summed bass. Two units can be used separately for stereo bass systems.

DYNAMIC FILTER: The internally set Dynamic Filter protection maintains undistorted audio reproduction under accidental overload conditions. An optional remote indicator module (REMCON- 2) may be placed in a convenient, visible location to indicate the dynamic filter protec- tion threshold has been reached.

The INFRA driver is operated below resonance and flattened with an electrical boosting circuit, the INFRA dual integrator. Operating below resonance the INFRA sys- tem exhibits predictable, uniform response and reproduces each note with the same emphasis, reducing the influence of the res- onances found in conventional above reso- nance bass systems. In addition, the use of a low pass filter is eliminated (and with it the associated long variable delay) and replaced with the INFRA dual integrator with its short uniform delay.

Upon close listening, it is clear that the impression of power and impact is greater with an INFRA system when compared to conventional bass systems. This is true even when the two systems will measure the exact same Sound Pressure Level on a calibrated SPL meter. This is because the INFRA sub- woofer maintains the bass energy in a tight packet, aligned with the upper range signal, providing a greater body impact and a seam- less musical connection with the main loud- speakers.

Objectively, the INFRA system exhibits supe- rior frequency and phase response.

• Single 10" Infra Subwoofer System

• Self Powered, Self Infra Processor with 5.1 Bass Management

• REMCON-2 Optional Remote Dynamic Filter™

• Configured For Studio Installation Applications

• Black Textured Finish or High Gloss Automotive Finish

• 12.5"h x 14"w x 11.5"d, 27 Lbs

INPUT CONFIGURATION:

2 Isolated Balanced XLR

female line level

INPUT MODE:

2 Summing inputs

INFRA MODULE:

8 Hz dual integrator

INFRA FREQUENCY RESPONSE:

±3 dB 8 Hz to 95 Hz (2p Steradians)

INFRA system -6 dB frequency 95 Hz

(not adjustable)

INFRA LEVEL CONTROL:

Adjustable level

INFRA CUTOFF FREQUENCY:

Internally set 8 Hz or 16 Hz

INFRA OVERLOAD PROTECTION:

Preset threshold Dynamic Filter circuitry

INFRA POLARITY:

± Push button switch

RTI:

Optional Remote Threshold Indicator

Threshold exceeded indication red LED

AMPLIFIER OUTPUT POWER:

700 Watts continuous sine wave

LOW FREQUENCY TRANSDUCER:

EL-10 10" Cone

ENCLOSURE:

13 ply birch plywood

AC Power Requirements:

Auto sensing 100 to 250 VAC

FINISH:

Black textured finish or

optional high gloss automotive finish

GRILLE:

Black nylon cloth on frame

OTHER OPTIONS:

REMCON-2-

Optional Remote Dynamic Filter

threshold indicator

DIMENSIONS:

12.5"h x 14"w x 11.5"d

32cm x 36cm x 30cm

WEIGHT:

27lbs - 13kg
