Burl Audio B16-BMB3-M3

BURL Audio is proud to announce MOTHERSHIP 3, the first major code update to the B80 and B16 MOTHERSHIPs in many years.

MOTHERSHIP 3, unlocks the true channel count potential of THE MOTHERSHIP. Now with MOTHERSHIP 3, up to 64 channels of IO (@ 44.1KHz and 48kHz) are possible per daughter card slot!

MOTHERSHIP 3 MAX Channels per daughter card slot: 64 channels @ 44.1kHz, 48kHz 32 channels @ 88.2kHz, 96kHz 16 channels @ 176.4kHz, 192kHz

With the current MOTHERSHIP 3 offerings which include the new BAD16 and BDA16, our maximum channel IO usage is currently 16 channels per slot, but future MOTHERSHIP 3 daughter card offerings will include DANTE and MADI daughter cards which both have a maximum channel count of 64 channels @ 44.1kHz, and 48kHz. Stay tuned for that.

On the MOTHERSHIP 3 BMBx Motherboard side, the max channel counts for both BMB2-MADI and BMB3-DANTE have been expanded to 128 inputs or 128 outputs @ 44.1kHz and 48KHz. With the ten card slots and the BAD16s and BDA16s, a B80-BMB2 or B80-BMB3 MOTHERSHIP can be setup for 128 inputs x 32 outputs, 32 inputs x 128 outputs, 64 inputs x 96 outputs, or any other combination of 10 cards slots x 16 channels per card (160 total) @ 44.1kHz and 48kHz.

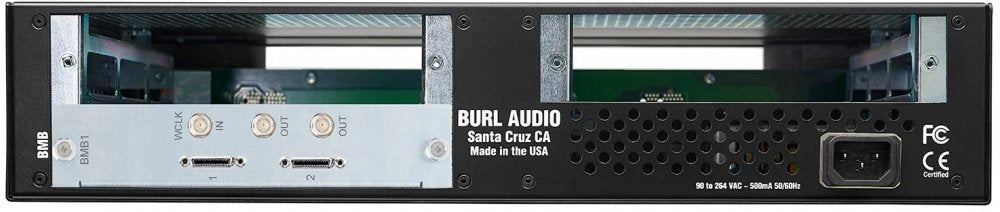

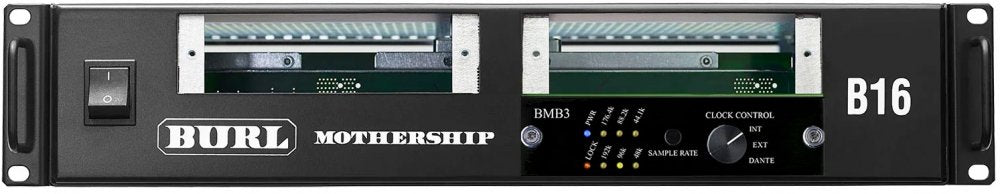

The Burl Audio B16-BMB3-M3 Mothership is a 16-channel AD/DA converter built for Dante audio network systems. With the BMB3 motherboard, it offers seamless integration into Dante environments, providing high-speed, low-latency connectivity. The M3 card adds 8 channels of premium analog-to-digital conversion, featuring Burl's signature BX1 transformer for warm, analog sound. Ideal for studios requiring Dante compatibility without compromising on sound quality, the B16-BMB3-M3 delivers exceptional audio performance in a versatile and modular design.

B16 MOTHERSHIP Features:

• Burl Black Compatibility

• 2U main chassis

• BMB3 (DANTE) motherboard

• 1 BNC Word Clock In

• 2 BNC Word Clock Out

• 2 daughter card slots

• AD/DA, AES and BCLK

BMB3 Features:

• 1 Dante Ethernet ports (sold standard with one port)

• 64-channel IO at 44.1k, 48k, 88.2k, 96k

• 32-channel IO at 176.4k, 192k

• 16-channel IO at 176.4k, 192k

• 2 BNC Word Clock outputs

• 1 BNC Word Clock input

INCLUDES:

Burl Audio B16 Mothership 3 AD/DA Converter Chassis

Burl Audio BMB3 Dante Card with 1 BK3

All Associated Power and Linking Cables

Manufacturers Warranty
