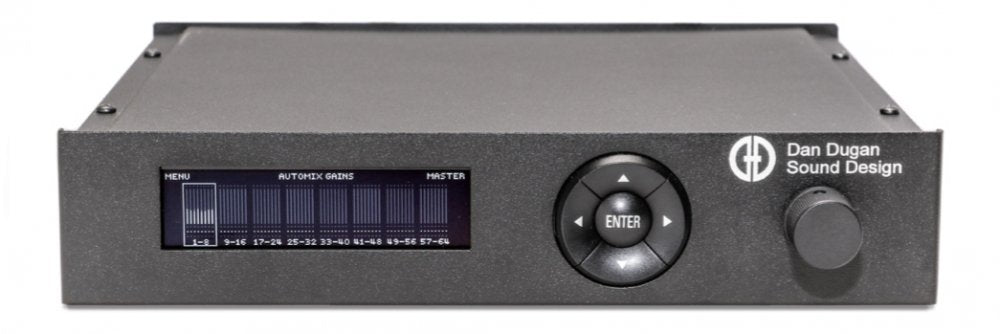

Dan Dugan Model N Automatic Mixing Controller

The Dugan Model N Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. This signal processor patches into the input insert points of an audio mixing console. Each mic channel is processed in the Dugan controller and returned to the console for mixing.

The Dugan detects which mics are being used and makes fast, transparent cross- fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model N crossfades unscripted dialogue, eliminating cue- ing mistakes, comb filtering from adjacent mics, and late fade-ups, while avoiding the choppy and distracting effects common to noise gates.

64 channels of processing

96 kHz sampling rate supported (32 channels)

All Dugan algorithms: Speech System, Music System and Gain Limiting

Channels may be grouped into three independent automixers

Primary and secondary Dante network connectors

Power over Ethernet (PoE) capable

Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)

Physical remote control from Dugan Model K Control Surface (sold separately)

Miniature control panel for setup or adjustments from front panel Standard Dugan linking for larger systems or 16 channels ADAT I/O

AUDIO:

DANTE I/O:

64 channels @ 48 kHz sample rate

32 channels @ 96 kHz sample rate

ADAT I/O:

16 channels

GAIN:

Unity

SAMPLE RATE:

48 " 96 kHz

BIT DEPTH:

24 bit

AUDIO LATENCY:

< 1 ms

FREQUENCY RESPONSE:

10 Hz " 48 kHz, +/- 0.0075 dB @ 96 kHz

OUTPUT NOISE:

-125 dBFS (20 Hz " 20 kHz), -128 dBAFS

DISTORTION:

-125 dBFS

ALGORITHMS:

Dugan Speech SystemTM, Dugan Music SystemTM, Dugan Gain LimitingTM

LINKING:

Up to eight units can be linked into one system using an optical ring network

CONNECTORS:

AUDIO I/O:

Dante: Two RJ-45, Primary and Secondary networks

ADAT: Two TOSLINK optical

WORD CLOCK I/O:

Two BNC 75-Ohm

LINKING I/O:

Two TOSLINK optical

NETWORK:

Two RJ-45, one accepts PoE (internal switch)

POWER:

CONNECTOR:

Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive

ELECTRICAL:

Nominal 12 VDC, 1.0 A maximum (12 W); accepts 12-24 VDC

POE:

02.3af-2003-compliant powered device (PD)

EXTERNAL SUPPLY:

Input: 100-240 VAC, 50-60 Hz, 24W

Output: 18 V, 1.3 A

APPROVED:

UL, GS, CE, FCC. LPS, CCC(S&E)

PHYSICAL:

DIMENSIONS:

1 RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)

WEIGHT:

3.4 lb (1.54 kg)

7.0 lb (2.50 kg) in shipping box with rack mounting kit and power supply

APPLICATIONS:

TV news and sports panels, political debates

Conference reinforcement, video trucks Reality shows, game shows

Wireless mics for theater

Boardrooms, civic meeting rooms

Teleconferencing and distance learning Houses of worship

BENEFITS:

Eliminates late upcuts

Reduces PA feedback and studio noise

Reduces comb filtering from adjacent mics
