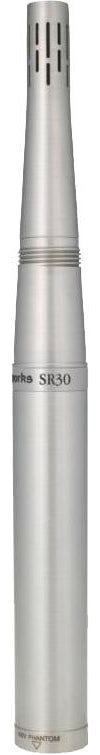

Earthworks SR30

Earthworks SR30 is a multi-use directional microphone patented with near-perfect polar patterns.

The sound across the entire front hemisphere is remarkably uniform and is flatter at 90 degrees than most microphones are on-axis. The SR Series have an incredible transparent sound quality, offering near-perfect polar response and high rejection of sounds at the rear of the microphone, resulting in less leakage and more gain before feedback.

• Extended frequency response to 30kHz

• Multi-purpose directional microphone

• More gain before feedback than other microphones

• Less leakage

• Textbook perfect cardioid polar pattern with natural on- and off-axis performance

• Provides excellent results for both live performance and recording applications

• Extreme accuracy in the time domain for faithful reproduction and no smearing or distortion

• Transparent sound quality

• Shorter diaphragm settling time to prevent quieter attacks from being blurred by earlier louder attacks

• Frequency Response: 30Hz - 30kHz ±2dB at 6 inches (15cm)

• Polar Pattern: Cardioid

• Sensitivity: 20mV/Pa (-34dBV/Pa)

• Power Requirements: 48V Phantom, 10mA

• Max Acoustic Input: 139dB SPL

• Output: XLR (pin 2+)

• Output Impedance: 65 balanced (between pins 2 & 3)

• Min Output Load: 600 between pins 2 & 3

• Noise: 16dB SPL equivalent (A weighted)

• Dimensions L x D: 212mm x x 22mm (8.4 x .860 inches)

• Weight: .5 lb (225g)
