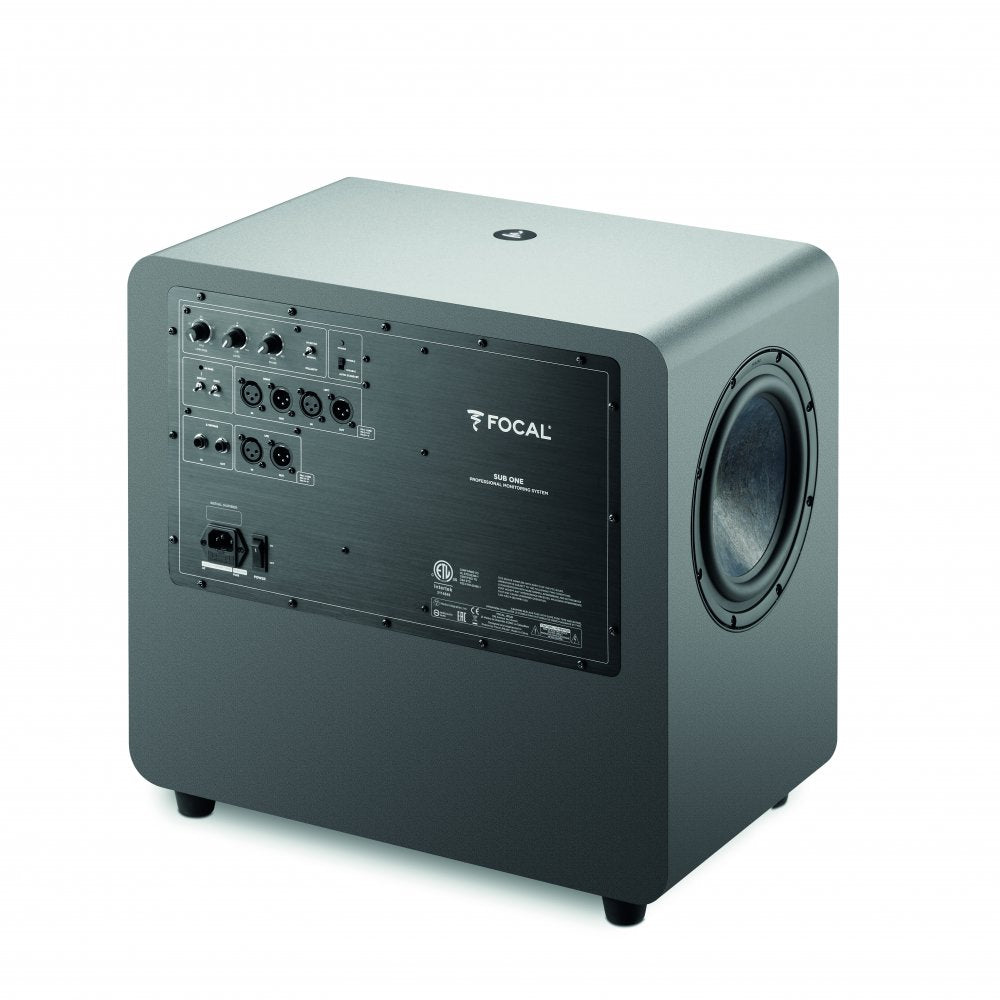

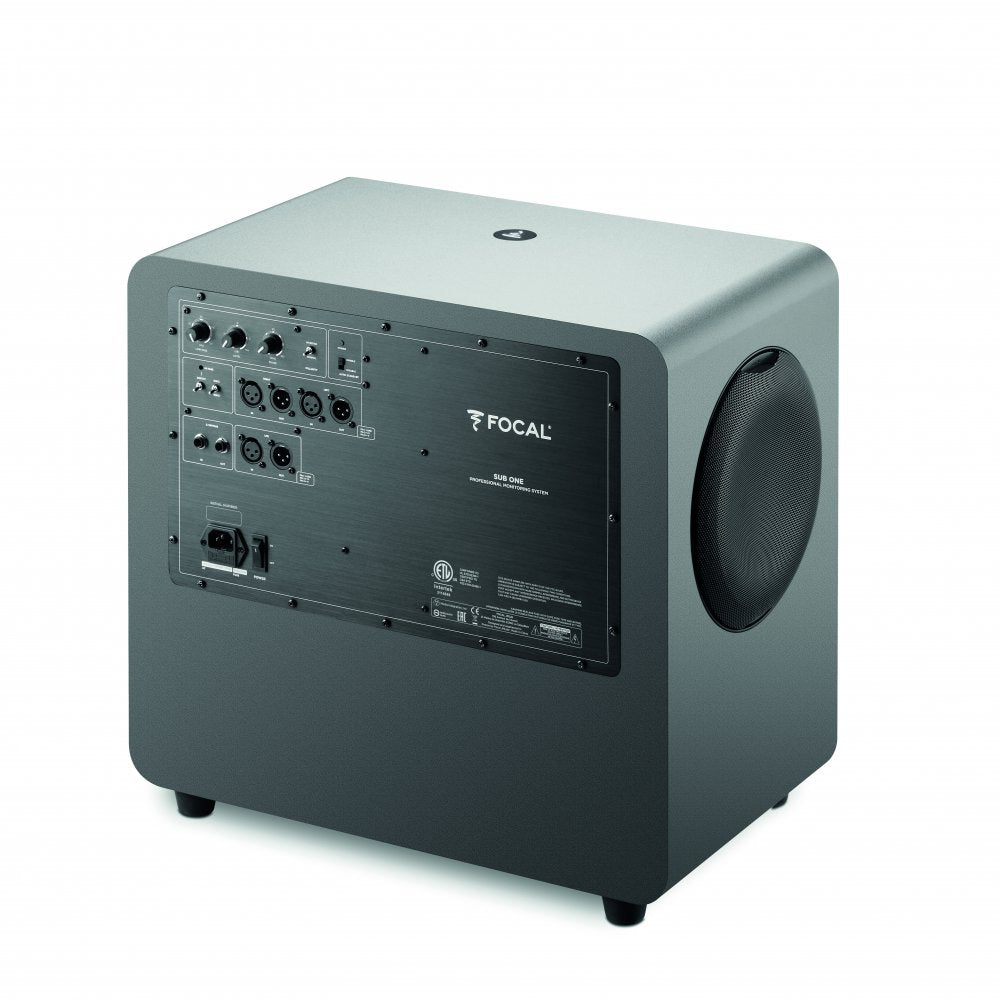

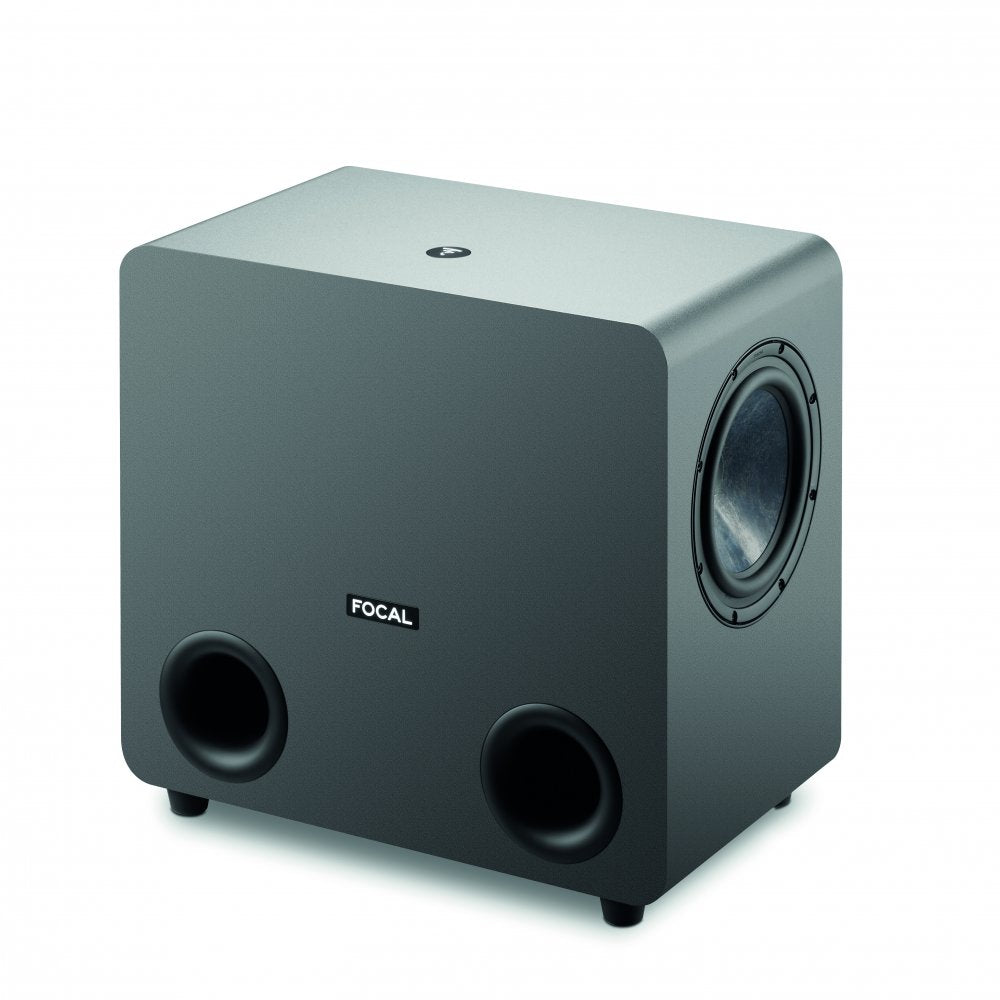

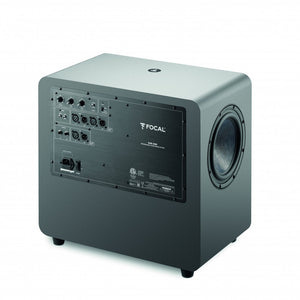

Focal Sub One

Sub One is a subwoofer composed of two 8" (20cm) Slatefiber cone woofers, manufactured in France by Focal.

With a total RMS power of 200W, it covers a frequency band from 32Hz to 120Hz. Sub One offers great dynamics whilst maintaining low distortion.

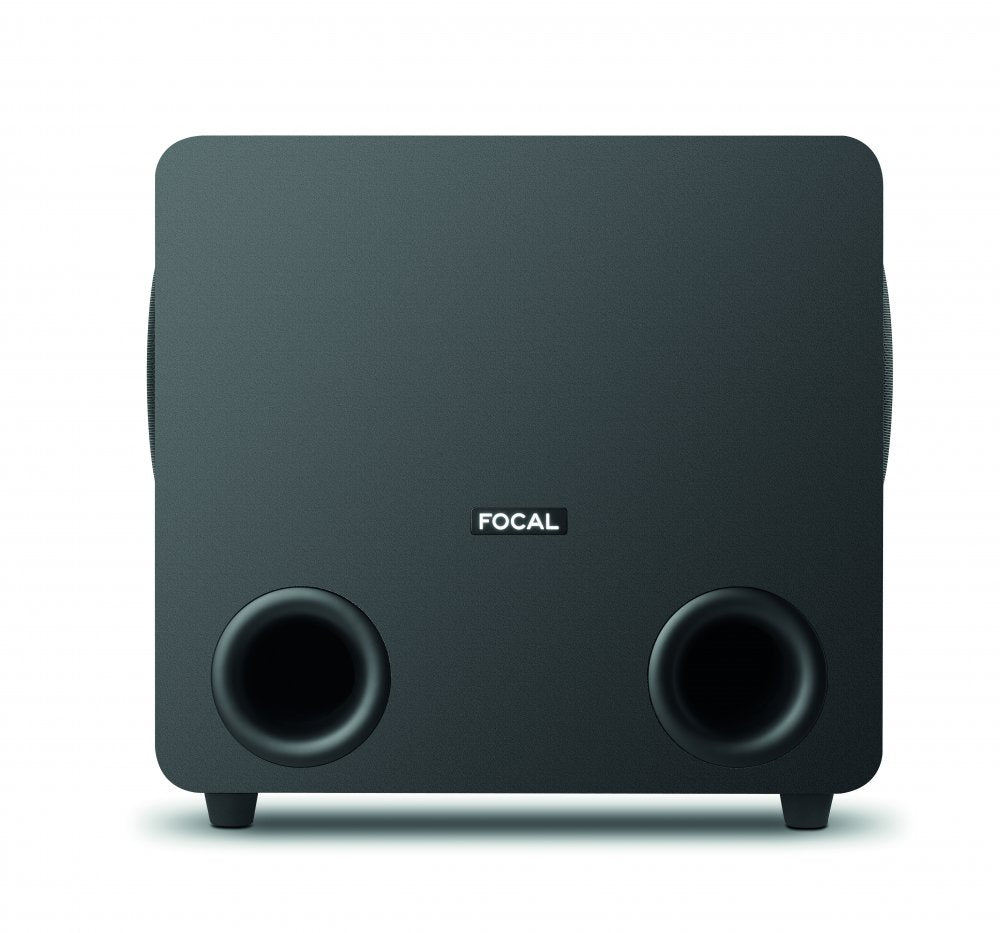

Designed with a focus on its width and front vents, Sub One integrates easily into a room, along a wall or under a desk.

Frequency response (+/- 3dB) : 32Hz - 120Hz

Maximum SPL : 114dB SPL (peak @ 1m)

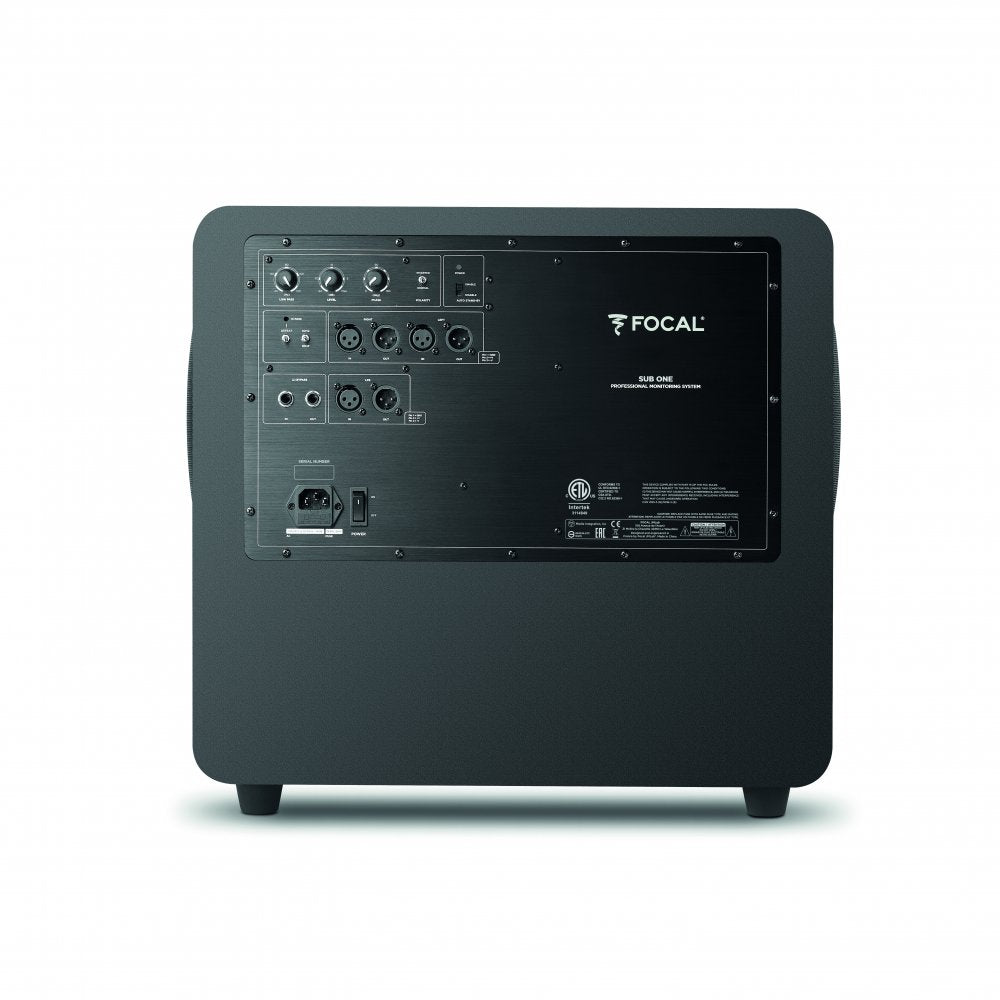

Inputs :

• Left, Right, LFE

• Electronically balanced / 110kOhms

• 3-point female XLR

• Variable

Outputs (to satellites)

• Left + Right

• 3-point male XLR in parallel on inputs

Amplification : 2 x 100W RMS, D-class

Internal signal processing and functions :

• Left + Right mono summation

• 60Hz or 90Hz high-pass crossover

• Adjustable low-pass crossover

• 24dB/octave

• Phase adjustment

• Polarity

User controls :

• Subwoofer level adjustment (sensitivity)

• Low-pass crossover cut-off frequency adjustment

• Phase adjustment

• Polarity inverter

• External mute (controlled by a pedal)

Indicators (LED) : Power Defeat

Power supply : Universal power Detachable IEC inlet power cord

Subwoofer : 2 x 8" (20cm) long-excursion Focal speaker drivers with "Slatefiber" cone

Construction : 7/8" (22mm) MDF panel with internal braces

Finish : Dark grey vinyl

Dimensions (HxWxD) : 171/8"x147/16"x175/16" (435.5x366x440mm)

Weight : 40.8lbs (18.5kg)
