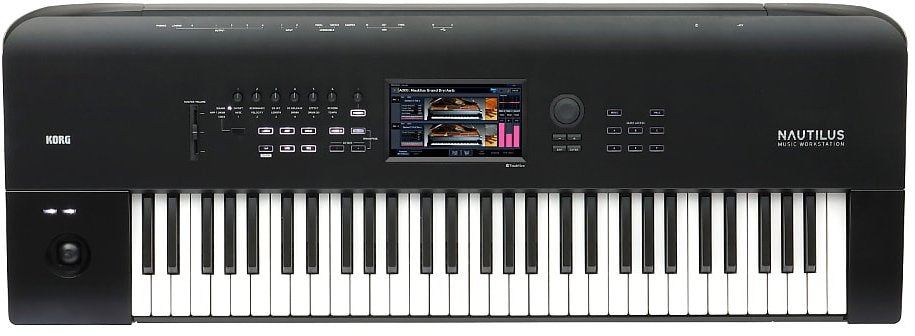

Korg Nautilus 61

NAUTILUS pushes the boundaries of what a performance synth and workstation is capable of. With the power of nine engines to drive a new approach to sounds, plentiful sampling, audio recording, effects and processing power, there is simply no other synth that delivers more to explore sonically, with the workflow to get you there faster than ever. Korg spent years refining all our digital, analog, processing and hardware technologies and delivering them in a way that helps the musician connect with their instrument. The result is the incredibly powerful, one-of-a-kind NAUTILUS.

- Nine different sound engines offer massive expressive power

- New sounds offered over three broad categories

- The DYNAMICS knob makes delicate expression possible

- Make intuitive changes to sounds with the Realtime knobs

- A user interface designed for easy operation

- Convenient arpeggiator and drum track functions

- Set list mode that demonstrates its power in live performances

- Open Sampling System

- 16-Track MIDI Sequencer / 16-Track Audio Recorder

- 16 Onboard Effect Processors

- USB/MIDI Host Ports Accommodate MIDI Control Surfaces

- Smooth sound transitions that eliminate dropouts when changing sounds, regardless of the mode you're in

- 88-key model with piano touch, 73-key model with light touch and 61-key model available

GENERAL:

DISK MODE:

Load, save, utility, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.

CONTROLLERS:

Joystick, Switches 1 & 2

ARPEGGIATOR CONTROL:

On/Off, Latch, Gate, Velocity, Length, Swing, Tempo

DRUM TRACK:

On/Off, Swing, Drum SD, Tempo

DISPLAY:

TouchView graphical user interface, 7 inch color TFT, WVGA (800 x 480 dots), adjustable brightness

PRINCIPAL SPECIFICATIONS:

Frequency Response: 20Hz-22kHz, +/-1.0dB, 10k load

THD+N:

20Hz-22kHz, 0.01%, 10k load (typical)

S/N:

95dB (typical)

DYNAMIC RANGE:

95dB (typical)

CROSSTALK:

95dB, at 1kHz (typical)

OUTPUTS:

L/MONO, R, Individual 1-4 , 1/4" TRS Balanced

OUTPUT IMPEDANCE:

350 Stereo; 175 Mono (L/MONO Only),

NOMINAL LEVEL:

+4.0 dBu,

MAXIMUM LEVEL:

+16.0 dBu (when load impedance is 600 or greater)

MAIN VOLUME slider controls only AUDIO OUTPUT (MAIN) L/MONO and R

HEADPHONES:

1/4" stereo phone jack

Output impedance: 33 ,

MAXIMUM LEVEL:

60+60 mW (when load impedance is 33 ),

MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))

USB-B:

24-bit, Sample Rate: 48 kHz, 2 channels

(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)

INPUTS:

Audio Inputs 1 and 2

1/4" TRS Balanced

Input Impedance: 10 k

Nominal Level: LINE +4 dBu

Maximum Level: LINE +16 dBu

Nominal Level: MIC -22 dBu

Maximum Level: MIC -10 dBu

Source Impedance: 600

USB-B:

24-bit, Sample Rate: 48 kHz, 2 channels

CONTROL INPUTS:

Damper pedal (half damper supported), Assignable switch, Assignable pedal

MIDI:

In, Out, Thru

USB:

USB A (TYPE A)

For connection to external USB devices (QWERTY keyboards, MIDI controllers, ethernet adaptors, and storage)

USB B (TYPE B)

MIDI/AUDIO INTERFACE, MIDI:

1 (16 channel) input / 1 (16 channel) output, Audio: 2 channel input / 2 channel output

*2 USB high-speed ports (supports 480Mbps)

DISK DRIVES:

60 GB SSD (2.5")

POWER SUPPLY:

AC power supply terminal, Power switch

DIMENSIONS (W X D X H):

88 key: 1,437 x 387 x 139 mm / 56.57" x 15.24" x 5.47"

73 key: 1,227 x 386 x 116 mm / 48.31" x 15.20" x 4.57"

61 key: 1,062 x 386 x 116 mm / 41.81" x 15.20" x 4.57"

WEIGHT:

88 key: 23.1 kg / 50.93 lbs.

73 key: 14.6 kg / 32.19 lbs.

61 key: 13.0 kg / 28.66 lbs.

POWER CONSUMPTION:

40 W

ACCESSORIES:

AC cord, Quick Start Guide

OPTION:

XVP-20: Expression/Volume Pedal

EXP-2: Foot Controller

DS-1H: Damper Pedal

PS-1: Pedal Switch

PS-3: Pedal Switch
