PMC PMC8-2 SUB-R

The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz.

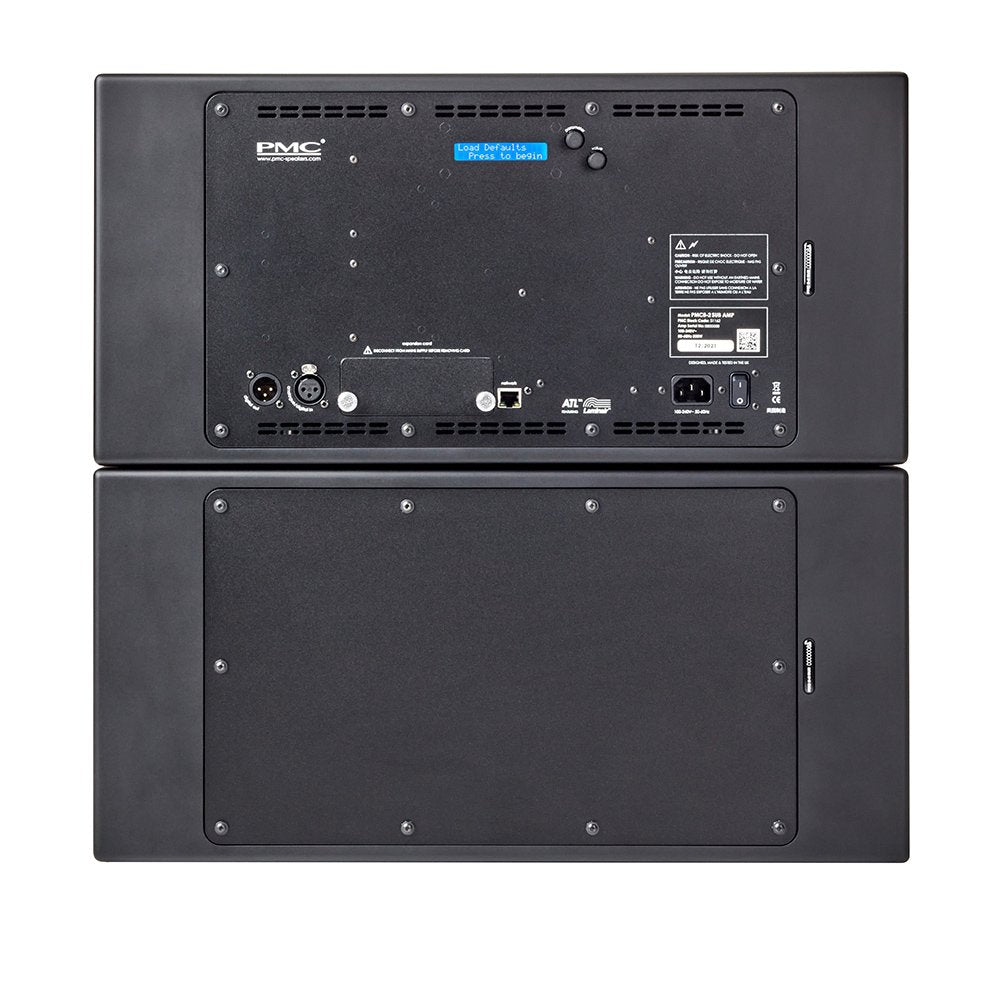

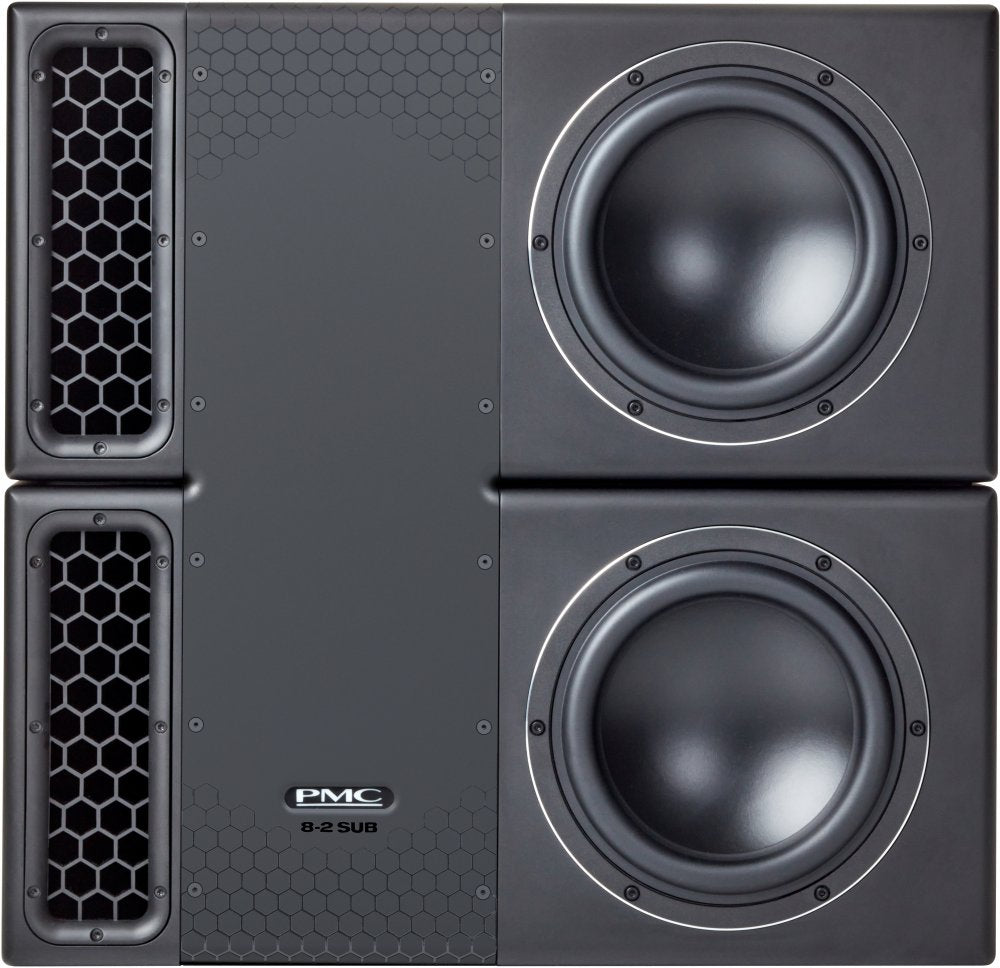

With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB's twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker's rear panel or by using the browser-based SoundAlign software via a LAN-connected tablet, smartphone or computer.

The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors.

• Active subwoofer with twin 8-inch bass drivers and ATL bass loading

• Frequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)

• Max. cont. SPL: 115dB @1m (quarter space value calculated as +3dB from half space measurement.

• Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

• State-of-the-art Class-D amplifier: 2 x 400W

• Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)

• Digital ‘through' output (AES3 24-bit, 96kHz)

• SoundAlign network control interface for single or group EQ & settings

• Sophisticated DSP driver protection, EQ, and delay/phase options

• Dedicated XBD configuration mode

TYPE:

Active subwoofer with twin 8-inch bass drivers and ATL bass loading

DRIVE UNIT COMPLEMENT:

LF PMC 200mm (8") studio 8 driver

EFFECTIVE ATL LENGTH:

3m (9.8ft)

FREQUENCY RESPONSE:

25Hz - 500Hz (- 3dB) (@1m full space, on-axis)

SENSITIVITY:

+4dBu input signal = 98dB SPL @ 1m

MAX CONTINUOUS SPL:

115dB @1m

(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

MAX PEAK SPL:

121dB @1m

(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

INPUT:

XLR switchable between analogue & digital AES3

Analogue input

- +20/+24dBu max. input level (selectable)

- 22K ohm input impedance Digital input - 16/24-bit AES3 signal, left, right or left + right

- 18 - 192kHz Sample Rate

- 110 ohm input impedance Expansion card slot

- For future connectivity upgrades

OUTPUT:

XLR digital AES3 (fixed 24-bit @ 96kHz)

Network RJ45 for use with PMC SoundAlign web interface

FEATURES:

Level Trim (+/-10dB)

High-pass/Low-pass filter (20 - 200Hz, 12dB/Oct)

Delay (0 - 30mS)

Phase (normal or inverted)

LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)

Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)

User presets (3 + factory defaults)

LATENCY:

2.4mS

AMPLIFIER POWER PER CHANNEL:

300Wrms

MAINS:

100 - 240VAC auto-switching, 50-60Hz (IEC C14)

POWER CONSUMPTION (IDLE):

25W

POWER CONSUMPTION (MAX):

300W

CABINET DIMENSIONS:

H 266mm (10.5")

W 551mm (21.7")

D 440mm (17.3")

WEIGHT:

18.5kg (40.8lbs) each

AVAILABLE FINISHES:

Studio black
