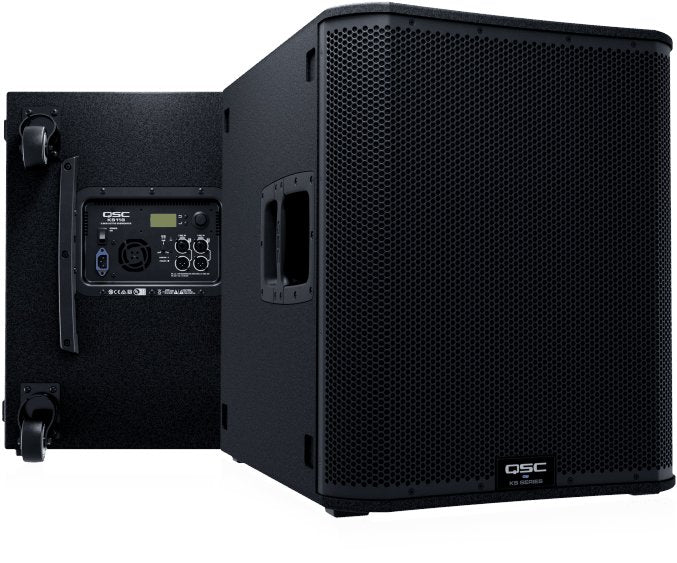

QSC KS118

Featuring an 18" direct radiating driver powered by a 3600W Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies. Highly transportable, the rugged premium birch enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full- range loudspeakers (SP-26 loudspeaker pole not included). To avoid excessive bass energy on stage, and minimize bass radiation in unwanted areas (in-door or out-door), two or more KS118 subwoofers can be combined to create a cardioid radiation pattern providing up to 15 dB of front/back rejection. One DSP setting gives you effective cardioid results in three different configurations without external processing.

• Very high output with impressive low frequency performance

• 3600W Class D amplifier module

• 18" (460 mm) long excursion direct radiating driver

• Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)

• Selectable DEEPTM mode for extremely low frequency extension

• Adjustable crossover and delay

• Scenes for commonly-used applications that can be saved/recalled n Refined, professional and elegant appearance in any application

• Rugged painted wood enclosure for lasting durability

• Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)

• Four low-noise, heavy-duty casters (included)

• Optional KS118 transport cover, KS-LOC security cover and SP-26 loudspeaker pole (sold seperately)

Configuration: Direct radiating / Radiation directe

LF Transducer: 18" (460 mm), cone / conique

Frequency Response (-6 dB): 41 Hz - 98 Hz

Frequency Range (-10 dB): 35 Hz - 111 Hz

Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)

Maximum SPL: 136 dB @ 1 m (peak / crete)

Amplifier: Class D - 3600W (peak / crete)

Cooling: Low-noise, variable speed fan

Controls:

• Power On/Off

• Rotary encoder

• 2 x selection buttons / 2 x boutons de selection

Indicators:

2 x power LED (front and rear)

Input signal LED

Limiter active LED

Connectors:

• 2 x locking XLR/F 14 in combo

• 2 x XLR/M (loop-thru output)

• 1 x locking IEC power connector

AC Power Input: Universal power supply: 100 - 240 VAC, 50 - 60 Hz

AC Power Consumption (1/8th Power): 100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A

Enclosure: 18 mm Birch Plywood / Contreplaque en bouleau de 18 mm

Color: Black (RAL 9011)

Grille: 16-gauge black powder coated steel / Grille en acier (calibre 16), revetement par poudre noire

Dimensions (H x W x D / H x L x P):

640 x 520 x 785 mm (includes casters)

25.2 x 20.5 x 30.9 inches (incl. casters)

Net Weight (including casters): 47 kg (104 lb.)

Shipping Weight: 56.5 kg (124.5 lb.)

Regulatory / Normes: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

Included Accessories: 4 x low-noise, heavy duty casters / 4 x roulettes robustes et silencieuses

Optional Accessories: KS118-COVER transport cover, KS-LOC lock-out cover, SP-26 loudspeaker pole
