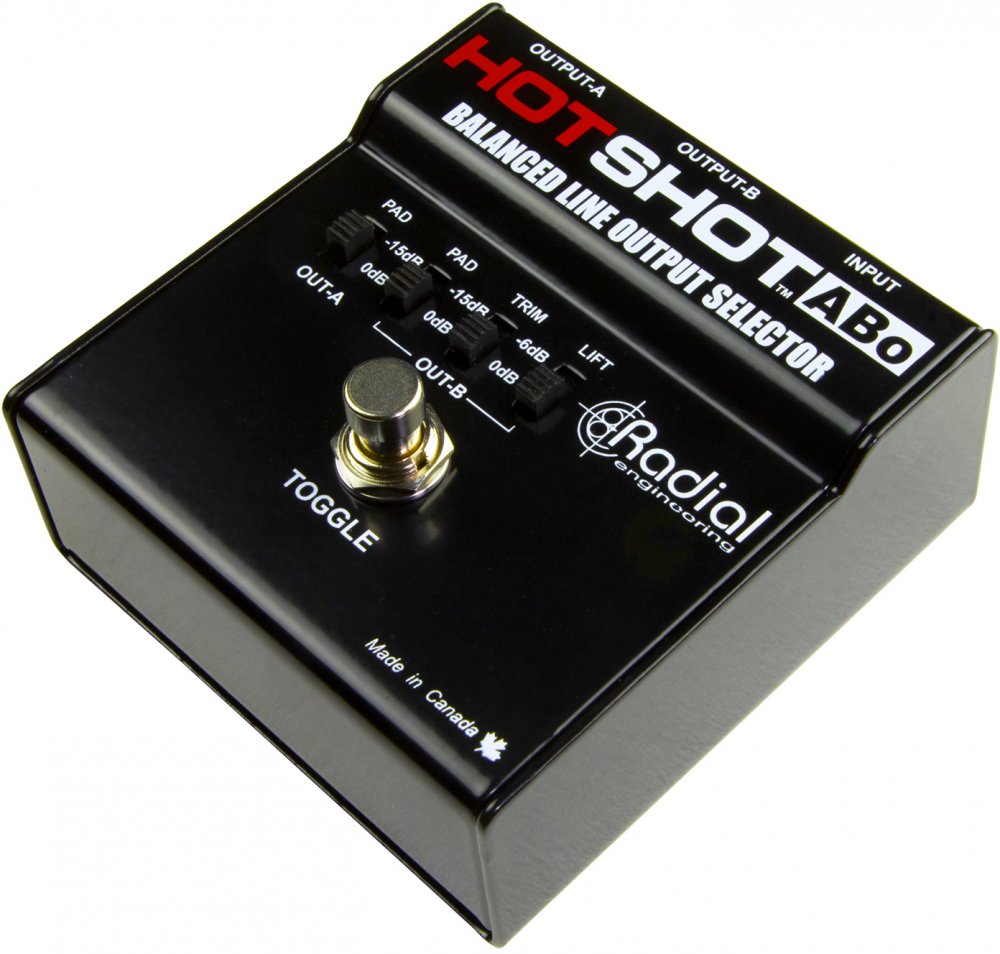

Radial Engineering HotShot ABo

The HotShot ABo is a balanced output selector switch that lets you take an audio source and redirect it to two destinations by depressing a latching footswitch. It features separate -15dB pads on each output to better balance the signal levels. And since it is completely passive, powering is not required to make it work.

This makes the HotShot ABo ideal for a variety of applications including driving two channels on a mixing console for dry and wet effects routing, to divert a mic from the PA system to the monitors or intercom, for temporarily muting the signal such as when coughing or for talkback mic control to the talent from the producer's desk.

Ultra compact and extremely rugged, the HotShot ABo is made in Canada with 14 gauge steel and durable powder coat finish to handle the rigours of professional touring. Heavy duty latching footswitch and glass-nylon connectors are designed to provide years of trouble-free performance and are backed-up with a 3-year transfe..

Easy use, the HotShot ABo delivers instant footswitch control to divert the audio signal to two destinations for greater efficiency on stage.

• On-stage line output signal AB redirector

• Toggle switch for one-push operation

• Pads allow using devices with different signal levels

• Ground lift to eliminate buzz caused by ground loops

• Heavy-duty construction, switches and components

• Circuit Type : Passive, true-bypass

• Frequency response : 20Hz ~ 20kHz

• Switch type : Latching

• Dynamic range : Unlimited

Features

• Ground lift : Pin-1 on input B

• Pad : -15dB on both inputs

• Toggle : Selects between input A or B

General

• Construction : 14 gauge steel

• Finish : Durable powder coat

• Size : 3.6"w x 3.9"d x 2"h (92 x 99 x 51mm)

• Weight : 1.25 lb (0.56 kg)

• Conditions : For indoor use at temperatures between +5 c and +40 c
