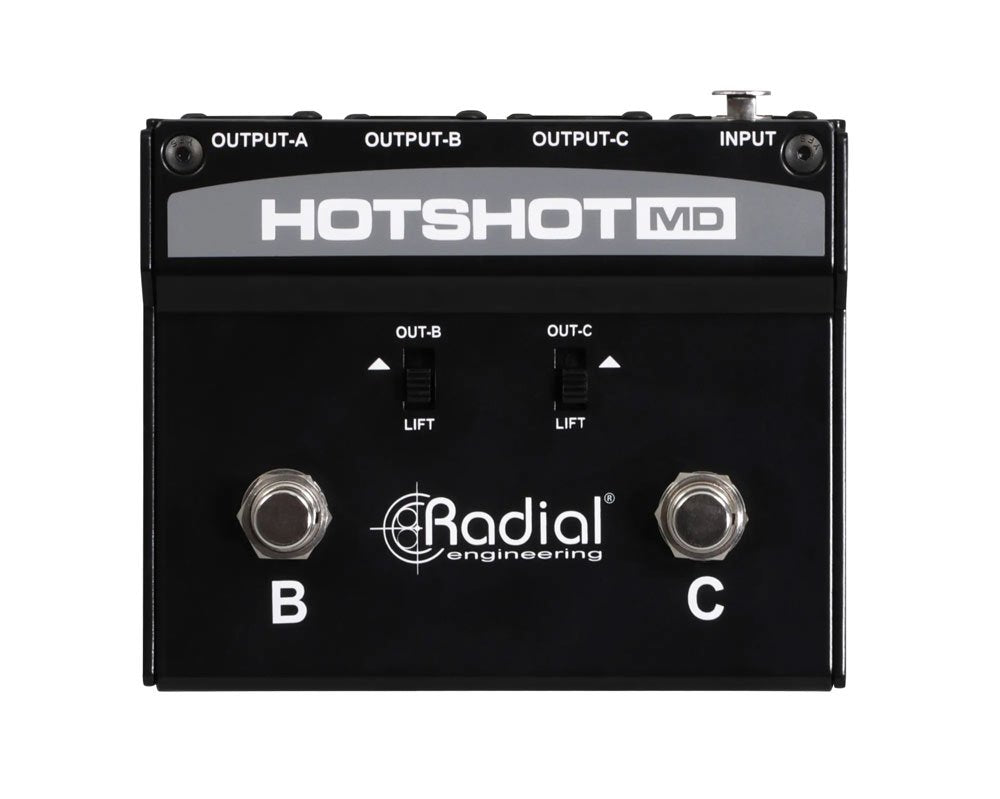

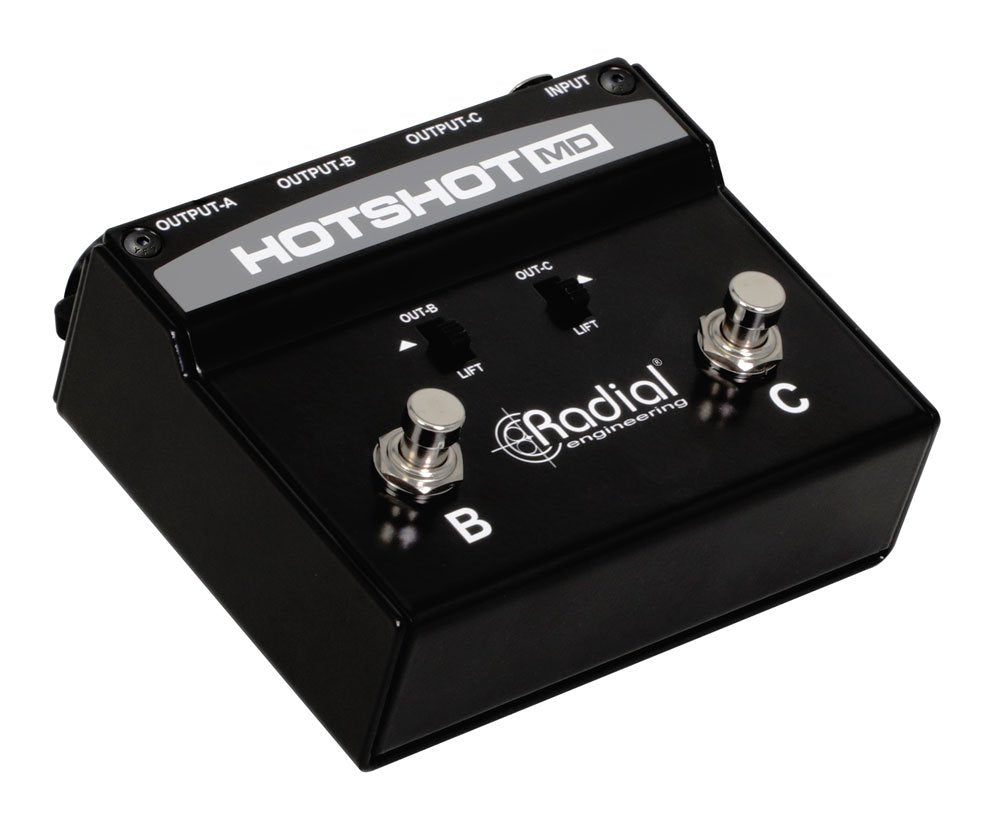

Radial Engineering HotShot MD

The Radial HotShot MD gives music directors easy and discreet control over their microphone outputs to enable seamless transitions between singing, cueing the band, and coordinating with techs and engineers"all without disrupting the audience experience. Engineered with Radial's signature road-ready construction and noise-free switching, the HotShot MD streamlines communication, boosts efficiency, and enables bandleaders to focus on delivering flawless performances.

• Lead " Redirects mic signal to cue the band discreetly

• Direct " Provides Noise-free switching and pristine signal path for communication with techs, band members, or both

• Perfect " clean, quick, and quiet communication in a passive format requiring no external power

GENERAL SPECIFICATIONS:

• Model: R800 1501 00

• Type: Dynamic Microphone Switcher

• Signal Routing: Multi-destination mic output switching (PA, band, techs)

• Switching Type: Momentary footswitch-based rerouting

• Power: 100% passive (no external power required)

• Enclosure: 14-gauge heavy-duty steel

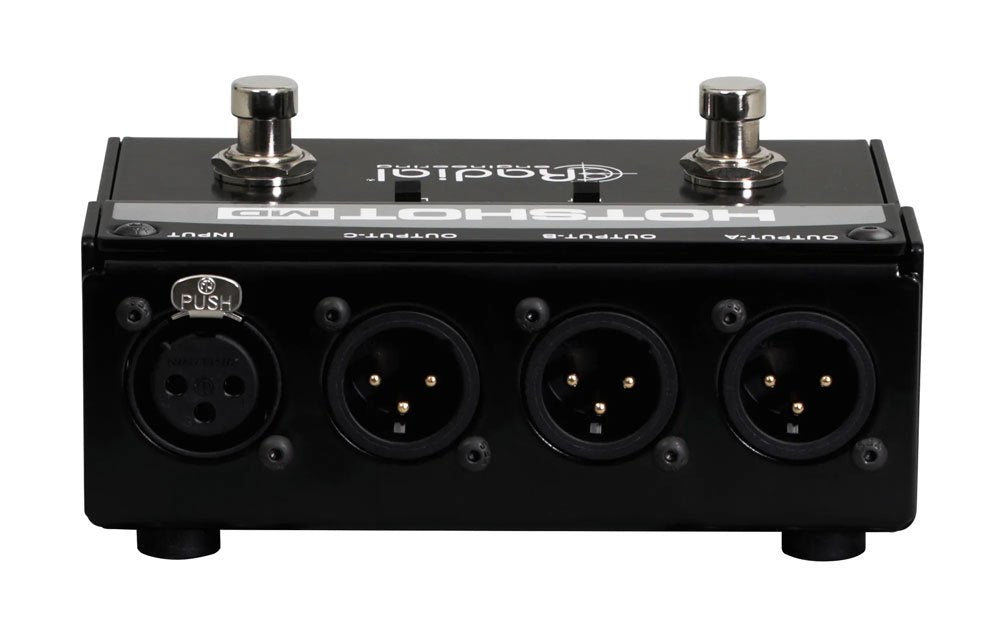

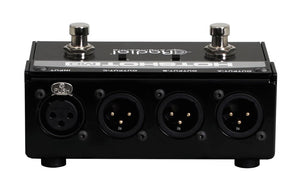

INPUT/OUTPUT:

• Input: Locking XLR input (for dynamic microphone)

• Output-A: XLR (default output to PA/monitors)

• Output-B: XLR (alternate output to second location)

• Output-C: XLR (alternate output to third location)

• Output B Ground Lift: Switch disconnects pin-1 on Output-B

• Output C Ground Lift: Switch disconnects pin-1 on Output-C

FOOTSWITCH CONTROLS:

• Output B Footswitch: Momentarily routes mic signal to Output-B, mutes Output-A

• Output C Footswitch: Momentarily routes mic signal to Output-C, mutes Output-A

• Output B/C Footswitches Together: Routes mic to both Outputs B & C simultaneously, mutes Output-A
