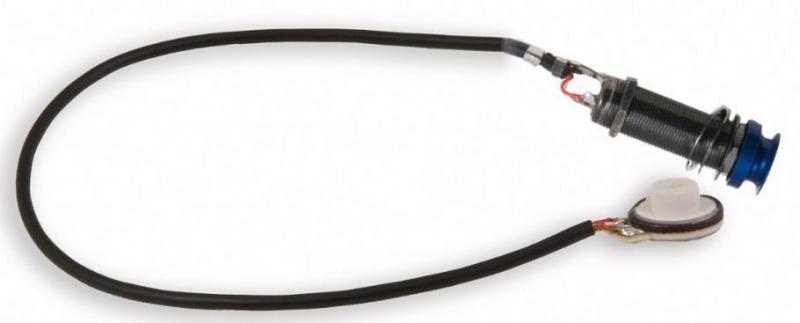

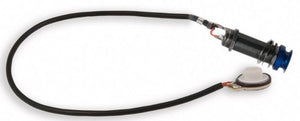

Schertler RESOCOIL-JF

RESOCOIL is designed for musicians who need an internal solution fixed inside the instrument's sound box. This sensor delivers the warm natural sound typically found in Schertler's DYN family of external contact microphones, with the added convenience of a permanent installation that leaves no visible holes on the instrument.

RESOCOIL is suitable for use with classical type guitars, mandolin family instruments, ukulele and resonator guitars.

• Nominal impedance : 1500 ohm @ 1 KHz

• Frequency Response : 80 Hz to 14 kHz (+/- 3 dB)

• Dynamic range : 139 dB, 145 dB typical

• Sensitivity (on instrument) : ca. -28 dB

• Sensitivity (theoretical) : 20 mV/g

• Mechanical decoupling : Butterworth 2nd order, Q=6

• Equivalent output noise : 16 dB/0 dB = 0.002%

• Contacts : All hard gold plated 0.5 mm

• Connection : XLR balanced, Jack unbalanced

• Connection in to a high impedance input may cause volume/signal loss

• Temperature range : -10 C to +50 C

• Cable length : Custom lengths possible
