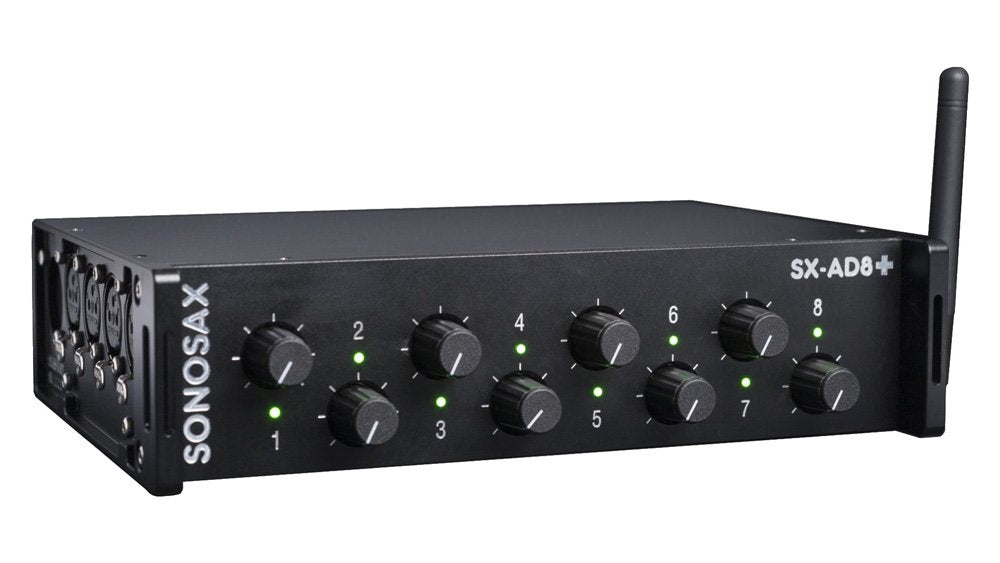

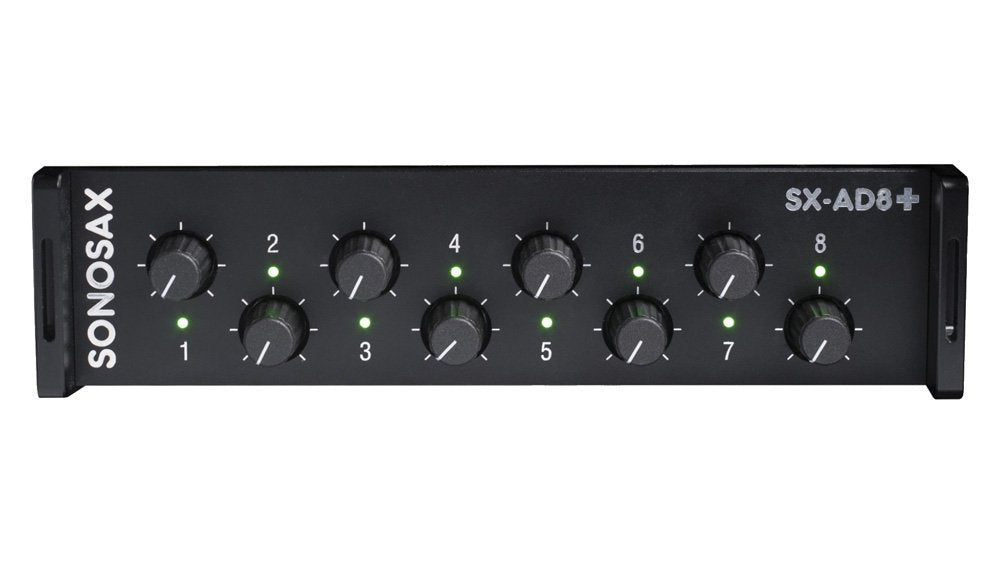

Sonosax SX-AD8+
Couldn't load pickup availability
Financing
Financing
Affirm
Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.
Equilease
Ideal for larger purchases, Equilease offers customized financing solutions to fit your business needs.
Click here for more info.
Delivery & Shipping
Delivery & Shipping
Free Shipping in Canada with orders over $200. Conditions apply. View details here.
Returns & Policy
Returns & Policy
You can review our terms and conditions here
Description
Description
Inputs / Outputs 8x Mic/Line inputs, electronally balanced on XLR-3F, with phase reversal, 48V phantom and LF cut with level control on the front panel 4x AES3 transformer balanced outputs on multi-pin connector Optional audio over IP on RJ45 connector, for AVB and Dante (Not Included)
Performances 135 dB (A-weighted) overall dynamic range 90kHz overall frequency response @192 kHz 40 bits processing 24bits 48/96/192 kHz
User Interface Using front panel push-buttons WiFi dynamic web interface through SX-R4+ user interface
Powering External DC 9..18V on Hirose 4pins Class 1 IEEE 802.3af PoE (with Dante option board)
Mechanical Machined aluminum housing Overall dimension: 200 x 50 x 144.5 mm (7.87" x 1.96" x 5.7") Weight: 850g / 1.9lbs
