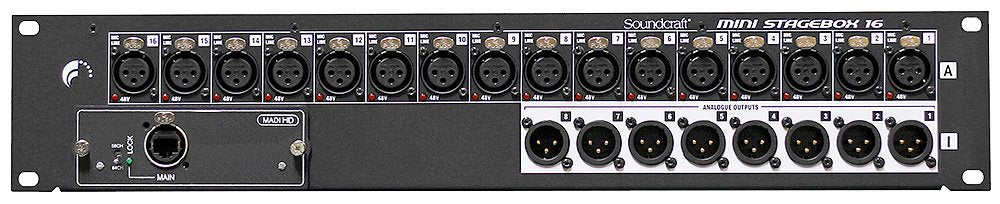

Soundcraft Mini-Stagebox-16R

The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

The Mini Stagebox 32R (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16R (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

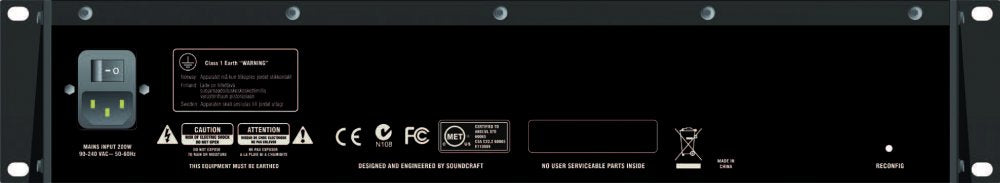

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

Both models are supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately)

• For Vi and Si Mixing Consoles

• Adds 16 Mic Line Inputs to System

• Adds 8 Outputs to System

• 2U RU

• Integrated Power Supply

• MADI Card Included

FREQUENCY RESPONSE:

• Mic / Line Input to any Output: +0/-1dB, 20Hz " 20kHz

T.H.D.:

• Mic Sensitivity -30dBu: < 0.01% @ 1kHz

NOISE:

• Residual noise: -85dBu

• Mic Input E.I.N. (maximum gain): -125dBu (150Ω source)

• Mix noise, masters at unity: < -86dBu

• 1 input to mix at unity gain: -84dBu

• CMRR mic @1KHz (max gain): -86dBu

CROSSTALK (@ 1KHZ):

• Mic " Mic: <-80dB @ 1kHz

INPUT GAIN:

• Mic Gain: -5dB " 58dB integrated pad design 1dB steps

• Max. input level: +24dBu

• Max. output level

• +22dBu

SAMPLE RATE:

• 48kHz

CONVERTOR RESOLUTION:

• 24 bit

LATENCY:

• 1.5ms

INTERNAL CLOCK ACCURACY:

•

+/- 25PPM:

MAINS POWER CONSUMPTION:

• 33W

MAINS VOLTAGE OPERATING RANGE:

• 90 " 264 VAC, 47 " 63Hz

OPERATING TEMPERATURE RANGE:

• -10oC " +50oC

RELATIVE HUMIDITY:

• 0 " 90%

STORAGE TEMPERATURE RANGE:

• -10oC " +50oC
