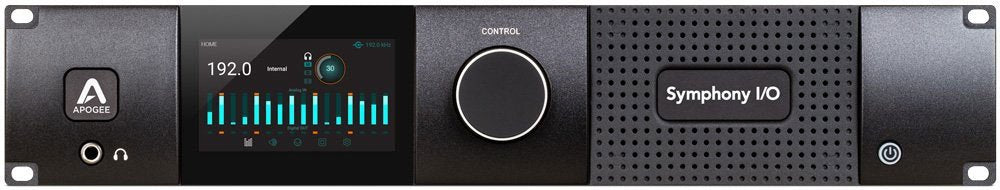

Apogee Symphony I/O MkII Dante 2x6 SE

Meet Symphony I/O Mk II Symphony I/O Mk II is a multi-channel audio interface featuring Apogee's flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. With its option card flexibility, Symphony I/O Mk II can provide direct connectivity to one of 4 different platforms - Thunderbolt, Pro Tools HD, Dante+ Pro Tools HD, or Waves SoundGrid network.

Legendary Sound Quality Apogee engineers have made it their passion to improve every new flagship product by using the latest in electrical components and designing optimized circuitry that often exceeds the expectations of the component manufacturer. This is the Apogee Advantage. Symphony I/O Mk II is the culmination of this 30 year commitment and raises the bar on all Apogee products before it with even better audio clarity and sonic transparency. In fact, when equipped with either the 8-8 or 16-16 modules, Symphony I/O Mk II outperforms all other multi-channel audio interfaces available for Pro Tools HD, network or Thunderbolt based systems, making it the flagship audio interface for the entire professional audio industry and the obvious choice for countless GRAMMY winning artists, producers, songwriters and engineers.

Input and Output flexibility There is a Symphony I/O Mk II solution for everyone; the home studio, project studio, commercial recording studio and scoring stage. Choose from four base I/O configurations, 2-6, 8-8, 16-16, or 8-8 with 8 mic preamps and easily expand as your studio grows. With two module slots and the capacity for up to 32 inputs and outputs of A/D & D/A conversion per unit, Symphony I/O Mk II offers the best per-channel value of any interface in its category.

Put the Sound of a Symphony on the Most Popular Audio Over IP Network With the Symphony I/O Mk II Dante + Pro Tools HD option card and a simple Ethernet cable, Symphony I/O Mk II can be easily connected and shared across post production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world's most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools connectivity for integration of Pro Tools | HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.

The Symphony I/O Mk II Dante option card uses Audinate's Brooklyn II module which features plug-and-play media networking for up to 32 bidirectional channels at 96kHz and 16 bidirectional channels up to 192k. The system can be configured with a number of custom options ranging from 8-32 analog I/O channels. Symphony I/O MK II Dante allows up to 32 channels with Pro Tools and redundant Dante connectivity to be fitted into a single two space rack device providing the smallest footprint available with this feature set.

•

ULTIMATE SOUND QUALITY:

- Features Apogee's Flagship AD/DA conversion and optional mic preamps I/O Flexibility - Up to 32 channels of analog inputs and outputs per unit with optional 8 mic preamp module

•

PRO TOOLS HD PERIPHERAL PORT:

- Up to 32 bidirectional channels up to 192kHz. Route Symphony I/O module inputs or Dante Rx to Pro Tools inputs by blocks of 8 channels. Pro Tools HD outputs are routed to Dante Tx and I/O module outputs

•

INTEROPERABLE NETWORKING TECHNOLOGY:

- Works seamlessly with any other Dante-powered device

•

UP TO 32 BIDIRECTIONAL CHANNELS AT 96KHZ:

- 16 bi-directional channels at 192kHz

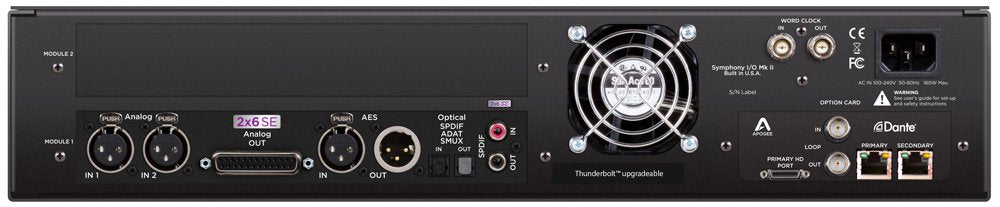

INPUTS:

• Analog IN: 2 balanced inputs on 2 female XLR connectors

• AES IN: Stereo input on 1 female XLR connector

• Optical IN: Supports ADAT, SMUX & S/PDIF

• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector

• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector

• S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector

• S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

A/D:

• THD+N of -116dB @23dBu (0.00016%) unweighted

• Dynamic range: 124 dB (A) of dynamic range

• Maximum input levels:

• +4dB setting: +24dBu

• -10dB setting: +6dBV

• Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)

• Input impedance: 10K

OUTPUTS:

• Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector

• AES OUT: Stereo output on 1 male XLR connector

• Optical OUT: Supports ADAT, SMUX & S/PDIF

• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector

• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector

• S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector

• S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

D/A:

• THD+N of -118dB @ 22dBu (0.00013%) unweighted

• Dynamic range: 131dB (A) dynamic range

• Max output levels " ∞ to +24dBu

• Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)

• Output impedance: 25 Ohm

Connection: Ethernet/Dante + Pro Tools | HD

Performance: 44.1kHz " 192kHz

Compatibility: macOS or Windows

Control: Front panel touch screen
