DPA 3532-SP

They are carefully matched within ±0.5 dB on both frequency response and sensitivity in the entire frequency bandwidth.

This A-B stereo kit is the ultimate choice for the demanding engineer and audio purist who emphasizes clarity, openness, precision, low self-noise and high sensitivity.

The kit is designed for a broad range of uses; for classical, jazz and folk genres, grand pianos, guitars, overheads or close-miking drums, choirs, strings, wind instruments and much more.

You get a bright and transparent sound quality with lots of headroom. With its soft boost, which is present on-axis, and gradually goes towards linearity off-axis, these omnidirectional microphones can be angled to use as a natural equalizer. These mics are a part of the d:dicate Recording Microphones Series.

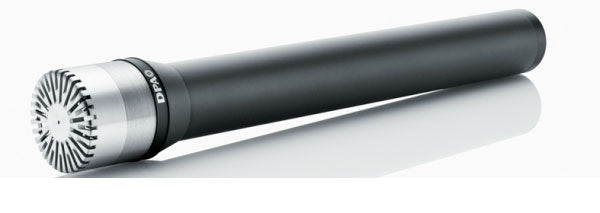

The microphone capsule The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability. This gives the MMC4041 Large Diagram Capsule a unique sensitivity of up to 90 mV/Pa.

The 4041-SP has a frequency response from 10 Hz to 20 kHz with a 4-6 dB soft boost around 8 kHz. Furthermore, the MMC4041 Large Diaphragm Capsule has extremely low self-noise of 7 dB(A) with the MMP4000-S. It also has enhanced SPL handling capability of up to 144 dB SPL before clipping occurs.

The MMC4041 Large Diaphragm Microphone Capsule can be unscrewed from the MMP4000-SP preamplifier, which allows you to exchange the preamplifier.

• Handles high sound pressure levels with no distortion

• Natural and transparent sound

DIRECTIONAL PATTERN:

Omnidirectional

PRINCIPLE OF OPERATION:

Pressure

CARTRIDGE TYPE:

Condenser w. stainless steel diaphragm

FREQUENCY RANGE:

20 Hz - 20 kHz

FREQUENCY RANGE, ±2 DB:

20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz

SENSITIVITY, NOMINAL, ±2 DB AT 250 HZ:

70 mV/Pa; -23 dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

Max. 8 dB(A) re. 20 µPa

EQUIVALENT NOISE LEVEL, ITU-R BS.468-4:

Max. 20 dB

S/N RATIO (A-WEIGHTED), RE. 1 KHZ AT 1 PA (94 DB SPL):

86 dB(A)

TOTAL HARMONIC DISTORTION (THD):

< 0.5% THD up to 120 dB SPL peak, < 1% THD up to 126 dB SPL peak

DYNAMIC RANGE:

Typ. 118 dB

MAX. SPL, PEAK BEFORE CLIPPING:

134 dB

OUTPUT IMPEDANCE:

< 200

CABLE DRIVE CAPABILITY:

Up to 100 m (328 ft)

POWER SUPPLY (FOR FULL PERFORMANCE):

Via external power supply

CURRENT CONSUMPTION:

2.20 mA

CONNECTOR:

3-pin XLR-M (Standard P48)

WEIGHT:

190 g (6.7 oz)

CAPSULE DIAMETER:

24 mm (1 in)

MICROPHONE LENGTH:

170 mm (6.7 in)

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%

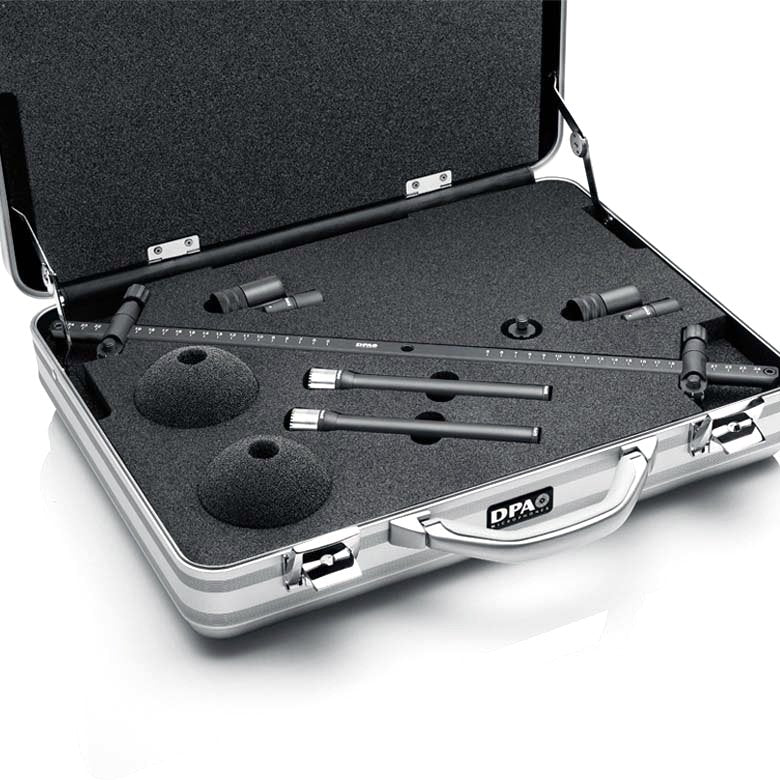

WHAT'S IN THE BOX:

• 2x MMC4041 large diaphragm capsule for MMP4000 (MMC4041)

• 2X MMP4000-SP solid state preamplifier for MMC4041, P48 (MMP4000-SP)

• 2x foam windscreen for d:dicate 4041 (DUA0040)

• 2x microphone holder for d:dicate (UA0961)

• 1x stereo boom for d:dicate (UA0837, UA0836)
