DPA 4018C

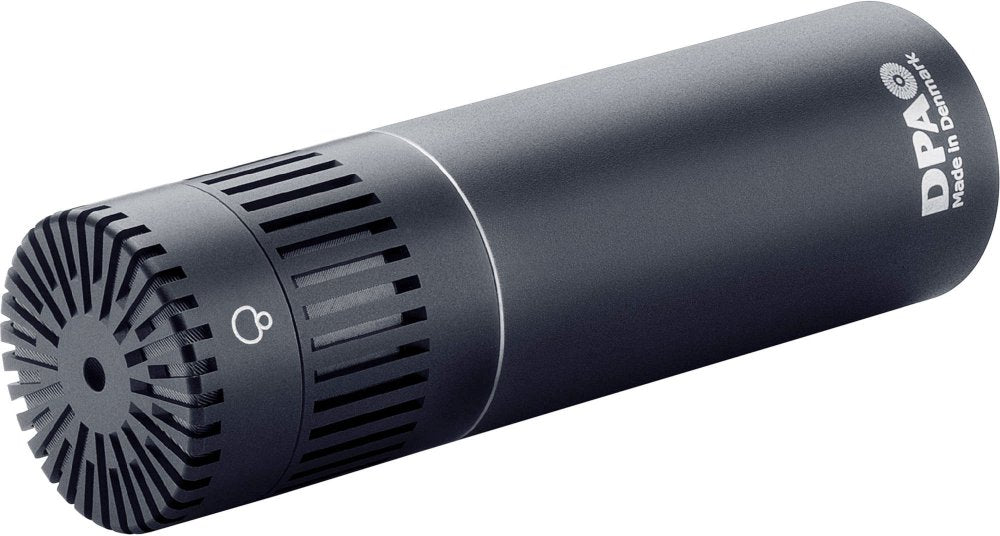

The 4018C Supercardioid Microphone has a length of only 6.4 cm (2.5 in), and a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

This condenser microphone is designed for a broad range of music recording and broadcast/ENG/film long-distance miking applications. It can be used for booming, dialogue, interview and table or spot-recording use. The mic also offers superb expandability through modular accessories. It is ideal for use as spot or hanging mic for orchestra recording situations.

The microphone capsule The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips. A truly flexible rang This mic is part of the flexible d:dicate Microphone Series. At any time, and with no tools needed, it is possible to transform the d:dicate 4018C Supercardioid Microphone into a new configuration. You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier.

• Low noise and high sensitivity

• Highly directional for high isolation

• Most controlled supercardioid shape

• Uniform, frequency independent directionality

• Very sleek and compact boom, table or spot mic

• Modular flexibility

DIRECTIONAL PATTERN:

Supercardioid

PRINCIPLE OF OPERATION:

Pressure gradient

CARTRIDGE TYPE:

Pre-polarized condenser

FREQUENCY RANGE:

20 Hz - 20 kHz

FREQUENCY RANGE, ±2 DB, AT 30 CM (11.8 IN):

40 Hz - 18 kHz

SENSITIVITY, NOMINAL, ±2 DB AT 1 KHZ:

12 mV/Pa; -38.4 dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))

EQUIVALENT NOISE LEVEL, ITU-R BS.468-4:

Typ. 23 dB

S/N RATIO (A-WEIGHTED), RE. 1 KHZ AT 1 PA (94 DB SPL):

Typ. 78 dB(A)

TOTAL HARMONIC DISTORTION (THD):

< 1% up to 137 dB SPL peak

DYNAMIC RANGE:

Typ. 121 dB

MAX. SPL, PEAK BEFORE CLIPPING:

150 dB

OUTPUT IMPEDANCE:

100

MINIMUM LOAD IMPEDANCE:

2 k

CABLE DRIVE CAPABILITY:

100 m (328 ft)

OUTPUT BALANCE PRINCIPLE:

Impedance balancing with Active Drive

COMMON MODE REJECTION RATIO (CMRR):

> 50 dB

POWER SUPPLY (FOR FULL PERFORMANCE):

48 V Phantom power (± 4 V)

CURRENT CONSUMPTION:

2.8 mA

CONNECTOR:

XLR-3M

• Pin 1: shield

• Pin 2: signal + phase

• Pin 3: - phase

COLOR:

Matte black

WEIGHT:

58 g (2 oz)

MICROPHONE DIAMETER:

19 mm (0.75 in)

CAPSULE DIAMETER:

19 mm (0.75 in)

MICROPHONE LENGTH:

64 mm (2.5 in)

MAXIMUM OUTPUT VOLTAGE, RMS:

4.5 V

POLARITY:

+V at pin 2 for positive sound pressure

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%

MATCHING TOLERANCE (FREQUENCY RESPONSE AND SENSITIVITY):

±1 dB

PHASE DEVIATION FOR KIT:

< 10

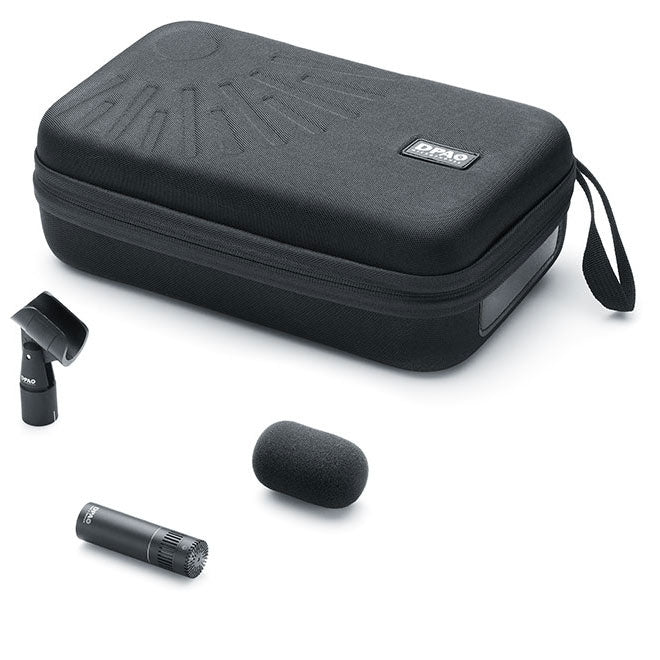

WHAT IS INCLUDED:

• MMC4018 Supercardioid Microphone Capsule (MMC4018)

• MMP-C Compact Microphone Preamp (MMP-C)

• CLIP for d:dicate (UA0639)

• FOAM WINDSCREEN for d:dicate (DUA0020)
