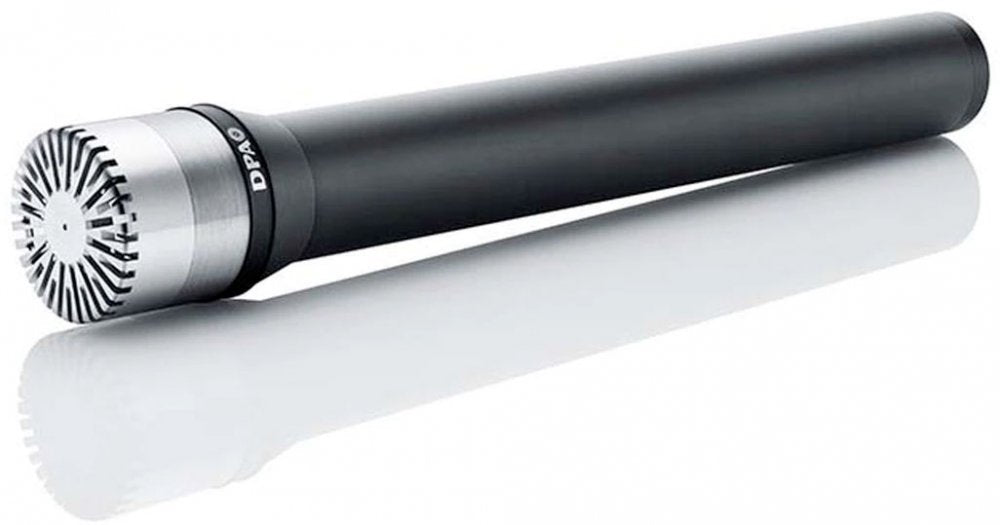

DPA 4041-SP

This omnidirectional condenser microphone is designed to work in a standard 48 V phantom power environment. It features the same MMC4041 Large Diaphragm Capsule.

The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability. This gives the MMC4041 Large Diaphragm Capsule a unique sensitivity of up to 90 mV/Pa.

The 4041-SP has a frequency response from 10 Hz to 20 kHz with a 4-6 dB soft boost around 8 kHz. Furthermore, the MMC4041 Large Diaphragm Capsule has extremely low self-noise of 7 dB(A) with the MMP4000-S. It also has enhanced SPL handling capability of up to 144 dB SPL before clipping occurs.

The MMC4041 Large Diaphragm Microphone Capsule can be unscrewed from the MMP4000-SP preamplifier, which allows you to exchange the preamplifier.

• Handles high sound pressure levels with no distortion

• Natural and transparent sound

DIRECTIONAL CHARACTERISTICS:

Omnidirectional

PRINCIPLE OF OPERATION:

Pressure

CARTRIDGE TYPE 24 MM (1 IN):

condenser with stainless steel diaphragm

FREQUENCY RANGE, ± 2 DB:

20Hz - 20kHz with 4 - 6 dB soft boost at 8 kHz

SENSITIVITY, NOMINAL, ± 2 DB:

70 mV/Pa; -26dB re. 1 V/Pa

EQUIVALENT NOISE LEVEL, A-WEIGHTED:

Max. 8 dB(A) re. 20 µPa

EQUIVALENT NOISE LEVEL, ITU-R BS.468-4:

Max. 20 dB

S/N RATIO, RE. 1 KHZ AT 1 PA (94 DB SPL):

86 dB(A)

TOTAL HARMONIC DISTORTION (THD):

< 0.5% THD up to 120 dB SPL peak, < 1% THD up to 126 dB SPL peak

DYNAMIC RANGE:

Typ. 118 dB

MAX. SPL, PEAK BEFORE CLIPPING:

134 dB

OUTPUT IMPEDANCE:

< 200 Ohm

CABLE DRIVE CAPABILITY:

Up to 100 m (328 ft)

CURRENT CONSUMPTION:

2.20 mA

CONNECTOR:

3-pin XLR-M (Standard P48)

WEIGHT:

190 g (6.7 oz)

CAPSULE DIAMETER:

24 mm (1 in)

LENGTH:

170 mm (6.69 in)

TEMPERATURE RANGE:

-40C to 45C (-40F to 113F)

RELATIVE HUMIDITY (RH):

Up to 90%
